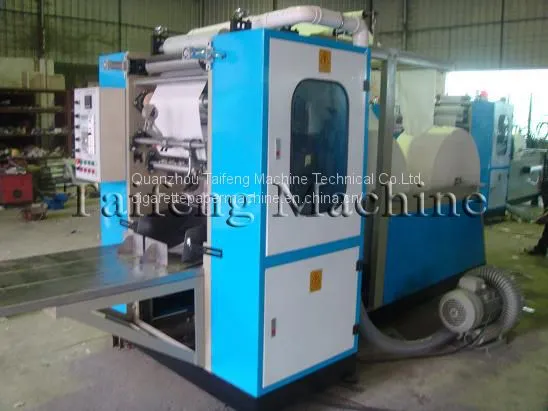

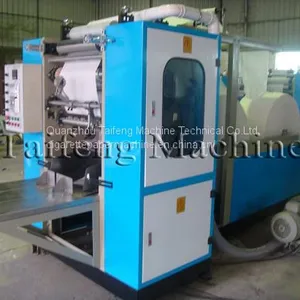

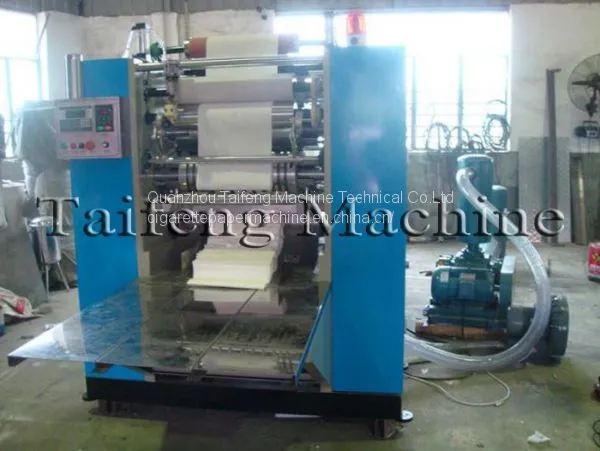

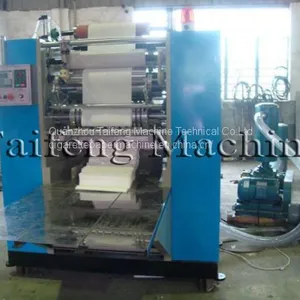

New Automatic Paper Folding Machine Drawing Type Facial Tissue Paper Machine

Name: New Automatic Paper Folding Machine Drawing Type Facial Tissue Paper Machine
Brand: Taifeng Machine
SKU: 157509524

US$ 18000 - 28000 MOQ: 1 Set

Key Specifications

Brand Name:

Taifeng Machine

Place of Origin:

China

Model Number:

TF-CPM-09

Quanzhou Taifeng Machine Technical Co.Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen port

Delivery Detail:

55 days

Brand Name Taifeng Machine

Place of Origin China

Model Number TF-CPM-09

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Warranty 1 year

Weight 1.8T

Dimension(L*W*H) 4.1x1.3x2.1m

Voltage 380 V

Product Type Facial Tissue

Condition New

Power(W) 5.5KW

Processing Type Paper Folding Machine

Function and Character:

Facial Tissue Box Making Machine Paper is conducted by spiral cutting by sections with convenient adjustment in cutting tool

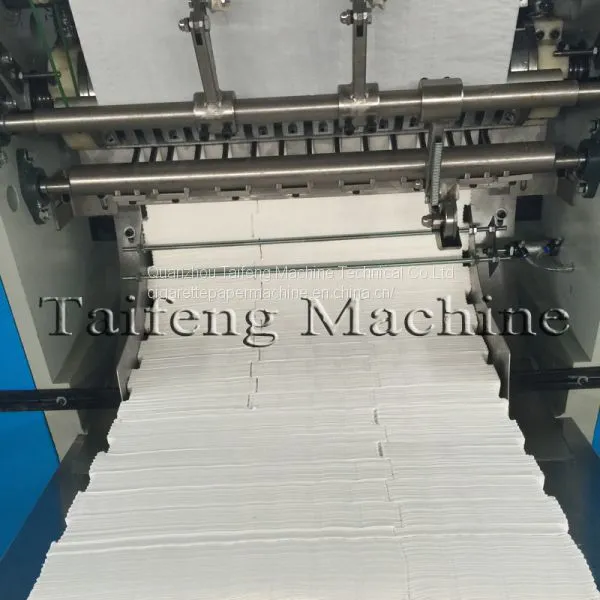

Folding type: V type folding, paper in upper and lower position are jointed and folded with auto counting unit and output in stack, folding with vacuum adsorption. Box-Drawing Facial Tissue Machine,
Unwinding of jumbo roll is pushed a fed by the flat belt, equipped with stepless speed regulator to adjust tension of unwinding.
Slitting width can be adjustable while products are in trim.
It can be equipped with embossment unit as per client‘s requirement
Adopt PLC and frequency speed regulator control by Box-Drawing Face Tissue Machine

Main Technical Specifications:

Model(Lane)	TF-2L
Max raw Paper Roll Width	420mm
Raw Paper Material	12-18g/m x 2layers
Max Raw Paper roll Dia	Standard φ1100mm
Raw Paper Roll Core Dia	3' (76.2mm)
Finished Products Opened Size	(140,150,160-210) x (140-210) (mm)
Finished Products Folded Size	(70-105) x (140-210) (mm)
Operate Speed (sheets/min)	1600
Finished	Production Rate≥98%
Mechanical Driving	Driven by stepless frequency control system
Program Controller	PLC control, Touch Screen
Edge Embossing	Steel to Steel, Independent Adjustment
Slitting Unit	Full Cutting
Lubricating System	Key Parts Regularly Lubricating Automatically
Counting System	Alternate Stack by Stack
Pneumatic System	3HP Air Compressor ,Mini Pressure 5kg/cm2 Pa
Paper Layer	2-3Layer
Raw Paper Roll Core Dia	3' (76.2mm)
Finished Products Opened Size	(140,150,160-210) x (140-210) (mm)
Finished Products Folded Size	(70-105) x (140-210) (mm)
Operate Speed (sheets/min)	1600
Finished	Production Rate≥98%
Lubricating System	Key Parts Regularly Lubricating Automatically
Vacuum System	5.5kw
Main Power	2.2kw
Machine Size(m)	4.1x1.3x2.1
Weight(ton)	1.8T
