Four Column Automatic Hydraulic Deep Drawing Press Machine
- T/T
You May Like
-
3kg 5kg 10kg 15kg 20kg Mineral Salt Block Making Hydraulic Press Machine
-
315 Ton Hydraulic Press Wheelbarrow Making Machine for Russia Alegeria
-
TP100T 120T 160T 200T Forklift Solid Tire Press Machine for Industrial and OTR Solid Tyre
-
315T 500T 800T 1000T Cattle Cow Licking Salt Mineral Nutrition Block Making Machine
Product Details
| Place of Origin | China | Certification | ISO, CE,SGS | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 year | |
| Condition | New | CNC or Not | Normal | |
| Power Source | Hydraulic |
Product Description

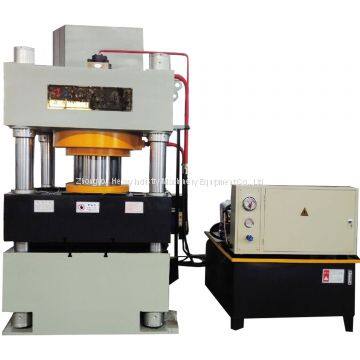

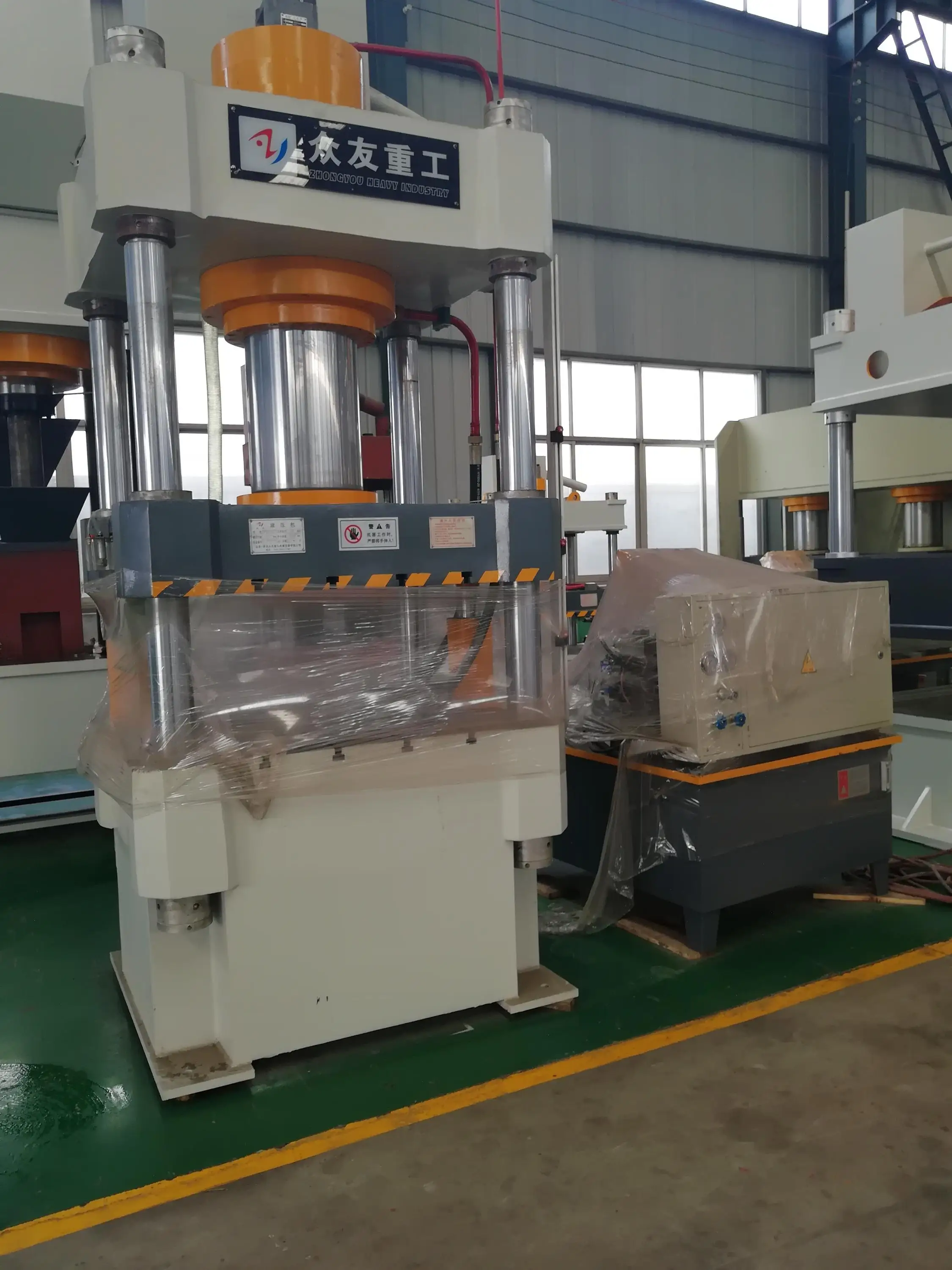

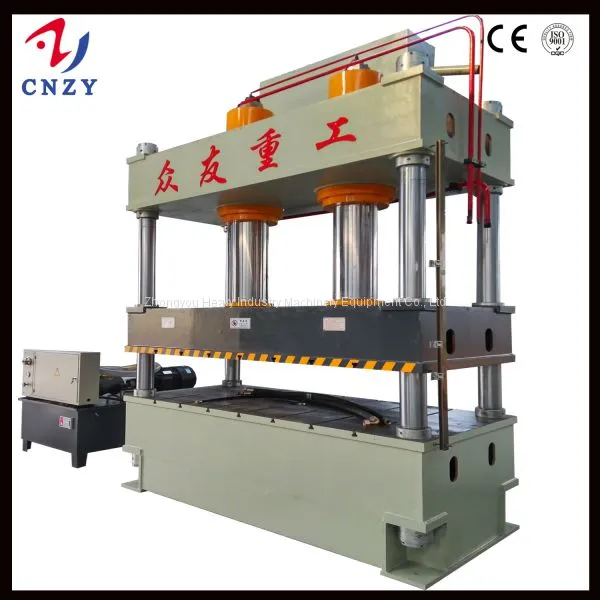

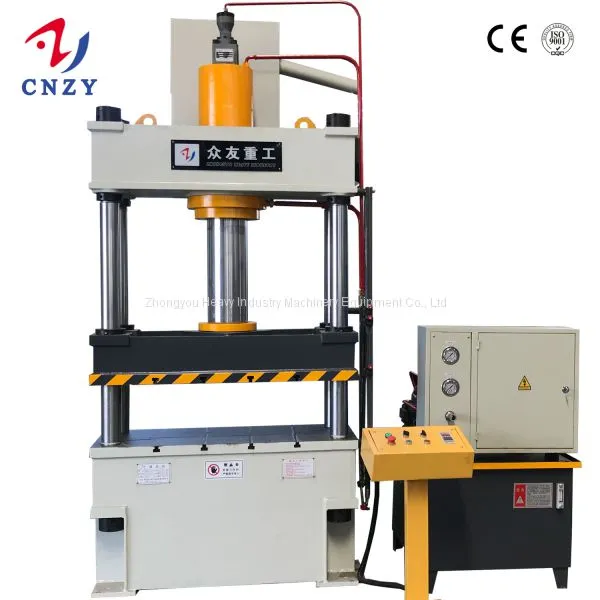

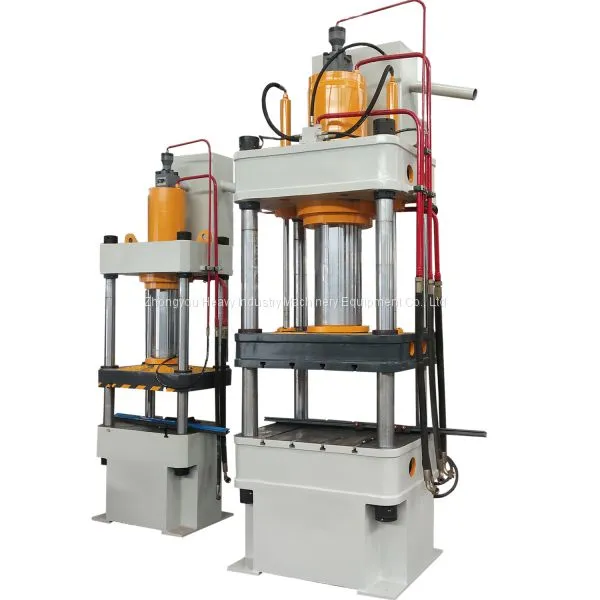

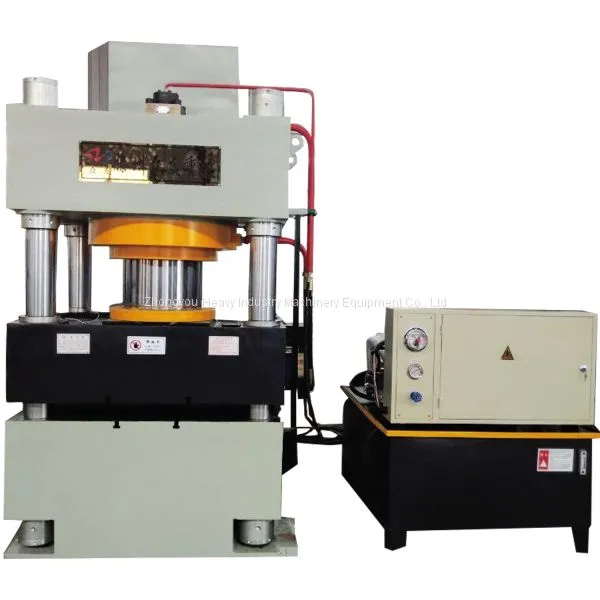

Four column type deep drawing hydraulic press machine
1.This series four column hydraulic press is simple, economic and good capability.
2.Independent drive structure and electrical device insure reliable operation with centered control buttons.
3.This hydraulic press machine is suitable for metal pressing, such as sheet forming, sheet metal deep drawing,sheet metal stamping etc. It can also be used for straightening, press in, and plastic molding.
4.This hydraulic press machine has two kinds of electric apparatus control system with PLC which has three operation modes: manual, semi-automatic and automatic. It has pressure hold and time delay functions while pressing shape.
Parameters for Automatic Four column type deep drawing hydraulic press machine
| Parameters | Unit | YQ32-63 | YQ32-100 | YQ32-160 | YQ32-200 |
| Nominal Force | Kn | 630 | 1000 | 1600 | 2000 |
| Systerm Pressure | Mpa | 25 | 25 | 25 | 25 |
| Max Opening Height | mm | 500 | 800 | 900 | 1200 |
| Stroke | mm | 360 | 500 | 600 | 700 |
| bed size | mm | 410X450 | 630X550 | 600X600 | 1000X1000 |
| upper ejection cylinder force | Kn | 100 | 200 | 400 | 400 |
| stroke of ejection cylinder | mm | 160 | 200 | 200 | 220 |
| slider descending speed | mm/s | 100 | 100 | 100 | 100 |
| slider press speed | mm/s | 5-10 | 5-10 | 5-10 | 5-10 |
| slider return speed | mm/s | 90 | 90 | 90 | 90 |
All the parameters of Four Column hydraulic press machine can be customized

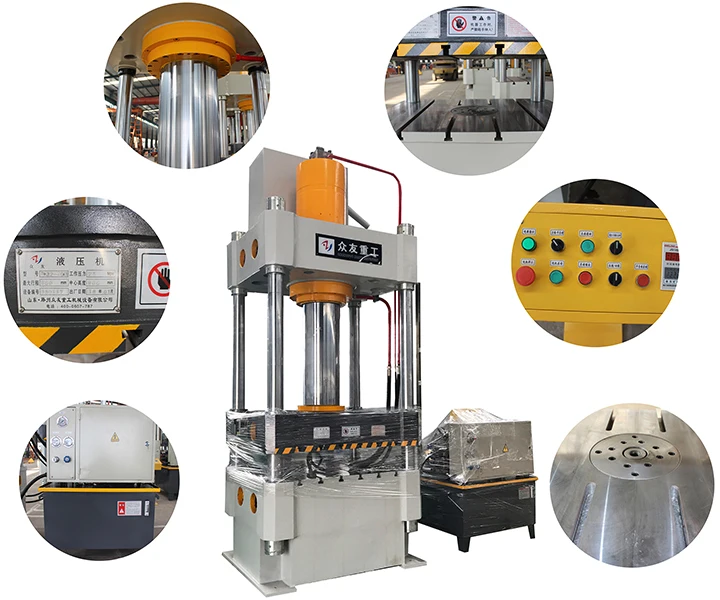

1. The four-column structure is economical and practical.
2. The liquid control adopts an integrated cartridge valve integrated system, which reduces the leakage point, ensures reliable operation and long service life.
3. The machine can realize two forming processes of constant pressure and fixed stroke, and has adjustable pressure delay time.
4. The working pressure and stroke can be adjusted within the specified range.
5. The machine adopts centralized control of buttons and has three operation modes: adjustment, manual and semi-automatic.
YQ32 Series Four Column Hydraulic press Machine is is applicate to all drawing, blanking, forming process, especially in the following areas: all kinds of containers, all kinds of automobile covering parts, electric parts, kitchen utensils, tractor, motorcycle, aerospace,aviation,electronics, instrumentation, plastic,rubber,chemical and other industrial departments.
Zhongyou Heavy Industry Machinery Equipment Co;Ltd
-----Professional to create a leading brand of Four Column Hydraulic Press Machine with 16 years of accumulated experience
Our Service for Four Column hydraulic press Machine
Pre-sales Service
1. Inquiry and consulting support.
2. Sample testing support .
3. Recommend the most suitable machine according to customer's purpose.
4. Factory visiting welcomed.
After-sales Service
1. Training how to install the machine .
2. Training how to use the machine .
3. Warranty 1 year.
4. Engineers available to service machinery oversea .


Any inquiry about Four column hydraulic press machine, C frame presses, H frame presses and other special press machine, please contact Caroline as below.
