Single Deflection Slot Linear Diffuser Air Register Hvac System
US$ 3 - 10
/ Piece
1 Piece(Min. Order)
- SHENZHEN
- T/T L/C
You May Like
-
Adjustable Air Supply Double Deflection Grille Air Diffuser Factory
-
Aluminum Double Deflection Supply Register
-
Aluminum Double Deflection Supply Register China Supplier
-
Aluminum Double Deflection Supply Register Hvac System
-
Aluminum Double Deflection Supply Register Factory
-
Aluminum Double Deflection Supply Register Price
Product Details
| Brand Name | Ventech | Place of Origin | China | |
| Model Number | SGD-VA | Type | HVAC Systems |
Product Description
single deflection slot linear diffuser air register hvac system
1.Description:
Single deflection air grille can adjust up and down of the air direction. Return air outlet can be used with filter. The blade angle can be adjusted.

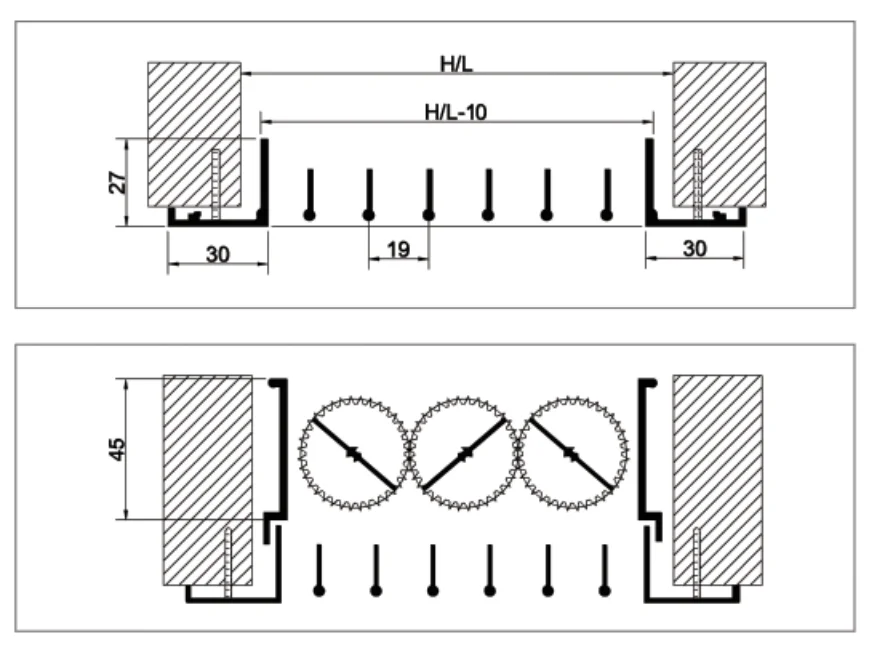

2.Structure:
3.Selection table
| Standard size H/L(mm) | Effective Area (m2) | Air volume(m3/h) |
| 200*100 | 0.016 | 158 |
| 200*150 | 0.024 | 213 |
| 250*100 | 0.020 | 183 |
| 250*150 | 0.030 | 267 |
| 300*150 | 0.036 | 321 |
| 300*200 | 0.048 | 468 |
| 200*250 | 0.099 | 896 |
| 600*300 | 0.165 | 1489 |
| 750*300 | 0.198 | 1890 |
| 1000*500 | 0.386 | 3615 |
4.Features:
*Made of high quality extruded aluminum profile
*Blades are movable on horizontal or vertical lines
*Mounting by screws or spring clips
*Opposed Blade Damper optional
*Color RAL9010,RAL9016
5.Accessories:
Opposed blade damper : Air volume flow can be adjusted with turning the screwdriver
