Aluminum Double Deflection Supply Register Manufacturer
US$ 3 - 10
/ Piece
1 Piece(Min. Order)
- SHENZHEN
- T/T L/C
You May Like
Product Details
| Brand Name | Ventech | Place of Origin | China | |
| Model Number | DDG-VA | Type | HVAC Systems |
Product Description

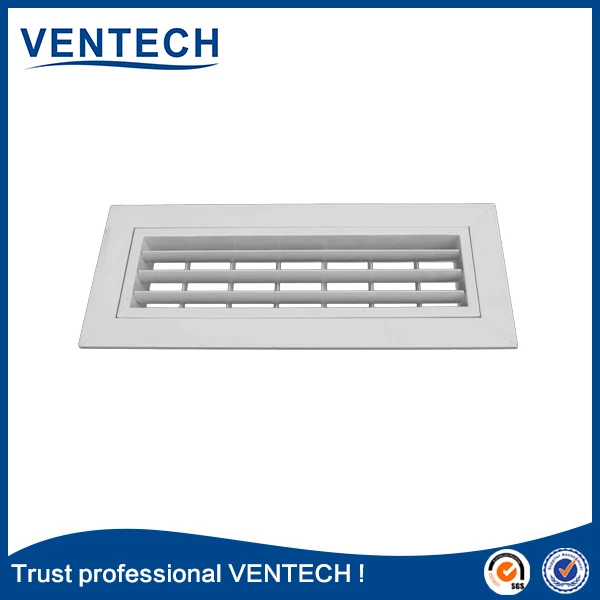

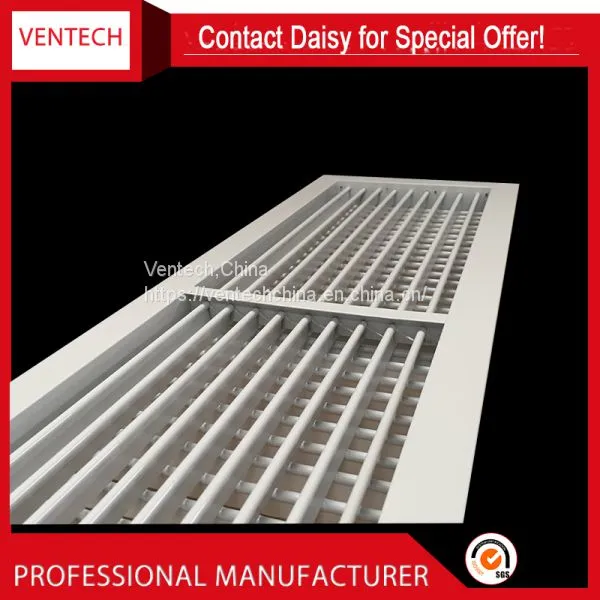

aluminum double deflection supply register manufacturer
Features:
*Made of high quality extruded aluminum profile
*Blades are movable on horizontal and vertical lines
*Removable core design
*Mounting by screws or spring clips
*Opposed Blade Damper optional
*Color RAL9010,RAL9016

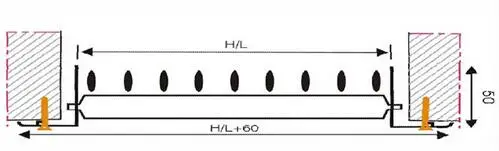

Structure
AVAILABLE SIZES:
Unit Size is determined by duct dimensions. Diffuser necks are undersized to suit ductwork.
selection table:
| Standard size H/L(mm) | Effective Area(m2) | Air volume(m3/h) |
| 200*100 | 0.013 | 150 |
| 200*150 | 0.020 | 200 |
| 250*100 | 0.017 | 160 |
| 250*150 | 0.025 | 250 |
| 300*150 | 0.030 | 300 |
| 300*200 | 0.040 | 450 |
| 500*250 | 0.090 | 810 |
| 600*300 | 0.149 | 1400 |
| 750*300 | 0.185 | 1800 |
| 1000*500 | 0.373 | 3500 |
Assumed air velocity is 2.5m/s
