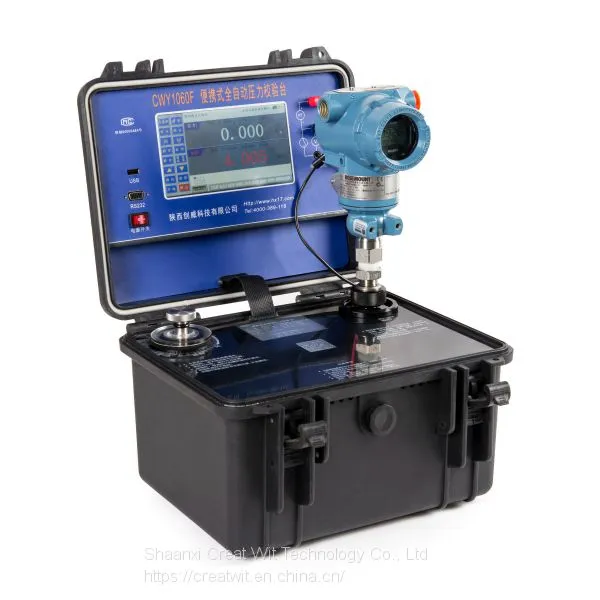

Help CenterHydraulic Automatic Pressure Calibrator
Related Products
Categories:
l Internal pressure module hydraulic automatic pressure calibration stand
l External pressure module hydraulic automatic pressure calibration stand
l Bench pressure module hydraulic automatic pressure calibration stand
Applications:
1. pressure test automatically.
2. maintenance and service facilities.
Specification:
l Model: CWY1006C/D, CWY1060C/D
l Measuring range: (-0.1-2.5)MPa, (-10-10)kPa, (0-60)MPa
l Pressure accuracy: 0.02% F.S or 0.05% F.S
l Current accuracy: 0.02% or 0.05%
l Pressure control accuracy:±5
l Standard evaluated point: 0%, 25%, 50%, 75%, 100%, automatic return. It can be arbitrarily set connected with computer.
l Customized verification point: any point.
l Verification point automatic stabilization time: 20s, adjustable within (10 ~ 240)s
l Current input: (1 ~ 2) input, (0 ~ 22) mA
l Switch input: dry contact, it can detect contact resistances.
l Loop power supply: DC24V/30mA, which does not damage the standard gauge if it is incorrectly connected.
l Power supply: 220V/50Hz
l Standard evaluated point: 0%, 25%, 50%, 75%, 100%, automatic return. It can be arbitrarily set connected with computer. Customized verification point: any point.
l Verification point automatic stabilization time: 20s, adjustable within (10 ~ 240)s
l Overall time of the transmitter automatic verification ( steady after 9 points ): about 5 minutes
l Internal pressure module measuring range:（3～60）MPa
l Customized verification range:intervals within （3～60）MPa
l Units:MPa
l Display precision: 5 digits
l Pressure interface: M20*1.5 female thread quick connector
l Current/voltage interface: Φ 4 standard banana plug
l Sewage outlet: inner diameter : Φ 6 mm
l Weight: 19kg
l Dimension: 530（L）*300（W）*300（H）mm
Features:
l Medium: transformer oil or purified water. For verification, no external pressure source is required, no air exhaust is required .
l Pressure switch verification time: about 2 minutes.
l HART function
l Security protection: overpressure, overcurrent, sensor failure, etc
l Automatic verification software: optional
l External standard gauge connection
