Decorative stainless steel sheet vacuum plating machine(LH-)
| DETAILED DESCRIPTION |
The machine can get all kinds of color on stainless steel products,we can make machine Diameter from 800mm until 3200mm, height from 800mm until 7200mm, it suitable for coating all small parts,stainless steel sheet, stainless steel pipe,stainless steel counter,stainless steel connection.sainless steel chair. In China. 95% of Foshan stainless steel market are using our machine to decorative coating. We already exporting this machine to Korea,Thailand,Indonesia,singapore,Turkey,Dubai,Egypt and other more countries. We can do turnkey project for customers including all stainless steel surface treatment: 8K mirror,No.4. Hairline,etching,PVD,anto-finger coating and plastic lamintor line.
This is an ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate , great ionization rate, big ion energy,easy operation, low cost, large productive capacity, etc. The principle of vacuum electric arc ion coating is intergrating cold cathode, arc discharge Self-sustained light, ionization plating material with pulse technique to improve depostion particle energy and survival rate and the properties of the film. It can coat on the surface of the metal as well as nonmetal
| APPLICATION |
Imitation gold series: TiN, ZrN, TiN+Au, ZrN+Au
Rose Gold Series: TiCN, TiAlN, TiCN+Au--Cu, TiAlN+Au, Cu
Silver white series: CrN, CrSiN, Zr (micro N)
Grey series: Ti, stainless steel (S.S), (S.S) N
Coffee color series: TiCN, TiAlCN, ZrC
Blue series: TiO, CrO, TiALN
Black Series: TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C,O) and DLC
Stainless steel sheets size(2 pieces per cycle,3 pieces per cycle,4 pieces per cycle,6 Pieces per cycle)
size: 4" x 8" (1219mm x 2438mm) size: 4" x 10" (1219mm x 3048mm) size: 5" x 10" (1523mm x 3048mm) size (1500mm*4000mm) or More Longer.
Stainless steel Accessories,Including Stair,Hotel trolley,chair,table,Dishes,spoons,bowls,coffee cup,teapot and others,Biggest size can load Daimeter2000*Height3500mm
Stainless steel tubes:6 Meters Long Diameter upto 127mm.
| TECHNICAL DATA |
| Mode | LH-1618 | LH-2832 | LH-2070 |
| Dimension | D1600*H1800mm | D2800*H3200mm | D2000*H7000mm |
|
Coating mode and main confirguration |
Eighteen arc targets | Twenty two arc targets | Thirty two arc targets |
| Power source | Electric-arc power, Filament power, Pulsed bias power supply | ||
| Process gas control | Mass flowmeter + Electromagnetic ceramic valve | ||
|
Vacuum chamber structure |
Vertical top opening door or Horizontal open front door, pump system postposition, double water cooling | ||
| Vacuum system | Diffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa) | ||
| Workpiece baking temperature | Normal temperature to 350 centi-degree PID control, radiation heating. | ||
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute | ||
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa | ||
| Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode | ||
| Remark | We can design the dimension of the equipment according to customer’s special technique requirement. | ||
| MACHINE PHOTOS |

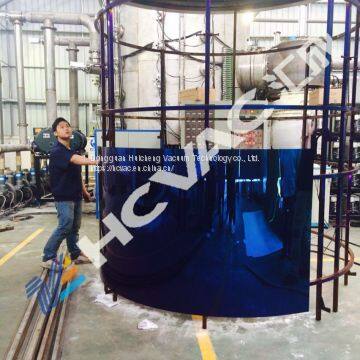

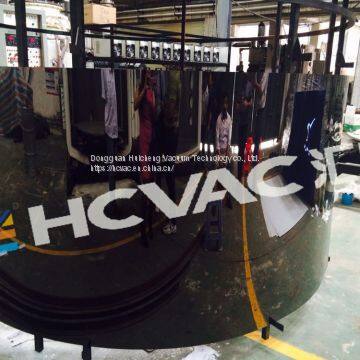

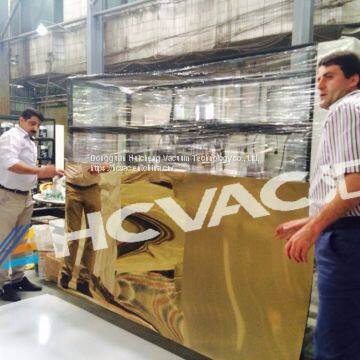

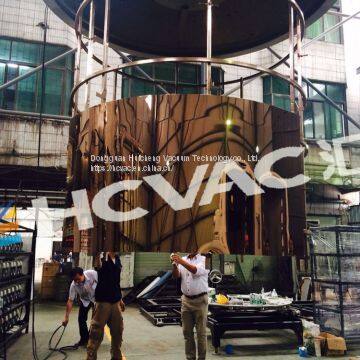

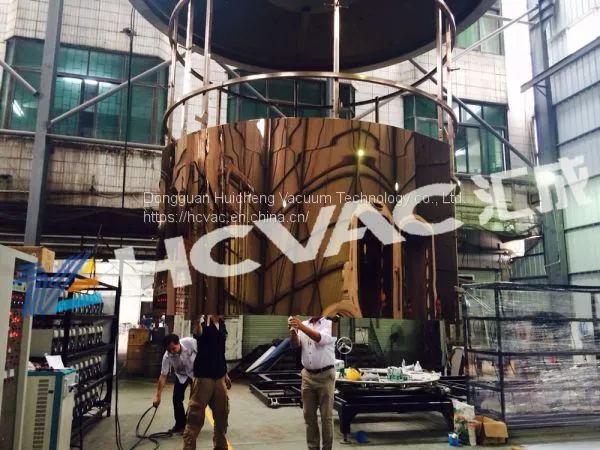

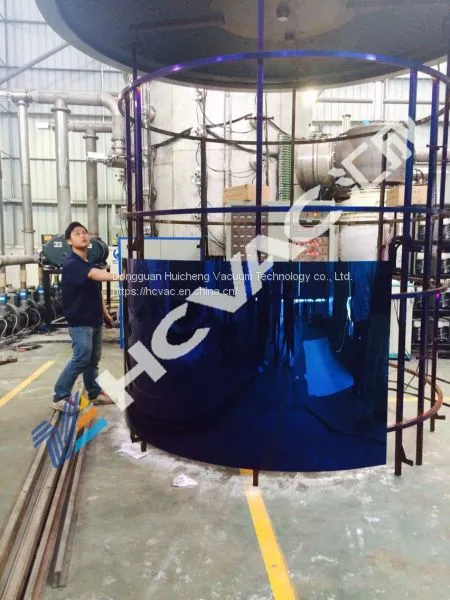

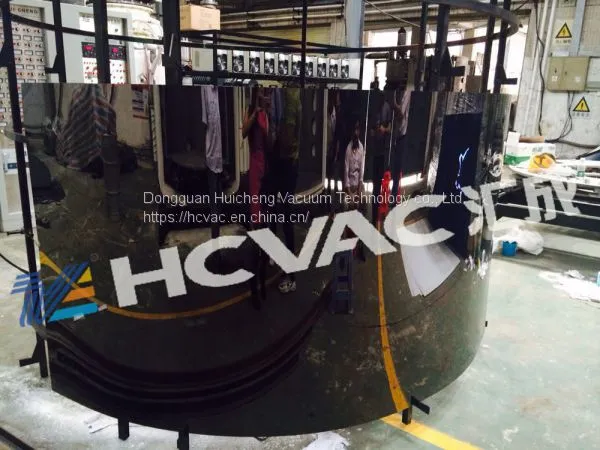

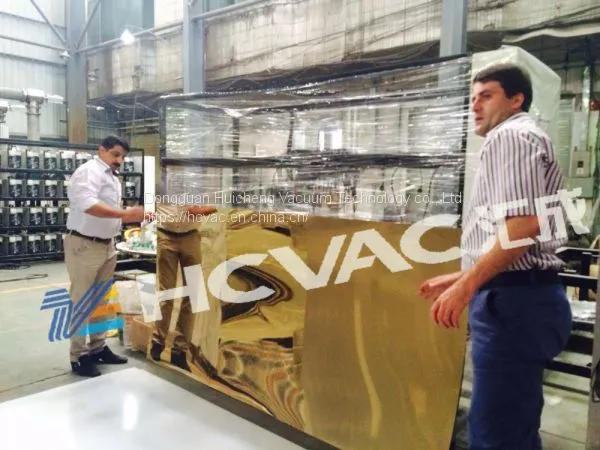

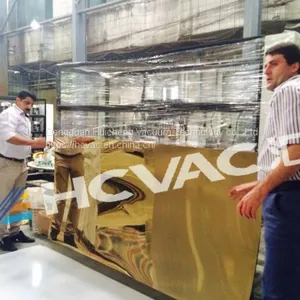

| COATED SAMPLE PHOTOS |
| ABOUT HCVAC |
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
Easy to implement: To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: stripping (depending on the part’s history); pre-treatment; quality control; cleaning & drying; fixturing & visual inspection; PVD coating; quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
| HCVAC HONOR |
| PHOTO WITH CLIENTS & SUCCESSFUL CASE |
For more information, please feel free to contact us or visit our website: !
