1. Characteristics of XYC-200 vehicle-mounted drilling rig

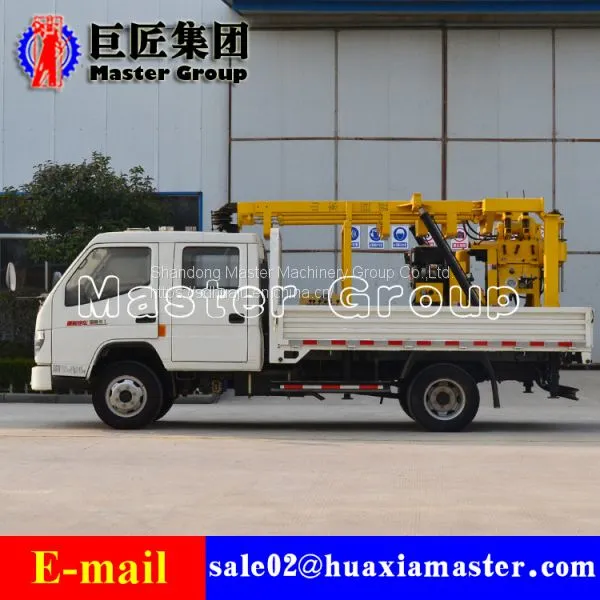

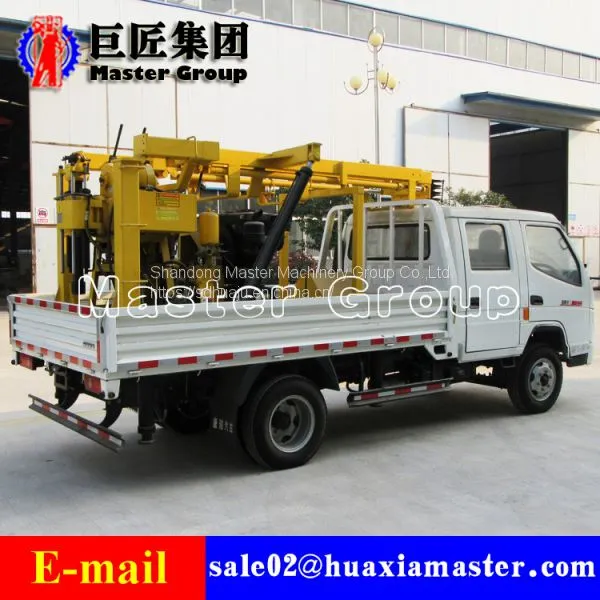

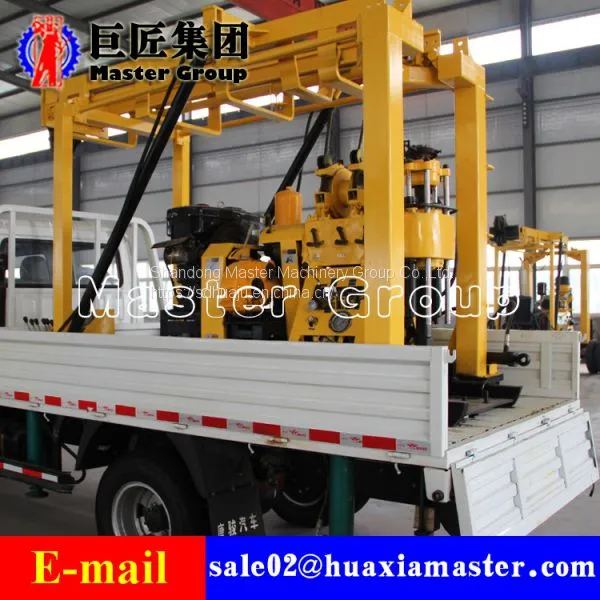

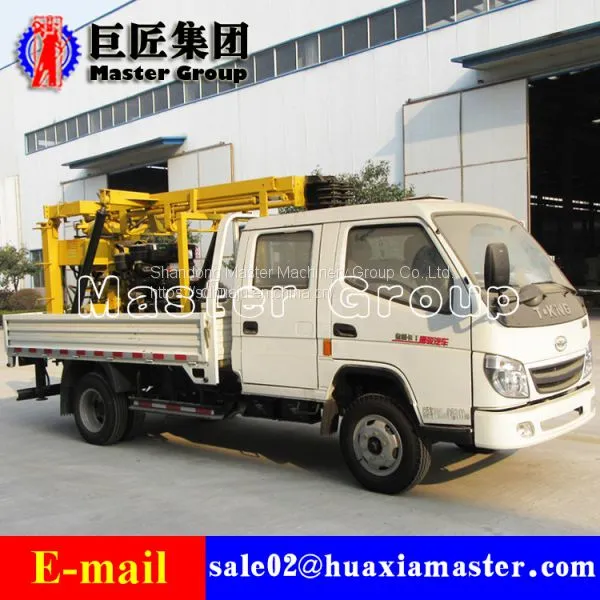

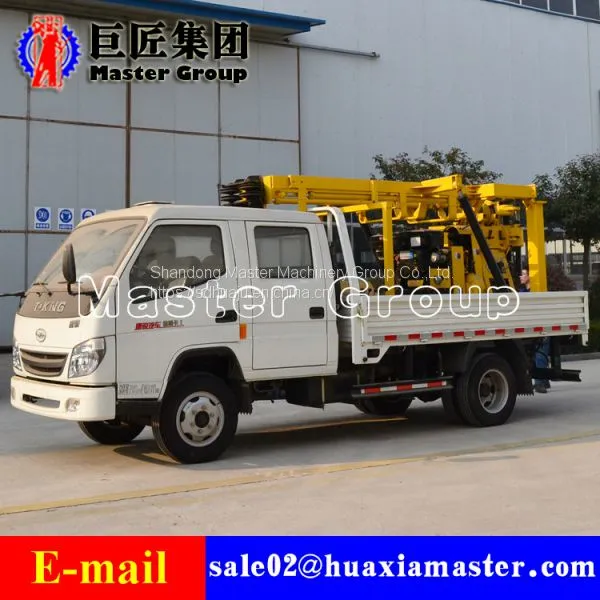

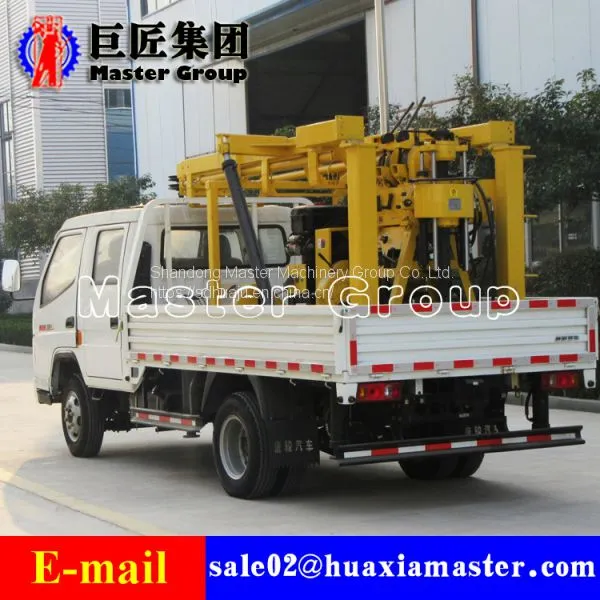

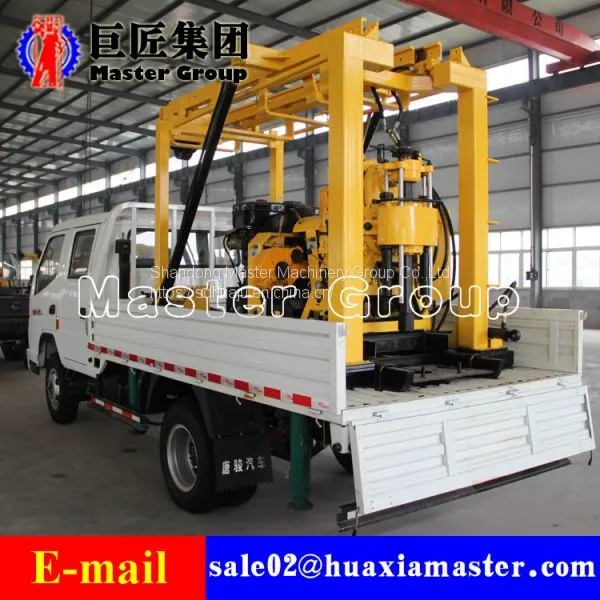

XYC-200 is a multi-function hydraulic vehicle-mounted rotary drilling rig.
the Tang Jun automobile chassis chassis, transmission system and rig winch, mud pump and other important accessories installed in the chassis. the layout is reasonable, compact, and easy to operate.
It is equipped with high pressure,big flow BW160mudpump,which can ensure drilling depth and diameter.
the rig has shifting device, it can move on the vehicle and is convenient to operate while drilling.
the hydraulic folding mast is safe and convenient to transport
2.Applicatins of XYC-200 drilling rig
road and high-rise building foundation exploration
all kinds of concrete structure inspection holes
river embankments
subgrade grouting holes
drilling and direct grouting
civil water well
ground temperature central air conditioners.
3. Parameters of XYC-200 vehicular drilling rig
XYC-200 vehicular drilling rig | |||
Drilling depth(m) |
30-200 |
||
Drilling diameter(mm) |
300-75 |
||
Drilling Angel(mm) |
90-75 |
||
Spindle rotating speed(r/min) |
64/128/287/557 |
||
Spindle stroke(mm) |
450 |
||
|
Main hoisting capacity (single line)(Kg) |
1600 |
||
|
Main hoisting line capacity (m) |
35 |
||
Hoisting speed(r/s) |
17/35/75/151 |
||
Wireline diameter(mm) |
12.5 |
||
Mast height(mm) |
7000 |
||
Mast effective height(mm) |
6500 |
||
Kelly/active pipe(mm) |
59*53 |
||
Drill rod(mm) |
42/50/60 |
||
Drill rig weight(kg) |
1150 |
||
Power Unit |
Model |
ZS1115 diesel engine |
|
Rated power |
14.7kw/2200rpm |
||
|
BW-160 mud pump |
Rated flow(l/min) |
160 |
|
Rated pressure(mpa) |
1.3 |
||
Driving power(kw) |
5.15 |
||
|
Main machine weight (kg) |
190 |
||
Dimension(mm) |
1110*725*965 |
||
|
Chassis
|
Model |
95hp light truck The 3.3 meter steeplechase double light card |
|
Drive mode |
4*2 |
||
|
Power unit |
Model |
Quanchai 4B2-95C40 |
|
Emission standard |
GB3847-2005,GB17691-2005Ⅳ |
||
Rated power(kw) |
70 |
||
Rotating speed(r/min) |
3200 |
||
