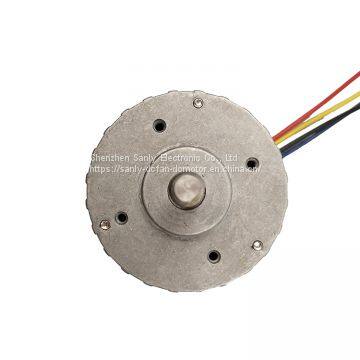

5852 Series electrical brushless 12v boat fan bldc dc motor
The high speed DC motors are widely used for small toy cars. You can use the micro motors to make model cars, boats, DIY, quite easy and convenient.
Technical Parameter
Rated Voltage: DC 12V
No-load Speed: 3000 RPM
Rotation Direction: CW / CCW
Output Shaft Length: 22mm
Motor Dimension: 52.6mm x 58mm (H * Dia)
Operational Temperature: -10C ~ +60C
Weight: 890g
Feature:
Low noise, high speed, high efficiency, low resistance.
Widely use for toys DIY, Massage device, game device, game controller, cellphone etc.
Replacement spare part and give your RC airplane a new lease of life.
Series |
5852 |
Weight |
890g |
||||
Bearing |
Ball bearing |
Power Cord |
24AWG2468 |
||||
Insulation Grade |
Class B |
Protection Grade |
IP44/IP45 |
||||
Operating Temperature |
-10℃ ~ 60℃ |
Life Expectancy |
40000-50000h |
||||
Rated |
Operating Voltage Range |
Rated Current |
Rated input power |
Speed |
Noise |
||
Model |
Function |
VDC |
VDC |
Amp |
Watt |
R.P.M |
dB-A |
SF5852BM |
FG/PWM |
12 |
6to13.5 |
0.30 |
3.60 |
3000 |
34.0 |
SF5852BH |
FG/PWM |
12 |
6to13.5 |
0.40 |
4.80 |
4000 |
39.0 |
SF5852BM |
FG/PWM |
24 |
18to25.5 |
0.20 |
4.80 |
3000 |
34.0 |
SF5852BH |
FG/PWM |
24 |
18to25.5 |
0.30 |
7.20 |
4000 |
39.0 |
