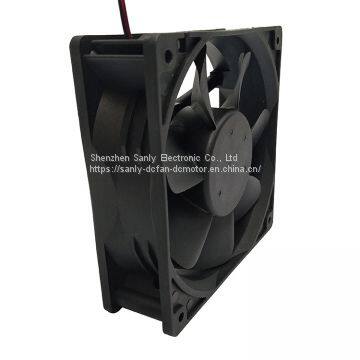

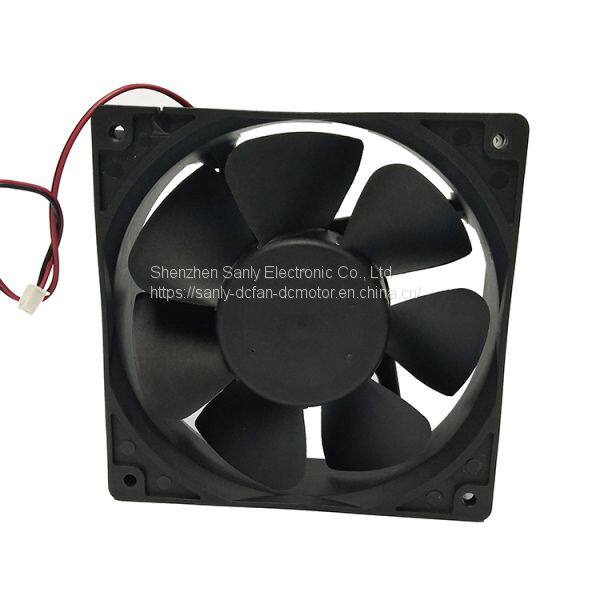

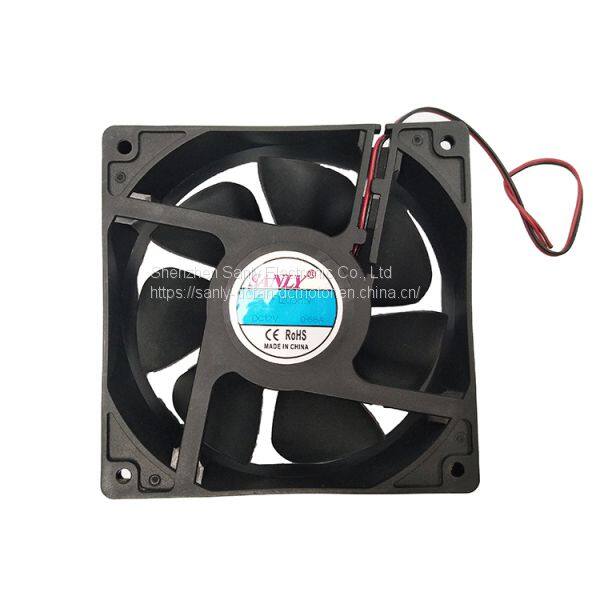

120x120x38mm dc cooling axial flow fan
Specifications
Series |
12038 |
Weight |
270g |
||||||||
Bearing |
Sleeve/Ball bearing |
Power Cord |
22AWG2468 |
||||||||
Insulation Grade |
Class B |
Protection Grade |
IP44/IP45 |
||||||||
Operating Temperature |
-10℃ ~ 60℃ |
Life Expectancy |
15000-50000h |
||||||||
Rated |
Operating Voltage Range |
Rated Current |
Rated input power |
Speed |
Maximum |
Maximum |
Noise |
||||
Model |
Function |
VDC |
VDC |
Amp |
Watt |
R.P.M |
m3/min |
CFM |
mmH2O |
INH2O |
dB-A |
SF12038S/BL |
FG/PWM/RD |
12 |
6to13.5 |
0.15 |
1.80 |
1500 |
1.49 |
52.81 |
2.84 |
0.11 |
32.80 |
SF12038S/BM |
FG/PWM/RD |
12 |
6to13.5 |
0.25 |
3.00 |
2000 |
1.97 |
69.70 |
4.01 |
0.15 |
39.10 |
SF12038S/BH |
FG/PWM/RD |
12 |
6to13.5 |
0.30 |
3.60 |
2500 |
2.77 |
97.91 |
7.62 |
0.30 |
43.90 |
SF12038S/BL |
FG/PWM/RD |
24 |
15to25.5 |
0.12 |
2.88 |
1500 |
1.49 |
52.81 |
2.84 |
0.11 |
32.80 |
SF12038S/BM |
FG/PWM/RD |
24 |
15to25.5 |
0.20 |
4.80 |
2000 |
1.97 |
69.70 |
4.01 |
0.15 |
39.10 |
SF12038S/BH |
FG/PWM/RD |
24 |
15to25.5 |
0.25 |
6.00 |
2500 |
2.77 |
97.91 |
7.62 |
0.30 |
43.90 |
Packing & Shipment
PACKING
Standard export packing or packing based on customer's requirements.
SHIPMENT
1. By Express: DHL, FEDEX, UPS, TNT, SF EXPRESS and China Post, China Small Package, etc.
2. By Air: We can ship from Shenzhen.
3. By Sea: EXW/FOB Shenzhen, CIF your convenient destination all are acceptable.
Company Information
Shenzhen Sanly Electronic Co, .Ltd.
Established in 1998 in Shenzhen, has been designing, producing and marketing high-performance DC brushless motor and cooling fans for over 20 years. SANLY, an ISO certified company, designs and manufacturers sealed DC brush and brushless motor electric cooling fans and blowers for industrial, conmercial and home appliance markets. Our products are mainly used for cooling radiators and for ventilation. Additionally, we offer many of our OEM-quality fans and motors.
Under the correct guidance of the company leadership and the joint efforts of all staff, our technology and products got continuing innovation. Production capacity reach to 10 million pcs, with stable and reliable product quality. Our products not only hot selling in China, but also win good reputation in the market of America, Europe and other countries.
We produce DC Motors, DC Blowers, Centrifugal Fans, Axial DC Fans, Frameless Fans, Cross Flow Fans. Our products satisfied clients well with their good functions, such as temperature control, manual speed control, PWM speed control, low/high speed, Anti-dust, Anti-moisture, lock protection.
Our Services
1. Warranty: one year warranty for all products.
2. Private Label: All products are able to be Private labeled.
3. Delivery time: Normally lead time is 25 days.
4. Products quality: 100% products inspection before delivery.
5. Customized product and cooling products is provided as customer request.
l Help us to provide preferably product fans for you:
l Fan Type, Centrifugal Fan, Centrifugal Fan Blower, Axial fan, Cross Flow Fan, Frameless Fan
l Case Size (Dimensions)
l Speed
l Air Flow
l Noise
l Rating Voltage, 3V/5V/12V/24V....
l Bearing, Sleeve/Ball
l Wire, 2 lead wires/3 lead wires/4 lead wires
l Wire Length
l Connector or not
l Target Price
