Help CenterYokogawa EJA510 EJA 530 Absolute Pressure Transmitters
Related Products
-
EJA 110A Cheap Differential Pressure TransmittersUS$ 442 - 700MOQ: 1 Piece -
EJAcheap Differential Pressure TransmittersUS$ 442 - 700MOQ: 1 Piece
-
3051 Rosemount Smart Pressure TransmitterUS$ 428 - 665MOQ: 1 Piece
-
Micro Smart Weight Load SensorUS$ 35 - 321MOQ: 1 Piece
-
Low Cost 4-20mA Air Water Oil Pressure SensorUS$ 22 - 35MOQ: 1 Piece

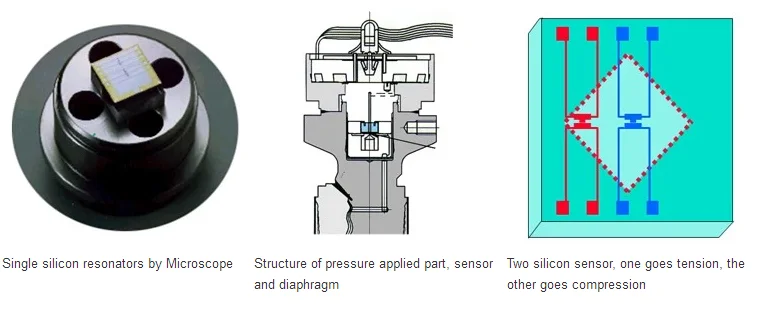

Yokogawa EJA Series transmitter firstly released in 1991, more than 4.5 million sets working worldwide. its DPharp digital sensor uses two single crystal silicon resonators vibrating at their natural frequencies. When pressure is applied, one of the resonators goes into tension, while the other goes into compression mode. It also has the unique ability to simultaneously measure static pressure and differential pressure.Additionally capsule and housing temperatures are also measured.

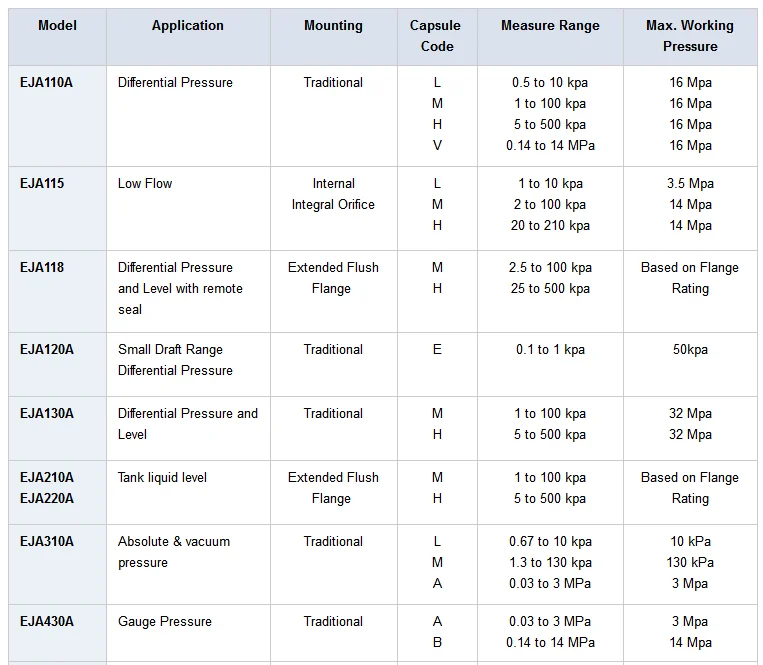

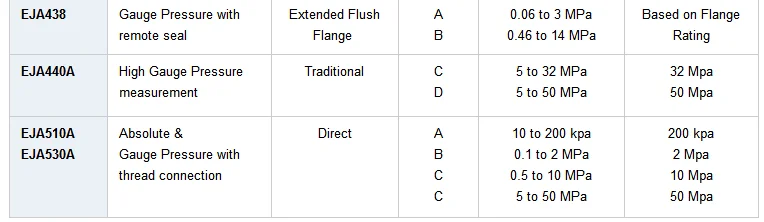

Selection Guide for Yokogawa EJA-A Pressure Transmitter
EJA510A Yokogawa pressure transimitter is direct mounted by thread connection, used to measure absolute(vacuum) pressure of liquid, gas, or steam. It outputs a 4 to 20 mA DC signal liner to the measured pressure.
