Product Description of low cost 0-5v liquid pressure transducer

Silicon Pressure transmitter is a series pressure transmitter of our standard transmitter.
Imported silicon chip assembly, reflecting a world-class pressure transmitter technology.
Compact, rugged. Light weight, easy to install. Easy to use. Maintenance-free. Zero
outside the range can be continuously adjusted, a wide range of migration. Suitable
for a variety of occasions in harsh environments and corrosive media.

Product Features low cost 0-5v liquid pressure transducer

1.DigitalASIC, accuracy and stability
2.Drift affect small
3.Excellent long-term stability
4.Excellent anti-jamming capability
5.Overvoltage overcurrent protection, reverse polarity protection
6.Excellent selection of imported sensors core

Product show low cost 0-5v liquid pressure transducer

Parameters low cost 0-5v liquid pressure transducer

1.Measuring media: oil, water, gas and other media compatible with 316L stainless steel
2.Sensor: silicon sensor
3.Range:  -0.1-100MPa
3.Pressure: 2 times the range (10MPa or less, more may contact);

                   1.5 times the range(10MPa or more, higher may contact)
4.Accuracy: ± 0.25% FS
5.Nonlinear: <± 0.2% FS
6.Hysteresis and repeatability: ≤ ± 0.1% FS
7.Long-term stability: ≤ ± 0.1% FS / year
8.Zero drift: ≤ ± 0.02% FS / ℃
9.Response time: ≤500ms (standard)
Electrical parameters low cost 0-5v liquid pressure transducer:
1.Output: current 2-wire: 4 ~ 20mA
2.3-wire voltage: 0 ~ 5V; 0 ~ 10V; 1 ~ 5V; 1 ~ 10V
3.Supply voltage: DC24V (12 ~ 32VDC, less may contact)
4.Load capacity: current output: ≤ 500Ω
5.Voltage output: ≤ 250Ω output impedance

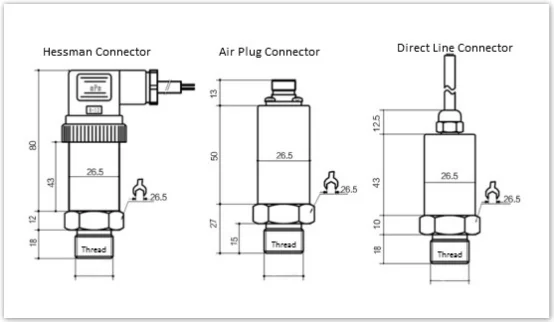

6.Electrical connection: Standard for HE Mann, optional direct outlet or custom
