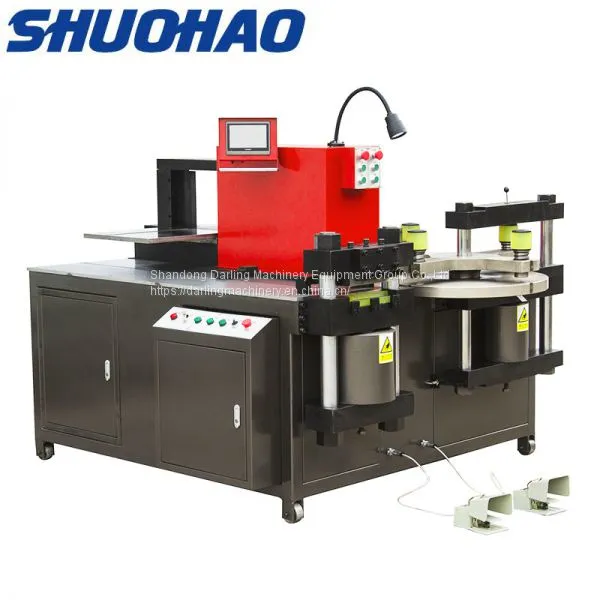

CNC Busbar Machine
Characteristics for CNC Busbar Machine:
1.Three units for punching, shearing and bending.through changing die, it can do special processing work such as pressing, embossing, pressing cable joint, twisting and so on.
2.Bending Unit--PLC Controling ensures high precision of bending angle.Just input thickness and angle u want,it can bend automatically.
3.Punching Unit-It can be installed 6 punching mold once time in punching turret unit.
Save time of changing punching die, improve working efficiency.
4.You can adjust working stroke of each unit conveniently to reduce machining auxiliary time and improve production efficiency.
5.We adopt vertical machining method for punching and shearing unit, so operation is flexible and convenient. We use flatedge shearing method, so the work piece surface is neater and smoother
6.Adopting horizontal bending type to achieve flat bending and vertical bending by changing tools.
7.There are 4 trundles. So the machine can be moved conveniently by adjusting them.
Technical parameters for CNC Busbar Machine:
ZTMX-303K |
||
Punching |
Max power(KN) |
300 |
|
Punching Diameter(mm) |
4.3--25 |
|
Max thickness(mm) |
12 |
|
Max width(mm) |
150 |
|
Shearing |
Max thickness(mm) |
12 |
Max width(mm) |
150 |
|
Bending |
Max power(KN) |
300 |
Max width(mm) |
150 |
|
Vertical Bending |
Max width (mm) |
120(12mm thick copper) |
Embossing |
√ |
|
Pressing Cable Joint |
√ |
|
Twisting |
√ |
|
Outline Dimensions |
1300×1000×900 |
|
|
Power of Main Motor (KW) |
3×4 |
