electrical machinery manufacturers automatic transformer electric copper coil winding machine
- 200 Piece / Pieces per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 30 days
Product Details
Brand Name: | Shuohao | Place of Origin: | China | Model Number: | GRX-800 |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description
Usage
GRX type automatic coil widing machine is suitable for all kinds of coils winding in middle and small electric transformer, circuit transformer, reactor and other similar art. It is necessary equipment of amorphous alloy transformer coil.
Configuration

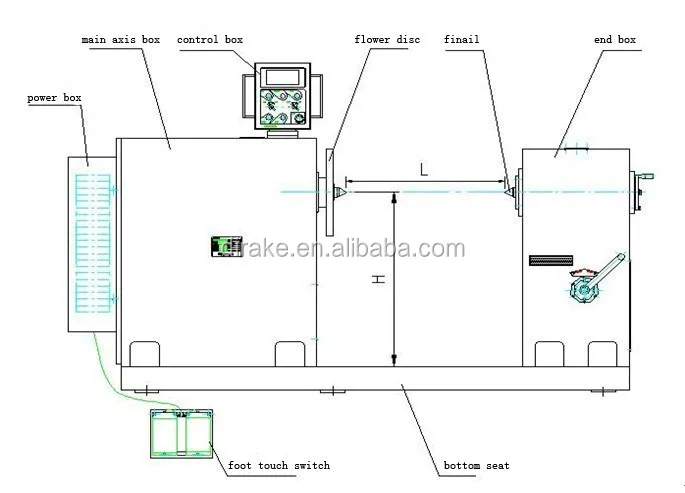

Composed of main coil widing machine, automatic cabling device, insulation layer suppling device, round wire, flat wire tension adjusting frame, pneumatic system, PLC control and servo motor system, touch screen snterface, etc.
The main technical parameters
Model | GRX-800 |
Center height(mm) | 850 |
Winding axis center distance(mm) | 800 |
Working torgue | 300 |
Working speed | 0-450/min |
Speed adjusting method | Steplesss frequency speed adjusting |
Coil size(mm) | External diameter≤600,internal ≥60 Axial high≤800 |
Coil weight | ≤300KG |
Guide wire specification(mm) | Flat wire:≤3 ×12 varnnished wire: Φ0.3- Φ3 |
Min Cabling distance(mm) | 0.01 |
Whloe power | 5 |
Characteristics
This machine adopts hard gear machanical transmission system, with high effiency and low noise features.
Motor with braking function, senstive and reliable.
Electrical adopts frequency adjusting, inverter to control braking, so starting and braking can be preset, it can assure the best widing status.
Frequency adjusting range is large, speed is adjusted accurately and stable. Motor insulation grade is F.
With automatic cabling function.
Adopting servo motor and PLC control system, high clear touch-screen operaction to achieve displaying and man-machine interaction.
Setting special path to confirm synchronization between automatic cabling and widing.
There is tension function in cabling device, tension is adjustable to meet with different wire specification. There is also pneumatic pressing device to meet with work requirement.
Before widing, we can set automatic cabling gauge according to different wire specification. In the widing, we can make fine the adjustment in manual for the error to assure coil tightly.
