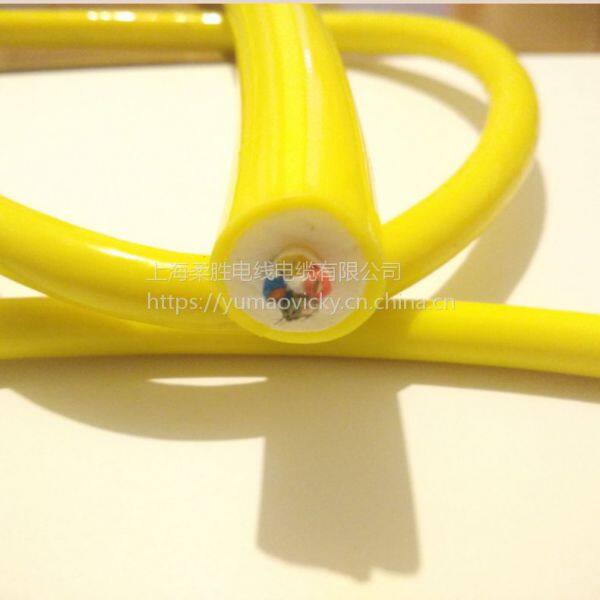

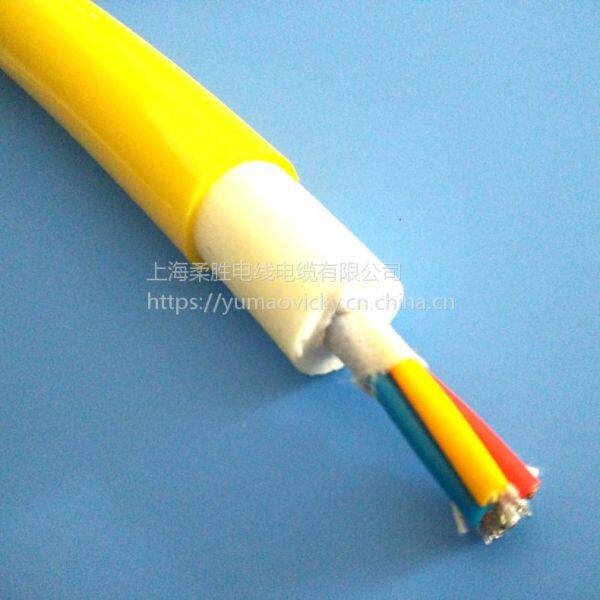

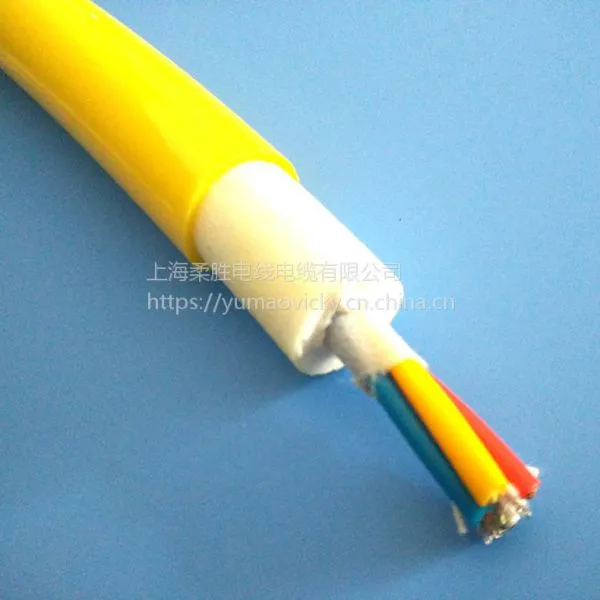

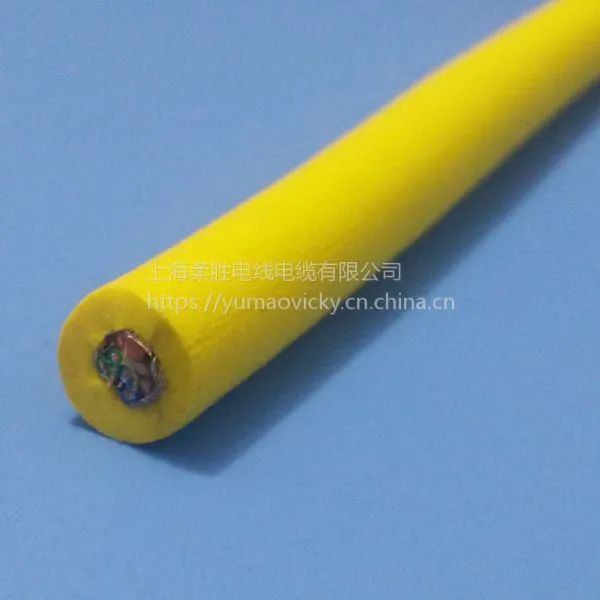

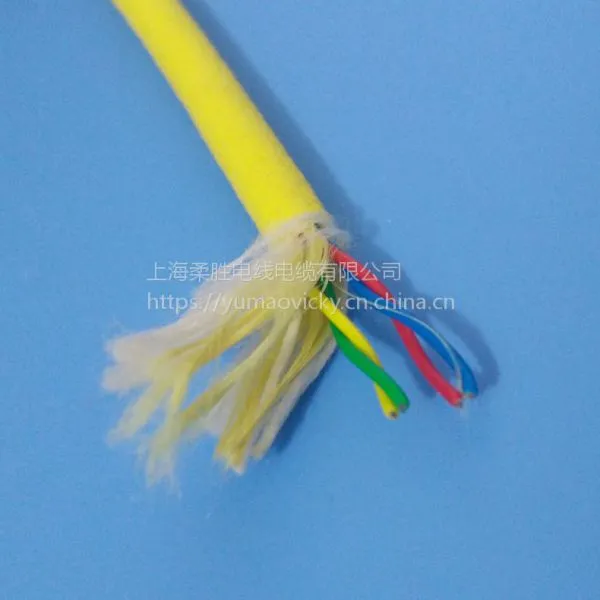

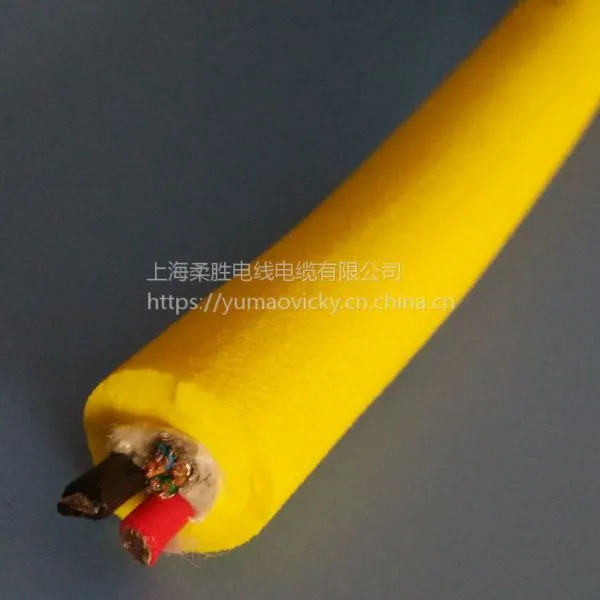

Help CenterRov Umbilical Cable
Related Products
Features:
One line zero buoyancy cable structure:
Conductor: multi strand ultrafine fine twisted oxygen free copper wire
Insulation: special Ding Qing PVC mixed or TPE/ high quality waterproof PE (customer optional)
Color: color separation or number distinction.
Shielding: tinned copper wire textile shielding, density: 85%
Jacket: foamed polyurethane (PUR) / foamed PE/ foaming TPV
Color: black, gray, orange, yellow, can be processed according to customer's skin color.
Rated voltage:
Section
The section is greater than o.5mm2: 300/500v/450/750v.
Test voltage: 2500V
Integrated line zero buoyancy cable temperature range:
Fixed installation -30℃ to +85℃
Mobile installation: -20℃ to +85℃
Bending radius of one line zero buoyancy cable:
Fixed installation: 5 * cable outer diameter (D)
Mobile installation:
When the stroke is<10 meters, the bending radius is 7.5 x D.
When the stroke is greater than 10 meters, the bending radius is 10 x D.
ROV TYPE
Diver Communications Cable
Underwater Video Cable – Diver
Underwater Fiber Optic Cable
ROV Tether Cable
ROV Umbilicals Cable
Underwater Instrumentation Cable
Underwater Multiconductor Power & Control Cable
Shallow Water Cable 500m depth
Deep Water Ethernet Cable 7km depth
Sidescan Sonar Tow Cable
Steel Armored Cables
Custom Cable Designs
Applications
Floaing cable relies on foam core extrusion capabilities to achieve precise cable buoyance requirement, it is flexible, UV Stable, and abrasion resistant and maybe fitted with choice of jackets to achieve resistance to various chemicals including acids, salt water, oil and gasline.
