Model 3200 Corrugated Paper Machinery

Model 3200 corrugated paper machinery

Technical parameters of the long network multi-cylinder corrugated base paper making machine:

Copy variety: high strength corrugated kraft paper box paper

Slurry ratio: 100% waste paper

Copy quantity :100-160g/m2

Net paper width :3200mm

Rail distance: 4350 mm

Working speed :150-250m/min

Transmission speed :280m/min

Dynamic balancing speed :400m/min

Nominal output :120t/d

Transmission: ac variable frequency drive segment transmission

Shape size :74000 x 12000 x 5620 (mm)

Main transmission power :628kw

Structural features

Flow box: the flow box is open, which is composed of square cone main pipe, step diffuser, levelling roller, box, etc., and the box is shaped steel welded with stainless steel lining. Double homogenized roll structure; The upper and lower lip plates are made of stainless steel.

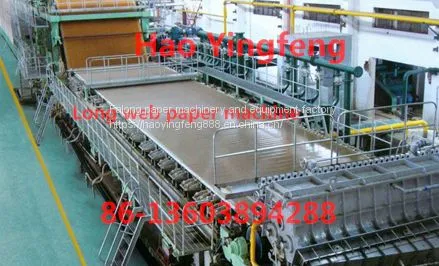

Long network department: the length of network case is 16000mm. The mesh department is mainly composed of chest roller, forming plate, groove profile roller, case roller, three-piece dehydration board, five-piece dehydration board, wet suction box, water absorption box, vacuum volt roller, drive net roller, screw rod gripper, constant tension gripper, pneumatic calibrator, net table rack and so on.

Press section: the use of vacuum suction transfer paper, two pressure area k composite press with a large diameter press. Large roller diameter press using a double blanket rolled 1250 blind rubber roller.

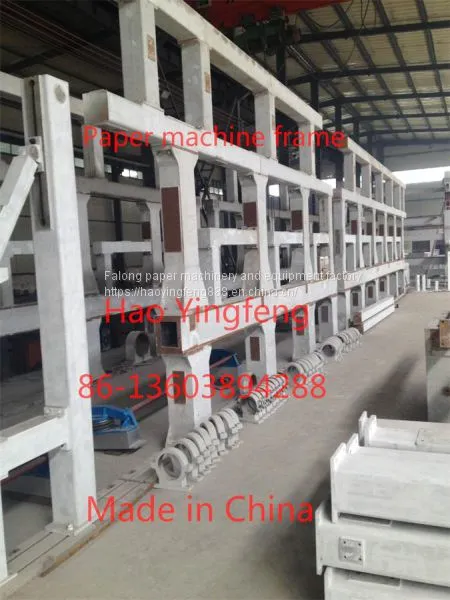

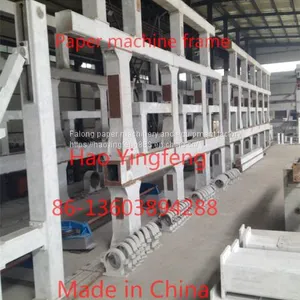

Drying department: it is equipped with 34 oven cylinders of 1500mm, including 1 cold cylinder, arranged in groups of 8+8+8+10. The operating side is cast iron box frame, the transmission side is triangular gear box, drying cylinder and its gear are lubricated with thin oil.

Transmission and control department: adopt ac frequency conversion division transmission, ac frequency conversion special motor, hard tooth surface reducer, universal coupling connection, adopt digital closed loop control system.

Coil paper: equipped with horizontal pneumatic coil paper machine.

I plant is a professional design, production of paper machines, pulping equipment and paper completion equipment high-tech enterprises. Strong technical force, reasonable process design, is an early domestic production of paper equipment enterprises, with a scientific quality management system.

Over the past 20 years, the company has been developing rapidly, its production capacity and production level have been continuously improved, and its production scale has been expanding day by day. With excellent equipment and good scientific research, experiment, production and business site, with strong mechanical processing, mechanical assembly capacity.

The solid foundation strength and the perfect management system, has guaranteed the product the performance and the quality, has won the prestige and the market for the enterprise, our product sells well at home and abroad, has the certain reputation at home and abroad.

Main products: environmental protection equipment, 600 type, 787 type, 4500 type, 4200 type, 3200 type, 3600 type, 2880 type, 2640 type, 2400 type, 1880 type, 1760 type, 1575 type, 1092 type, long nets, rotary screen folding net and various types of paper machine, and provide all kinds of paper making machinery spare parts and auxiliary equipment, can also according to customer demand production of various kinds of paper making equipment.

We are willing to quality products, high quality service and reputation with colleagues at home and abroad to work together to create brilliant!
