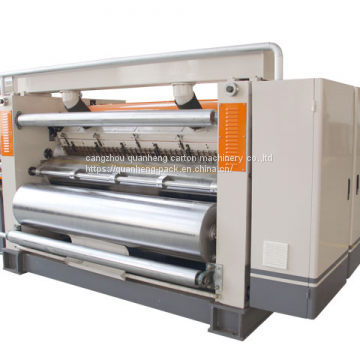

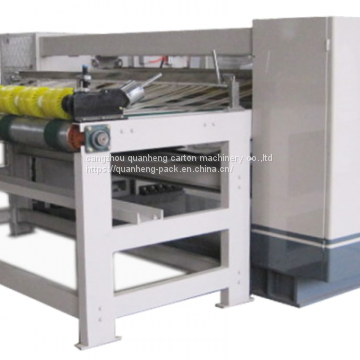

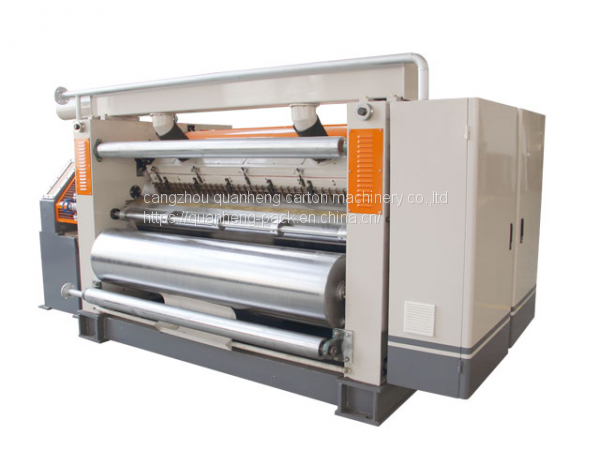

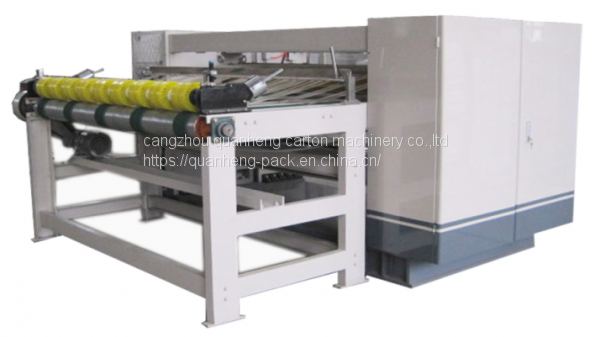

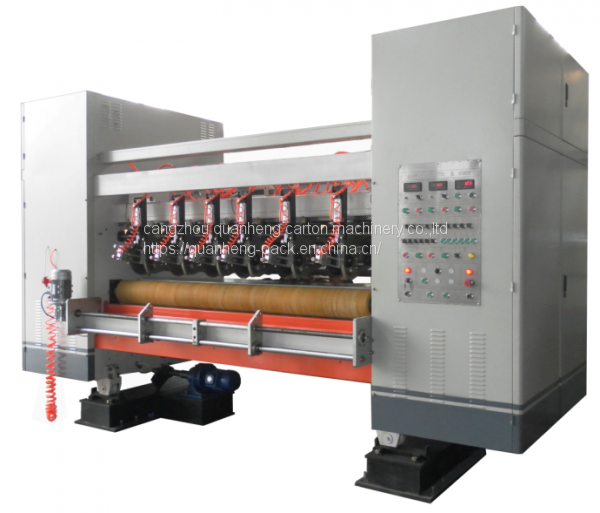

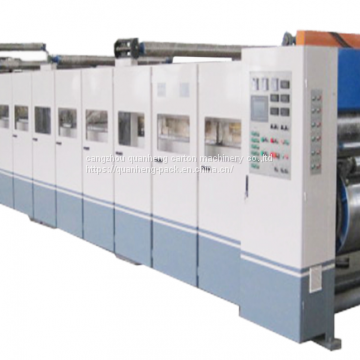

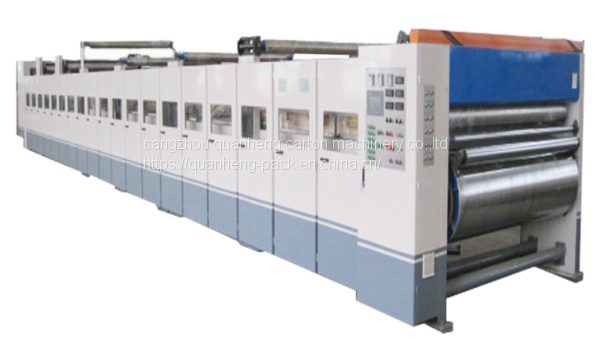

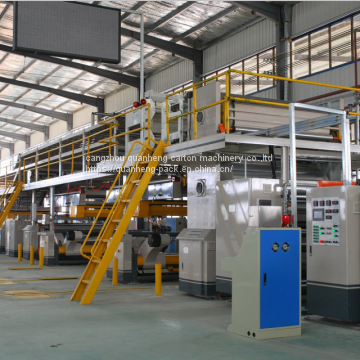

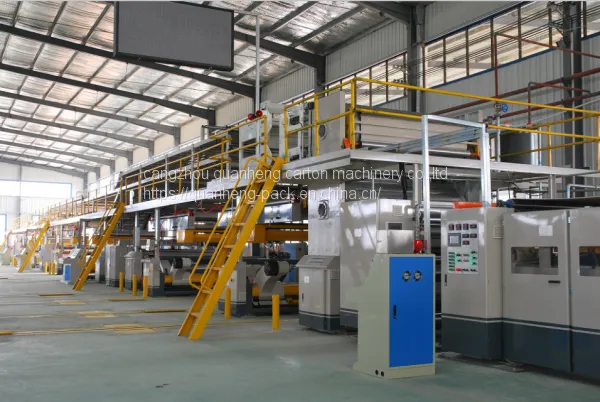

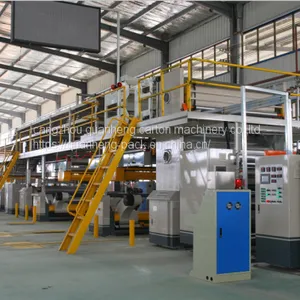

corrugated cardboard production line 2ply 3ply 5ply 7ply
1 |
Effective width |
1600-2500mm |
2 |
Design produce speed |
150m/min |
|||
3 |
Three layer work speed |
100-140m/min |
4 |
Five layer work speed |
90-130m/min |
|||
5 |
Seven layer work speed |
------------------- |
6 |
The highest change single speed |
100m/min |
|||
7 |
Longitudinal separation accuracy |
±1mm |
8 |
Cross-cutting precision |
±1mm |
|||
|
note |
Speed the above targets required to achieve：effective width1600mm，Comply with the following standards and ensure the paper's equipment condition 175 ℃ heating surface temperature. |
|||||||
Top paper index |
100g/㎡--180g/㎡ Ring crush index（N.m/g）≥8 (Water containing8-10%) |
|||||||
Core paper index |
80g/㎡--160g/㎡ Ring crush index（N.m/g）≥5.5 (Water containing8-10%) |
|||||||
In paper index |
90g/㎡--160g/㎡ Ring crush index（N.m/g）≥6 (Water containing8-10%) |
|||||||
9 |
Flute combination |
|||||||
10 |
Steam requirement |
The maximum pressure 16kg/cm2 |
Common pressure10-12kg/cm2 |
use4000kg/Hr |
||||
11 |
Electricity demand |
AC380V 50Hz 3PH |
Total power≈250KW |
Running Power≈150KW |
||||
12 |
Compressed air |
The maximum pressure 9kg/cm2 |
Common pressure4-8kg/cm2 |
use1m3/min |
||||
13 |
space |
≈Lmin75m*Wmin12m*Hmin5m(The actual drawing to provider to provide audited prevail) |
||||||
