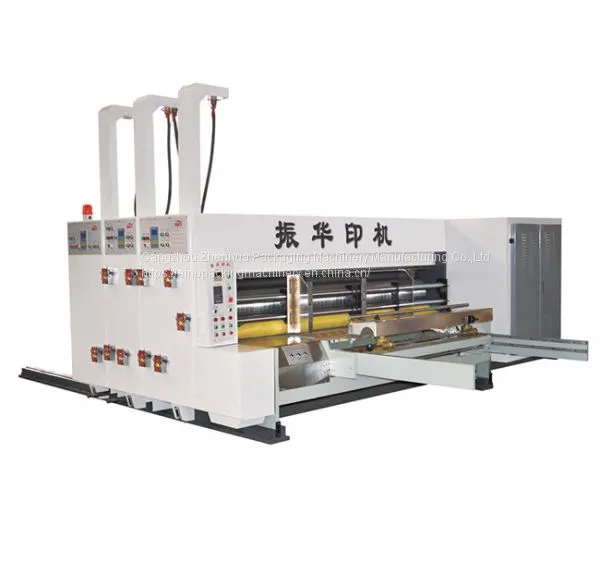

YSF Printing Machine YSF420D-480-530D-600D
Use and Characteristics:
The machine can be composed of two-color, three color, four-color printing slotting die cutting machine, while providing a complete printing, slitting, creasing, die cutting, corner cutting process, and the advantages of similar products in the absorption of the aircraft based on the all- new design, has a beautiful appearance, novel, compact, high-resolution printing, color printing error is small, easy adjustment and accurate, can achieve seamless transmission gear, and can achieve non-stop printing roller electric phase adjustment of 360 degrees, the aircraft manual and pneumatic lift version has two structural forms, pneumatic structure air can be achieved with ink and inking roller from the printing plate automatic inking and improve the operating speed, the aircraft and is equipped with manual and electric phase of the phase two, 360-degree adjustment phase, the ink not to dry and condensation, improved network roll and rubber roll life. Is ideal for carton industry and advanced printing equipment.
Model | Diameter of printing roller (mm) | Width of feeding paper(mm) | Effective printing area(mm2) | Power of motor(KW) |
YSF420D-2000 | 420 | 2000 | 1250*1800 | 3.0 |
YSF480D-2200 | 480 | 2200 | 1450*2000 | 4.0 |
YSF530D-2400 | 530 | 2400 | 1650*2200 | 4.0 |
YSF600D-2600 | 600 | 2600 | 1850*2400 | 5.5 |
YSF700D-3200 | 700 | 3200 | 2100*3000 | 11 |
Automatic Partition Machine, Semi-Automatic Corrugated Box Stitching Machine, Auto Folder Gluer Machine ,Lead Edge Feeder 4 Color Stacker Machine, High Speed 4 Color Printer Slotter, High Precision Printing Machine For SaleZhenhua mainly produces packaging machinery, such as printer slotter and stacker machine. The whole machine is Adopt famous electrical apliances and PLC, the quality is stable and reliable. Man-machine interface, computer order management, easy to operate. More information please view here.
