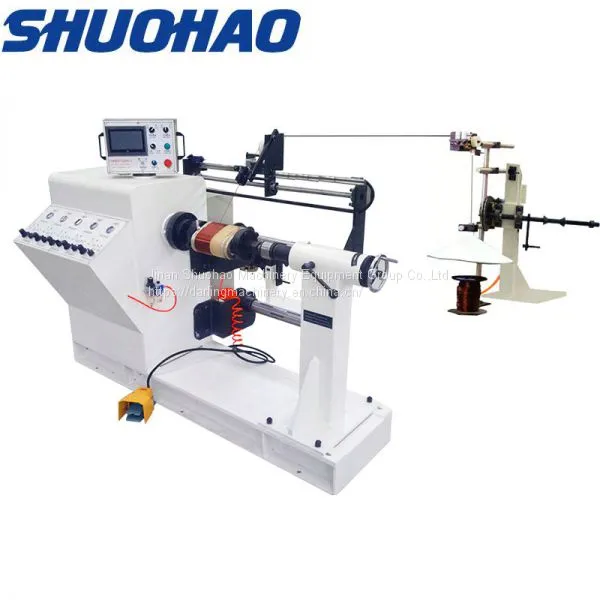

cnc winding machine for potential transformer
Usage for cnc winding machine for potential transformer:
Our GRX-type automatic coil winding machine is widely used in distribution transformer,dry transformer,
reactor and similar process of LV coil winding.
Feature for cnc winding machine for potential transformer:
1.machine body adopts good quality steel sheet,with good stability.
2.CNC digital inverter control,touch screen operation.easy to use.
3.The variable frequency drive type is applied,low noise.
4.The winding displacement is aided with precise servo driven type , leading to a fast and precise follow.
5. Storage can reach 1000 steps, cylinder number, width, wire diameter, direction, speed, and some
other parameters can be set. precise count, power off memory, overload and over current protection,
strong anti-interference.
Technical specifications for cnc winding machine for potential transformer:
No. |
Item name |
Index |
1 |
Product type |
GRX-100 |
2 |
Max bearing weight(kg) |
≤100 |
3 |
Main axis speed(r/min) |
0~240 |
4 |
Main axis center height(mm) |
850 |
5 |
Winding axis center distance(mm) |
50-500 |
6 |
Motor power(kW) |
2.2 |
7 |
Rectangle coil diagonal length(mm) |
≤500 |
8 |
Working voltage AC (V) |
380V,50HZ |
9 |
Air pressure(bar) |
5-6.5 |
10 |
Using range |
Flat wire:Max 3×12mm Round wire:Φ0.3mm—Φ3mm |
11 |
Max setting winding number of counting |
99999.9 |
12 |
Round wire or sheet wire, enamel covered wire or paper-covered wire |
2 sheet wire≤3×12mm Enamel covered wire 0.3mm-3mm |
13 |
Whole machine power(kw) |
About 5 |
14 |
Automatic winding function |
Min. diameter of modifying wire 0.01mm |
15 |
Stepping winding range(mm) |
0.1~5 |
16 |
Stepping precision(mm) |
0.01 |
