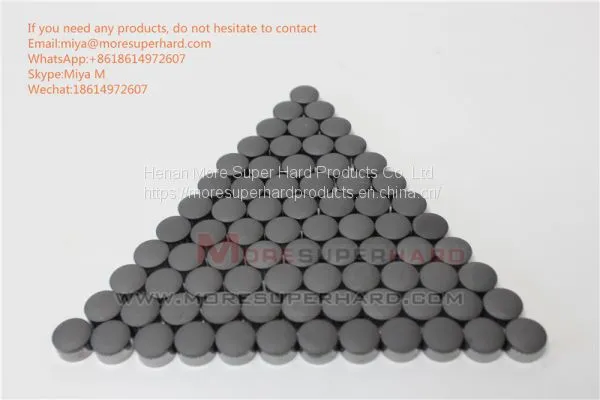

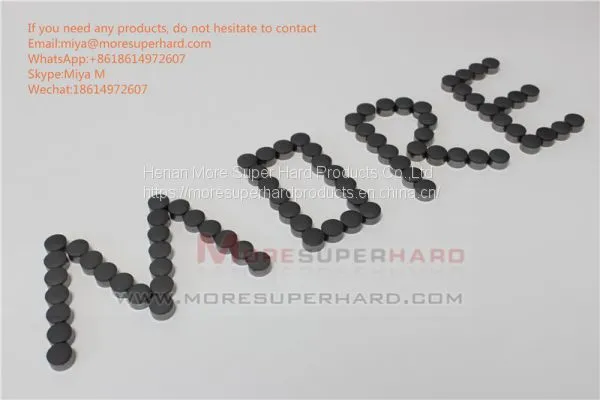

Name:PDC Cutter
Introduction:PDC (Polycrystalline Diamond Compact) Cutter is kind of superhard material that compact polycrystalline diamond with tungsten carbide substrate at ultra-high temperature and pressure.
Since PDC Cutters consist of diamond grit and tungsten carbide substrate, it combines advantages of both diamond and tungsten carbide and featured high abrasion resistant, high impact resistant and high thermal stable.
Now PDC Cutters are widely applied to oilfield drilling, gas and geological exploration, coal mining and many other drilling and milling applications, tooling as PDC Drill Bits, such as Steel PDC Drill Bits & Matrix PDC Drill Bits for oil drilling and Tri-cone PDC Drill Bits for coal mining. Hereby listed some common sizes of PDC Cutters used for Oilfield Drilling
Feature:
1.Faster cutting speeds than carbide
2.Recommended for cutting aluminum and copper alloys thanks to its excellent adhesion resistance
3.Incorporates a very sharp cutting edge
4.Available for general turning and cut-off in addition to the inserts for milling cutters
Best For: aluminum alloy, brass, cooper alloys, graphite, ceramic compact, plastics
Advantages:
1.High efficiency reduce the machining time
2.Stable performance ,and improve the products’ quality
3. The structure is simple, easy to use
SPEC SHEET FOR OILFIELD DRILLING PDC CUTTERS
SPEC Drawings |
Dimension Code |
Diameter (ΦD) |
Height Total(H) |
Height Diamond |
Diamond Chamfer |
Carbide Chamfer |
1916 |
19.05±0.05 |
16.0±0.10 |
2.0-2.5 |
0.5x45° |
0.5x45° |
|
1913 |
19.05±0.05 |
13.2±0.10 |
2.0-2.5 |
0.5x45° |
0.5x45° |
|
1613 |
15.88±0.03 |
13.2±0.10 |
2.0-2.5 |
0.3x45° |
0.5x45° |
|
1610 |
15.88±0.03 |
10.0±0.10 |
2.0-2.5 |
0.3x45° |
0.5x45° |
|
1313 |
13.44±0.03 |
13.2±0.10 |
2.0-2.5 |
0.3x45° |
0.5x45° |
|
1308 |
13.44±0.03 |
8.0±0.10 |
2.0-2.5 |
0.3x45° |
0.5x45° |
Please don't hesitate to contact me if you have any needs:miya AT
Our company also produces a series of diamond and CBN tools,welcome to consult and choose at any time
