Description

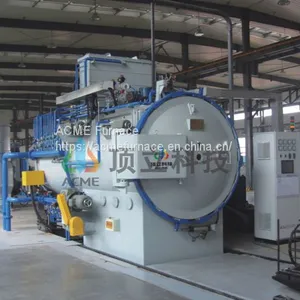

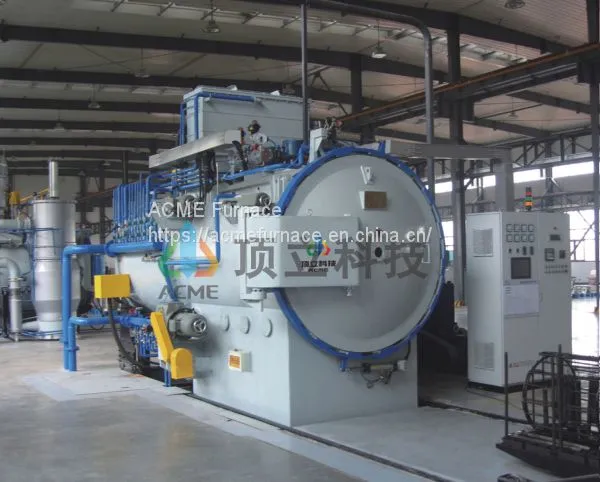

The vacuum oil quenching furnace is suitable for vacuum oil quenching of materials like alloy steel, bearing steel, spring steel, die steel, high-speed steel, etc. Horizontal twin chamber oil quenching furnace can also applied to aging and gas cooling process for the above materials.
Technical Features
1. Excellent temperature uniformity realized by octagon-shaped furnace hearth.
2. The heating elements adopt unique non-ceramic supporting technology. It can be used for five years without any insulation problem.
3. The inner trolley is overlap type stretchable structure with frequency converting function. It has a stable transportation speed with "full-fast-slow” steps, which makes the transportation time very short.
4. Build-in heat exchanger and forced gas cooling type contribute to the uniformed and high-low-rating jet gas, which eventually makes the cooling speed very fast.
5. Auto load cart, remote control, loading and unloading need only one operator.
6. High volume oil tank and hot oil cooling by external circulation and heat exchanger, achieving has a better cooling effect.
7. Two cooling types -- oil stirring and oil injection cooling, are used for various kinds of products, which makes the product have less deformation.
8. The horizontal twin chamber heat treatment furnace features larger load capacity and higher efficiency comparing with other same specification products.
Optional Configuration of Vacuum Oil Quenching Furnace
1. Furnace door: On-line/off-line, vertical up and down, rotating
2. Insulation gate in the middle: Mechanically-driven/pneumatically-driven
3. Quenching oil flow type: Paddle stirring/nozzle jetting/both of the two types
4. Furnace hearth: Graphite heating elements and graphite felt heat insulation/Nichrome heating elements and stainless steel heat insulation/Molybdenum heating elements and metal heat insulation
5. Gas cooling type: build-in heat exchanger/external heat exchanger/none
6. Vacuum pump and gauge: Foreign brand/high-quality Chinese brand
7. Vacuum degree: High vacuum/medium vacuum
8. PLC: OMRON/Siemens/Mitsubishi
9. Temperature controller: SHIMADEN/EUROTHERM/Honeywell
10. Thermocouple: S type, K type, N type
11. Recorder: Paperless recorder/paper recorder
12. HMI: Simulation screen/Touch screen
13. Electric components: High-quality domestic brand/Schneider/Siemens
Specifications of Vacuum Oil Quenching Furnace
| SpecModel | HVOQ-334D | HVOQ-446D | HVOQ-557D | HVOQ-669D | HVOQ-7711D | HVOQ-8812D | HVOQ-9915D |
| Effective hot zone size W×H×L (mm) | 300 × 300 × 400 | 400 × 400 × 600 | 500 × 500 × 700 | 600 × 600 × 900 | 700 × 700 × 1100 | 800 × 800 × 1200 | 900 × 900 × 1500 |
| Load Capacity (kg) | 75 | 250 | 400 | 600 | 1000 | 1200 | 1500 |
| Heating Power (kW) | 48 | 75 | 90 | 150 | 270 | 360 | 480 |
| Max.Temperature(°C) | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 |
| 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | |
| Temperature Uniformity (°C) | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 |
| Vacuum degree (Pa) | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 |
| 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | |
| Pressure Increase Rate (Pa/h) | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 |
| ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | |
| Transportation time (S) | ≤12 | ≤15 | ≤20 | ≤25 | ≤35 | ≤35 | ≤40 |
| Oil tank volume (L) | 800 | 2000 | 3500 | 5500 | 9500 | 11000 | 14000 |
| Cooling gas (99.995%) | N2/Ar | N2/Ar | N2/Ar | N2/Ar | N2/Ar | N2/Ar | N2/Ar |
| Gas cooling pressure (bar) | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
