Details:

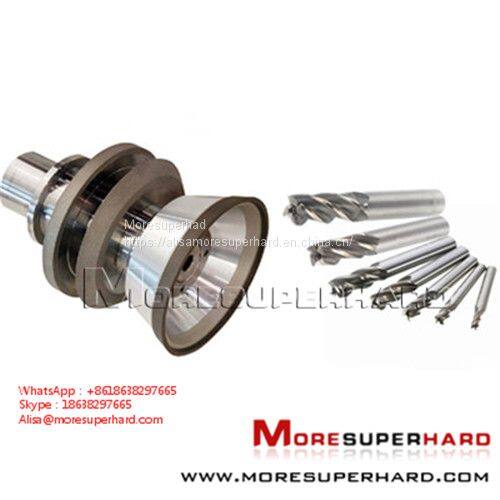

More SuperHard diamond / CBN grinding wheel for CNC tool grinder is used for tungsten carbide, high speed steel (HSS), stainless drill ,end mill and reamer.

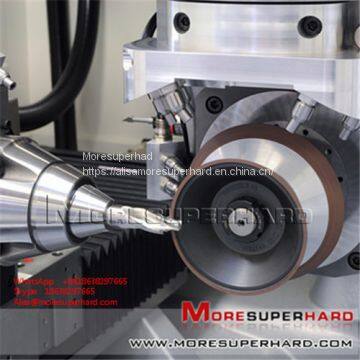

Grinding Wheel For CNC Tool Grinder
CNC Tools Grinding Machine With A Very Excellent Stability And High Flexibility, It’s Requirement For The Diamond & CBN Grinding Wheel For CNC Machine With High Efficient Grinding, Good Wear Resistance ,Good Shape Retention And High Material Removal Rate .
CNC tools grinder:
Walter, ANCA, EWAG, Farman, Schutte, Schneeberger, Makino, Stuer, Strausak, Cininnati, Griffo, Huffmann, Jungner, CUOGHI, Fehlmann and so on.

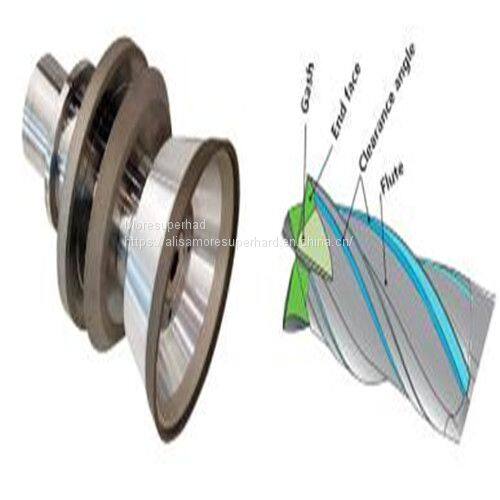

Fluting : Perfect flute surface quality, Extremely high stock removal, Very low energy consumption | |||||
Model |
D (mm) |
T (mm) |
X (mm) |
H (mm) |
grit |
|
1A1 |
75 |
10 |
5 |
20 |
D64 |
100 |
6, 10, 12 |
5, 10 |
20 |
D46, D64 |
|
125 |
10, 12, 16 |
10 |
20 |
D46, D64 |
|
150 |
12 |
10 |
20 |
D64 |
|
|
1V1 |
D (mm) |
T (mm) |
X (mm) |
H (mm) |
V° |
75 |
10 |
5 |
20 |
45 |
|
100 |
10， 15 |
5 |
20 |
45 |
|
125 |
6， 10， 15 |
5 |
20 |
45 |
|
150 |
12 |
5 |
20 |
45 |
|
|
14F1 ( flute for drill ) |
D (mm) |
U (mm) |
X (mm) |
H (mm) |
R |
100 |
4 |
6 |
20 |
2 |
|
125 |
3 |
5 |
20 |
1.5 |
|
150 |
1,5 |
5, 7 |
20 |
0.5 , 2.5 |
|
Gashing and Clear edge:The production of superior tool edge quality , High stock removal, Maintaining wheel profile | |||||
Model |
D (mm) |
T (mm) |
X (mm) |
H (mm) |
V° |
|
1V1 |
100 |
10, 15 |
5, 10 |
20 |
45 |
125 |
4, 10, 15 |
5, 6, 10 |
20 |
45 |
|
|
12V9 |
D (mm) |
W (mm) |
X (mm) |
H (mm) |
|
75 |
3 |
10 |
20 |
||
100 |
3 |
10 |
20 |
||
125 |
3 |
10 |
20 |
||
150 |
3 |
10 |
20 |
||
Relief angle grinding: Excellent surface finish and the best profile consistency, Excellent edge quality, High stock removal at second relief | |||||
|
12V9 |
D (mm) |
W (mm) |
X (mm) |
H (mm) |
|
75 |
3 |
10 |
20 |
||
100 |
2, 3 |
10 |
20 |
||
125 |
3 |
10 |
20 |
||
* Other specification can be made according to customers requirements. | |||||
CNC Tool Grinder Diamond wheel feature:
1, high-security type, suitable for high-precision tool production and processing;
2, a large amount of knife up to 4-7mm;
3, the workpiece surface finish is good
4, low spindle load;
5, high cutting speed;
6, grinding wheel sharp wear, long dressing cycle
These properties of the Hybrid bond improve the performance of the CNC Tool and Cutter Grinder in the following ways:
1.Increased rate of material removal with high temperature stability.
2.Reduced grinding time per component
3.Low and constant power consumption
4.high profile stability and better machine productivity
5.Long wheel life and long dressing interval.
Why choose our product
|
Our product’s advantages: 1.High grinding efficiency |
2.Wonderful edge quality |
3.Long service life |
4.High polishing efficiency |
5.Large Exports |
6.Considerable after-sell service |
7.Amazing performance |
8.Various types and sizes available |
9.Direct Factory Manufacturer |
10.Backing/substrate material: Aluminum |
11.Abrasive layer: diamond |
12.Bond: vitrified |
13.Excellent cutting edges |
14.Reduced cycle times |
15.Custom Engineered |
