Help Center11A2 Ceramic Bonded Diamond Cutter Grinding Wheel Alisa@moresuperhard.com
Related Products
-
14A1 Ceramic Bonded Diamond High Efficiency Ultra-hard Grinding Wheel Alisa@moresuperhard.comUS$ 50 - 100MOQ: 1 Piece -
4000# Ceramic Bonded Diamond High Efficiency Ultra-hard Grinding Wheel Alisa@moresuperhard.comUS$ 50 - 100MOQ: 1 Piece
-
CBN Grinding Wheel For Internal Grinding Alisa@US$ 20 - 50MOQ: 1 Piece
-
Grinding Wheel For CNC Tool Grinder Alisa@moresuperhard.comUS$ 20 - 100MOQ: 1 Piece
-
Vitrified Bond Double Disc Grinding WheelUS$ 50 - 100MOQ: 1 Piece
Applications of vitrified diamond wheels for PCD and PCBN tools :
PCD cutting tools, PCBN cutting tools, CVD tools, MCD tools, milling cutter, reamer, drill and regrinding, etc
Feature |
1:Name:vitrified bond diamond grinding wheels |
2:Type Code: 1A1, 3A1, 11A2, 14A1,1 6A1,6A2, 12A2, 12V2, 6A2T, 11V2, 9A1, 1A1R, |
3:Material: Diamond, CBN |
4:Size: D. 25-500mm; T. 5-40mm; H. 10-127mm. |
5:Line speed: 35~80 (M/S) |
6:Grit: 80#~5000# (D251-D1) |
7:Application Industry: Jewelry, Automobile, Aerospace, Oil drilling, Coal mining, Metal processing |
8:Certification: ISO 9001:2008 |
9:Diamond grit: #100, #150, #200, #300, #400, or upon your request |
10:Type: straight wheel, bowl-shaped wheel, cup-shaped wheel, dish- shaped wheel |
Product Feature introduction |
Advantages of vitrified diamond wheels for PCD and PCBN tools :
1.The porous structure of the abrasive improved diamond exposure and Can Prevent Vertical Streaks On Workpiece And Improve Surface Quality
2.Accurately control geometric tolerances to make a good abrasive layer
3. Good Self-Sharpening, High Grinding Efficiency,High Wear Resistance And Less Abrasive Grain Consumption
4.High Precision Workpiece. PCD Tools Can Reach High Efficiency , Good Surface Finish And Edge No Chipping
5. Vitrified Bond Wheels Offer Tool Life Greater Than 150 Times That Of A Resin Bond Wheel And Can Be Easily Trued And Dressed On The Machine
Product description of vitrified bond diamond grinding wheels
1.Vitrified bond diamond grinding wheel possess pretty high abrasive resistance, especially in polishing hard and brittle workpiece.
2.Vitrified bond diamond grinding wheel has many advantages like small grinding force, low operating temperature, high grinding precision, excellent workpiece's surface grinding, etc.
3. Vitrified bond diamond grinding wheel recognized as a high performance grinding wheel with the higher speed, higher efficiency, higher precision, lower abrading cost and lower pollution.
4.Vitrified bond diamond grinding wheel is widely used in wafer, PDC, PDC, diamond cutter, CBN, cemented carbide, new engineering structural ceramic, diamond, jewel, crystal, rare earth materials and another hard-brittle materials' machining operation.

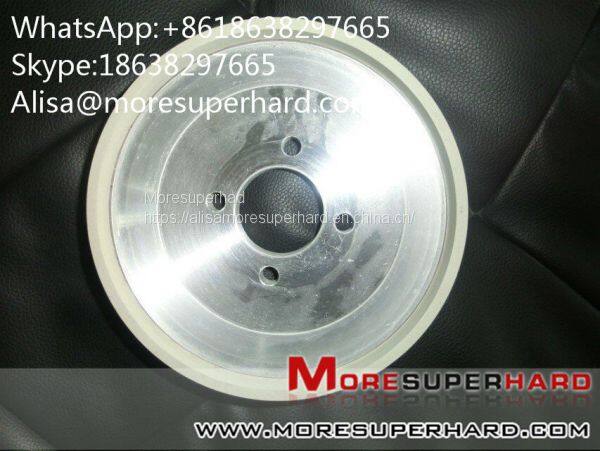

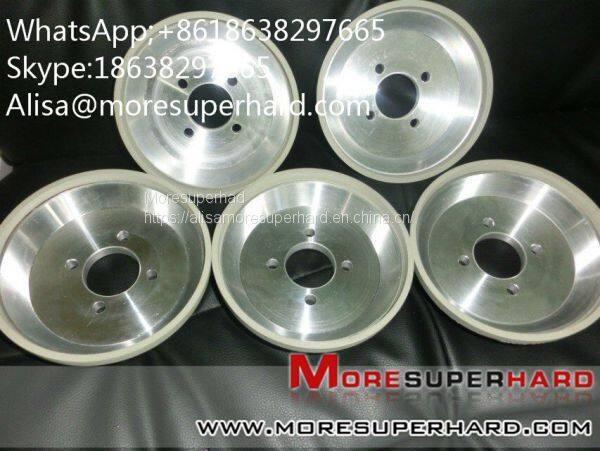

product show
Shape code |
diameter |
high |
aperture high |
Ring width |
Abrasive thickness |
1A1 |
80 |
10 |
32 |
8,10 |
5—30 |
150 |
10 |
32 |
10 |
5—30 |
|
155 |
10 |
32 |
10 |
5—30 |
|
160 |
10 |
32 |
10,12 |
5—30 |
|
170 |
10 |
32 |
10，12,14 |
5—30 |
|
175 |
10 |
32 |
10 |
5—30 |
|
220 |
10 |
32 |
20 |
5—30 |
|
14A1 |
170 |
10 |
32 |
10,12,14 |
5 |
175 |
10 |
32 |
10,15 |
5 |
|
6A2 |
100 |
40 |
20,32,40 |
5,10,15 |
10 |
125 |
40 |
32,40 |
5,10,15 |
10 |
|
150 |
40 |
32,40 |
5,10,15 |
10 |
|
11A2，12A2 |
100 |
40 |
20,32,40, |
5,10 |
3—10 |
125 |
40 |
32,40 |
3,5,10 |
3—10 |
|
150 |
40 |
32,40 |
3,5,10 |
3—10 |
Why choose our grinding wheel
|
Our product’s advantages: 1.High grinding efficiency |
2.Wonderful edge quality |
3.Long service life |
4.High polishing efficiency |
5.Large Exports |
6.Considerable after-sell service |
7.Amazing performance |
8.Various types and sizes available |
9.Direct Factory Manufacturer |
10.Backing/substrate material: Aluminum |
11.Abrasive layer: diamond |
12.Bond: vitrified |
13.Excellent cutting edges |
14.Reduced cycle times |
15.Custom Engineered |
If you have any questions, please contact us
WhatsApp:+8618638297665
Skype:18638297665
Alisa@moresuperhard.com
Tel:18638297665
URL:
Please provide us details when you order, For example,
Product needed: Resin bond diamond grinding wheel
1) Diameter (25, 40,100,200,300…750mm)
2) Hole/state bore dimension
3) Thickness (4/5/6/8/10/…40/50/60mm)
4) Shape (1A1 /1A1R/1A8/1A1W/1L1/1F1/6A2/12A2/11V9/4A1/14A1…)
5) Grit size (16/18, 18/20…40/45,80/100…325/400. In GB or ISO standard)
6) Other request
