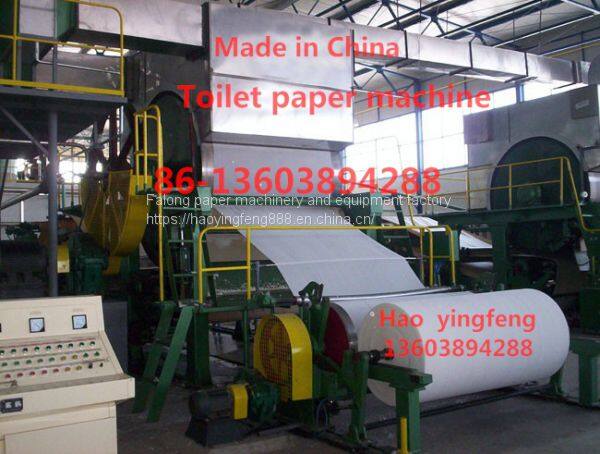

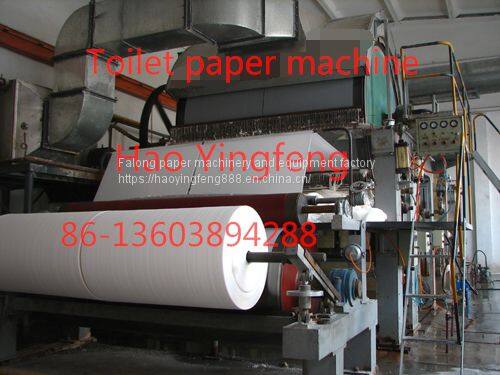

New Type 2880 High Speed Tissue Paper Machine, Machine for Producing Toilet Paper

New type 2880 high speed toilet paper machine, toilet paper production machine

I. main technological parameters:

1. Product variety: toilet paper

2. Effective copy width: 2880mm

3. Fixed quantity: 19-30g/m2

4. Production: 13-15 tons/day

5. Design speed: 200m/min

6. Working speed: 180m/min

7. Rail distance: 4000mm

8. Pressure: pneumatic pressure

9. Transmission mode: segment transmission, ac frequency conversion speed adjustment

Ii. Main structure and configuration of paper machine

1. 1 set of extruding water

The 350x3400mm upper cast iron light roller, the lower cast iron rubber roller each 1, mechanical pressure. Adjustable bearing 113622 is selected.

2. 1 set of net cages

Stainless steel 1800 x 3350mm wire cage 1. The mesh wheel shaft is made of carbon steel and thick wall steel pipe, the wheel spokes are made of high strength cast iron and wrapped with stainless steel water guide to improve the water filtration rate.

The aligning bearing is chosen for 113520.

The bearing shell is made of cast iron. It adopts labyrinth seal structure to prevent water seepage and protect the bearing.

Dynamic balancing.

3. Coucher 1 set

The net surface is provided with 500x3350mm, 14mm thick seamless steel pipe, 1 rubber roller, 25mm thick, 35-38 degree of rubber hardness, maximum thread pressure of 3kg/cm2.

Bearing used 111616. The bearing shell is made of cast iron. It adopts labyrinth seal structure to prevent water seepage and protect the bearing.

With seven - character frame, square frame, rail, arm.

Dynamic balancing.

4. 1 set of shotcrete net box

The net box is made of high density polyethylene sheet with a thickness of 30mm. It is provided with inlet port, pulp hopper, air inlet and observation port.

The sizing mode is 304 stainless steel square cone tube multi-pipe pulp, adjustable movable arc plate grouting, the arc bar is wooden.

The pressurized fan and sealing strip are provided by the user.

5. Three empty boxes

The steel box body panel is made of high density polyethylene panel, the opening is in the shape of hole or joint, the high Angle of the device can be rotated, and the extraction device is located at the transmission side.

Model 16 vacuum pump 1, with 22KW motor.

6. The number of rollers shall be in accordance with the drawing

Machined with 245 x 3400mm, 14mm thick seamless steel tube.

The bearing box is made of cast iron, the bearing is double-row radial ball bearing 211/3612, and the ball tile is centering.

Dynamic balancing.

7. 1 extender roll

No. 273 x 3400mm, 14mm thick seamless steel tube processing, surface coating, rubber hardness 90 degrees, car forward and reverse screw thread, used for stretch woollen cloth.

The bearing box is made of cast iron, the bearing is double-row radial ball bearing 211/3612, and the ball tile is centering.

Dynamic balancing.

8. One high-pressure water spray pipe

Hydraulic moving spray device with stainless steel nozzle

9. Dry part 1 only

Phi 3000 x 3350 mm, HT250 cast iron cylinder 1, stand like a wall inside the car processing, surface coarse and fine cars, grinding polishing, finish Δ 9 above, brinell hardness of 210 degrees of above.

The design pressure is 0.3mp, and the experimental water pressure is 0.6mp.
