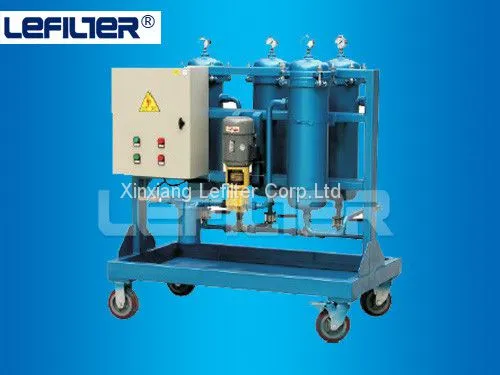

High Efficient Vacuum Oil Purifier
Main function
●Dehydration
●Degassing
●Remove machinery impurity
Multiple with regenerating unit,the oil purifier also functions as below:
●Disacidify
●Decoloration
●Enhance insulating strength
Performance&Characteristics
Vacuum system:
Vacuum system is composed of vacuum container,vacuum pump,colling tank,effusion tank,air admission system.Adopts optimized structure design,which vastly enlarges the oil
superficial area,and prolongs ultimately oil route in the vacuum system.
Filtration system:
Adopts level 3 filter,the inlet port coarse filter protects pump and prolongs the main filter working life.
2 stages filters behind the pump can make the oil high clearness.Utilize special gradient aperture glass fiber material.It can significatively filter different sizes particles,which lengthens
the filters working life greatly.Completed filter element structure and lower the material surface velocity and achieve steady filtration.
Heating system:
Applied subsection and step by step to heat, the surface heat loadless than 1.0W/cm2,won't be overheat and cause the oil goes bad.The oil temperature can be adjusted at 0～100℃ and controlled automatically,installed with protection device,it'll stop operating when the input oil less than usual,which avoids the damages for heater overheated.
Automatic control system:
The oil purifier equipped with series of Automatic control instruments collect equipment operation information as transducer,level transmitter,temperature sensing instrument,vacuum
sensing instrument.Then pass on to central processor to deal with,control and monitor the whole equipment operation conditions.Also equipped with kinds of protection devices(overload protection,overvoltage protection,phase sequence protection,abnormal operating outage protection) can make sure equipment operation safe.
The whole structure:
The integration of the bridge structure reduces volume.Adopting the whole removeable tank can make oil-free operate reducing pollution.
Movable type,stationary type,totally enclosed type,vehicular and many models for reference.
| ItemnameUnitsZJA-30ZJA-50ZJA-100ZJA-150ZJA-200ZJA-300ZJA-500Equipment technology standardFlow RateL/H1800300060009000120001800030000Working VacuumMPa-0.08 — -0.099Working PressureMPa≤0.5Temperature control ℃ 20 — 80 PowerV380V/50Hz(or according the customer's need)Working NoizedB(A)≤78Heating powerkW30456090135180216Total PowerkW35506696142191230Out in Diametersmm25324050506580Equipment weightKg60080010001300180021002400SizeLONGmm1200125014501600160018001900WIDEmm1200125014001600160017001900HEIGHTmm1700175018002100215022502300Oil treatment IndexOil Breakdown VoltageKV≧70(GB/T507)Water content in oilPPm≤3(GB/T7600)Gas content in oil%≤0.05(GB/T423)Filtration Precisionμm≤3 |
