Application:
To filter the oil which is filled up in hydraulic lubrication system.
The by-pass filtration for the working hydraulic system.
The circulation filtration before hydraulic lubrication system in motion.
To inserting the hydraulic lubrication system to improve systematic cleanness degree in an all- round way.

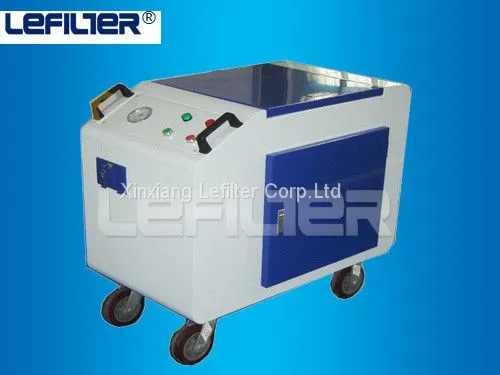

Product Introduction :
－This machine adopts the refined outer cove and covers all components, protect the equipment and exempt from polluting in the external world,especially adapt to expecting environment.
－It includes a special gear wheel pump by electric machinery.And has features of low noise,strong self-sucking and stable operating.
－Equipping high-pressure pipeline overflow protector,this can protects hydraulic pressure system.
－Adopting the hot relay to protect electric machinery,and prevent being damaged because of the overload.
－The coarse suction filter can not only protect oil pump but aslo prolong the service life of main filter.
－Two-stage precision filter fitted on the pump to ensure high cleaness degree of oil acjieved promptly .
－According to different requirements,the filter precision can be selected to reach different oil rate.
－With quick-opening structure on the filter body,the filter elements can be replaced conveniently without any other tools,
the pressure gauge on the panel indicates system state and pollution degree of filter element continuously.
Technical parameter:
| Model No. | LYC-32C-* | LYC-50C-* | LYC-63C-* | LYC-100C-* | |||||
| Rated flow | L/min | 32 | 50 | 63 | 100 | ||||
| Rated voltage | Mpa | 0.6 | |||||||
| Loss of voltage | Mpa | ≤0.02 | |||||||
| Pump-in filtering precision | um | 100 | |||||||
| Pump-out filtering precision | um | 3、5、10、20 | |||||||
| Motor power | Kw | 0.75 | 1.1 | 1.1 | 2.2 | ||||
| Power supply | V | AC380V (three phase) | |||||||
| Weight | Kg | 90 | 100 | 118 | 160 | ||||
| M/C size | mm | 950×560×900 | 950×560×900 | 950×560×900 | 100×600×1130 | ||||
Note：＊: two grade filtering precision , eg:003 means 3μ
**:medium,Omission:General hydraulic oil;BH:water-glycol;V:phosphate ester.
＊＊＊:meet viscidity of medium ≤160cSt
