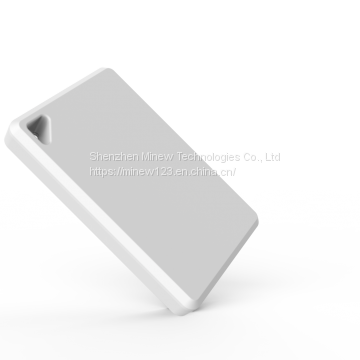

The Tag Beacon E8 is a new generation beacon that loaded Bluetooth 5.0 hardware platform, low power consumption 3-axis accelerometer (optional) and MiniBeacon Plus intelligence software.
E8 tag beacon advertises standard iBeacon, Eddystone (UID,URL,TLM) and accelerometer sensor data simultaneously. The user can configure the E8 tag beacon via configuration app BeaconSET+ as well.
Moreover, E8 tag beacon with accelerometer advertises sensor data ONLY when an object (E8 attached) is moving or after an object has fallen.
FEATURE
- Advertising iBeacon & Eddystone & Sensor data
- Unique MAC address (ITU)
- Bluetooth 5.0 chipset nRF52 series
- Low power consumption 3-axis accelerometer
- Included 1pc CR2032 coin battery replaceable
- The max. 50 meters advertising distance
- Weatherproof housing with key-chain hole
- Asset tracking
- Activity monitoring
- Inventory tracking
ACCESSORY
- Double side adhesive tape
CONFIGURATION TOOL
- BeaconSET+ (IOS & Android)
CERTIFICATION
- iBeacon MFi License (iBC-14-00582)
- FCC Regulation (FCC Part 15.)
- CE Regulations (Included EN300328/301489/60950/62479)
Item |
Value |
Remarks |
Case Color |
white |
Other colors can be customized |
Battery Model |
1 x CR2032 |
1pc CR2032 coin battery, 3.0V |
Operation Voltage |
1.8-3.6V |
DC |
Transmission Current |
5.3mA (peak current) |
Tested at 0dBm transmission power |
Transmission Range |
50 meters |
Maximum |
Sampling Interval |
900ms |
Accelerometer |
Sampling Accuracy |
+/- 2g |
Default |
Antenna |
50ohm |
On board / PCB Antenna |
Size |
32x23x 3.3 mm |
Null |
PARAMETER SETTING
Each E8 tag beacon has been pre-configured in the factory before the shipment. Here below is given the main parameters and default settings.
Type |
Item |
Default Settings |
|
iBeacon |
UUID (16 bytes) |
E2C56DB5-DFFB-48D2-B060-D0F5A71096E0 (Proximity) |
Major (2 bytes) |
0 |
|
Minor (2 bytes) |
0 |
|
|
Eddystone |
Instance ID @UID |
random (10 bytes) |
Namespace ID @UID |
random (6 bytes) |
|
URL |
https:// |
|
|
Base Parameters |
Measured Power |
-59 (0xC5) |
Radio Tx power |
6 (0dBm) |
|
Adv. Interval |
9(900mS) |
|
Beacon ID |
random, it is MAC address of beacon actually. |
|
Beacon Name |
PLUS |
|
Connectable |
yes (it is configuration mode) |
|
Password |
minew123 (Allowing only 8 characters) |
|
|
Acc Sensor |
x-axis |
1. It depends on beacon’s real status, static or movement 2. Only working when beacon with accelerometer sensor |
y-axis | ||
z-axis | ||
|
Extra Function |
Reset factory |
available |
Power off |
available |
|
Modify password |
available |
|
Remove password |
available |
|
Update firmware |
available |
