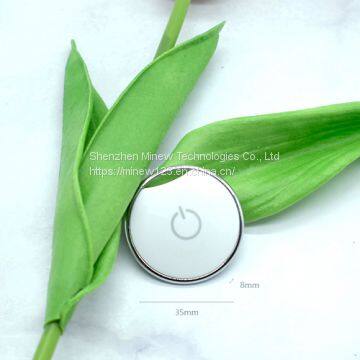

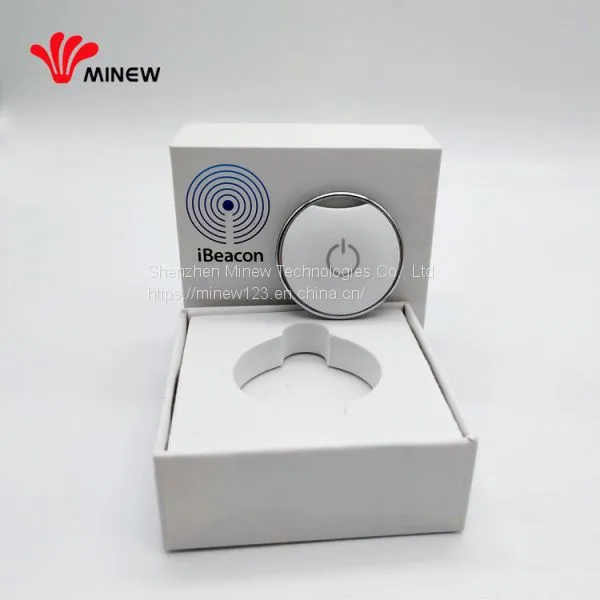

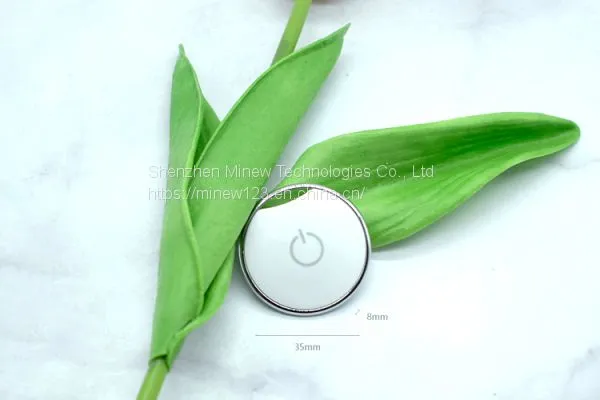

The UFO beacon D15N is a new generation beacon that loaded Bluetooth 5.0 hardware platform, hidden push button and MiniBeacon Plus intelligence software.
D15N UFO beacon advertises standard iBeacon and Eddystone (UID,URL,TLM) simultaneously. The user can configure D15N UFO beacon via configuration app BeaconSET+ as well.
Moreover, the push button can be defined to advertise different data to meet different application by click, double-click and triple-click. For example, the single click can be used to the panic / emergency / SOS button. For more functions, please refer to the configuration instruction.
FEATURE
- Advertise iBeacon & Eddystone simultaneously
- Unique MAC address (ITU)
- Bluetooth 5.0 chipset nRF52 series
- The max. 50 meters advertising distance
- Weatherproof housing with key-chain hole
- Push button for emergency using
ELECTRONIC PARAMETER
Item |
Value |
Remarks |
Case Color |
white |
Other colors can be customized |
Battery Model |
1 x CR2025 |
1pc CR2025 coin battery, 85mAh, 3.0V |
Operation Voltage |
1.8-3.9V |
DC |
Transmission Circuit |
5.3mA (Max.) |
Tested at 0dBm transmission power |
Transmission Range |
50 meters |
Maximum |
Antenna |
50ohm |
On board / PCB Antenna |
Net Weight |
7.0g |
With battery |
Size |
Ø35 x 8.2 mm |
Null |
