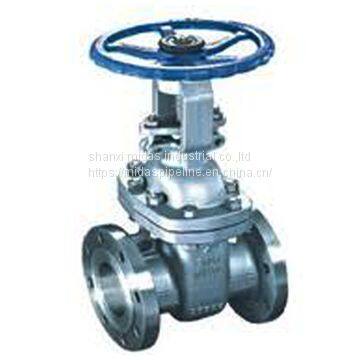

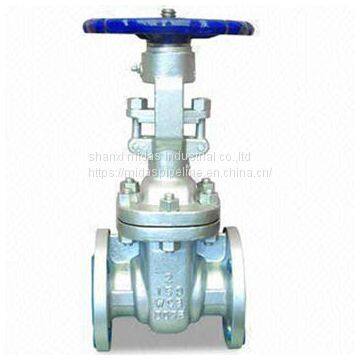

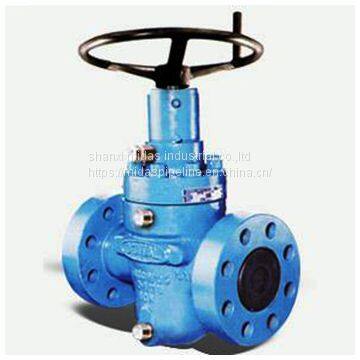

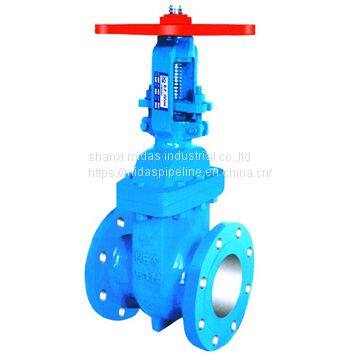

Made in China quality Gate Valve with Prices
USD $600 - $800
/ Ton
1 Ton(Min.Order)
- 10000 Ton / Tons per Month
- TIANJIN,QINGDAO
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 15 days
You May Like
Product Details
Brand Name: | MDS | Place of Origin: | China | Model Number: | MDS 07 |
Application: | General | Structure: | Gate | Standard or Nonstandard: | Standard |
Pressure: | Medium Pressure | Power: | Hydraulic | Port Size: | DN40-DN600 |
Media: | Water | Temperature of Media: | Medium Temperature |
Product Description
1 | Product Name | PN10/16/25 Ductile iron DIN 3352 rising stem gate valve |
2 | Port Size | DN40-DN600 |
3 | Media | Water |
4 | Temperature | Medium Temperature |
5 | Power | Hydraulic |
6 | Pressure | PN10/PN16/PN25 |
7 | Structure | Gate |
8. | Payment | T/T, L/C,etc |
9 | Packing | Plywooden case |
2.MAIN PARTS AND MATERIALS
NO. | PART NAME | MATERIAL |
1 | BODY | DUCTILE IRON |
2 | WEDGE | DUCTILE IRON |
3 | STEM NUT | BRASS |
4 | STEM | STAINLESS STEEL |
5 | GASKET | NBR |
6 | BONNET | DUCTILE IRON |
7 | BONNET BOLT | CARBON STEEL |
8 | O-RING | NBR |
9 | LOCATING RING | BRASS |
10 | O-RING | NBR |
11 | BONNET NUT | BRASS |
12 | MINIPAD | TFL |
13 | DUST RING | NBR |
14 | WHEEL | DUCTILE IRON |
15 | WASHER | CARBON STEEL |
16 | BOLT | CARBON STEEL |
Features:
Product information: the gate valves supplied are mainly used for adjusting water, steam, oil, gas, and natural gas in chemical industries |
Standards: AWWA, DIN3352 F4/F5, BS5163, BS5150 |
Connection type: flanged type, push-on type, mechanical joint type, plain ends type |
Pipe wall thickness: K7/K8/K8/K12/C40, /C30/C25 |
Joint Type: Tyton / push-on joint, K type / mechanical joint, self-anchored / restrained joint |
Gasket : SBR, EPDM, NBR |
Material:
Body : Ductile Iron GGG500-7 |
Wedge : D/I , core fully vulcanized with NBR or EPDM rubber |
Wedge Nut : Brass |
Stem : Stainless steel , BS970 431S29 or DIN17440x20Cr13 |
Gasket : NBR |
Bonnet : GGG500-7 |
O ring : NBR |
Washer : Carbon steel or Stainless steel |
Size: 50-400mm/2" - 16" |
Pressure grade: PN10, PN16 |
Coating: |
1):Fusion-bonded epoxy 200-250 microns inside and out side |
2):Coating as per customers' requirement |
packing: |
carton for each item , wooden boxes outside |
