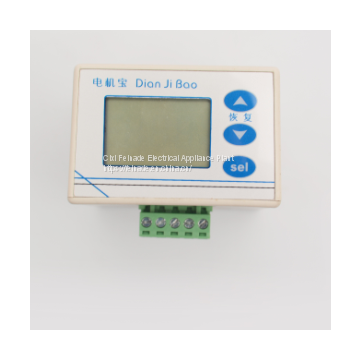

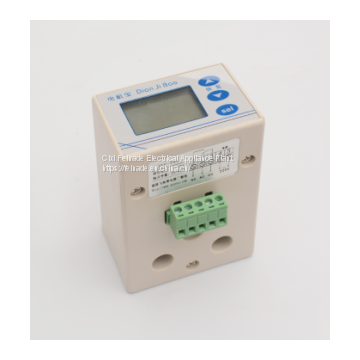

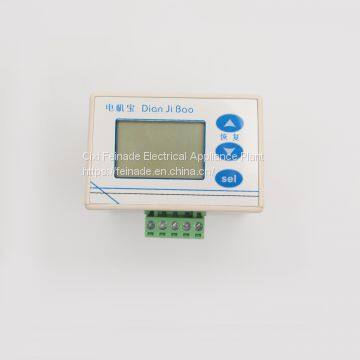

Trustworthy Current Monitoring Relay JFY-701

Trustworthy Current Monitoring Relay JFY-701 thumbnail-1
Trustworthy Current Monitoring Relay JFY-701 thumbnail-2
Trustworthy Current Monitoring Relay JFY-701 thumbnail-3
Trustworthy Current Monitoring Relay JFY-701 thumbnail-4
Trustworthy Current Monitoring Relay JFY-701 thumbnail-5
Trustworthy Current Monitoring Relay JFY-701 photo-1
Trustworthy Current Monitoring Relay JFY-701 photo-2
Trustworthy Current Monitoring Relay JFY-701 photo-3
Trustworthy Current Monitoring Relay JFY-701 photo-4
Trustworthy Current Monitoring Relay JFY-701 photo-5
US$ 0.9 - 999 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
chfnad
Place of Origin:
China
Model Number:
JFY-701
Contact Supplier Request Quote Chat Now
Cixi Feinade Electrical Appliance Plant
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo,shanghai,wenzhou
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name chfnad
Place of Origin China
Model Number JFY-701
Size Miniature
Usage Protective
Contact Load High Power
Protect Feature Sealed
Theory Electromagnetic Relay

echnical data

Type JFY-701
Current range 1-100A
Time-current characteristic Definite time
Rated voltage 220VAC,50/60Hz
Measurement error 1%
Protective functions Overcurrent,locked-rotor,phase loss, phase unbalance
Additional functions power-on delay,auto reset
Indicators LCD indicating current,operation status
Output contacts 1 C/O
Contact capacity 5A 250VAC
Dimensions (L *W * D) 70*44*98mm
Mounting screw fixing

 Features

- Compact modular size  with integrative structure

  – Built-in LCD and keypad afford a precise,digital setting

  – Three-phase monitoring, locked-rotor,overcurrent, phase loss, phase unbalance

  – Adjustable reset mode:automatic reset or manual reset

  – Adjustable power-on delay

  – 1 C/O contact



Protective Functions

  – Short-circuit          – Locked-rotor           – Overcurrent

  – Phase loss          – Phase unbalance



Typical Applications

    • Pumps     • Fans   • Blowers     • Motors    • Compressors



Approvals

• CE   • ROHS
