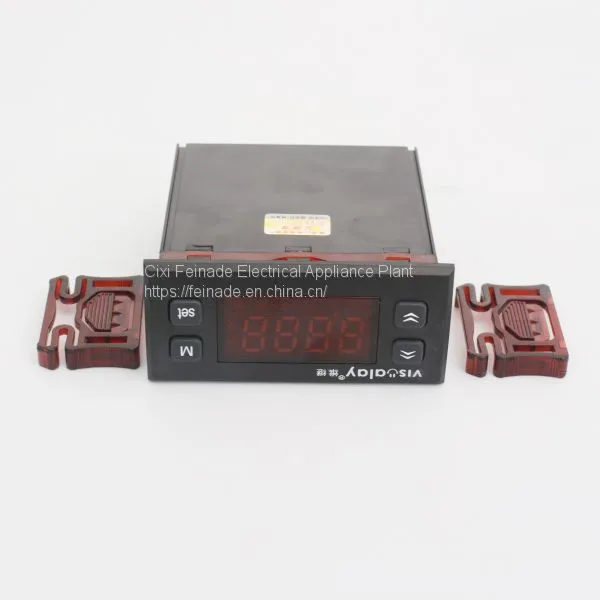

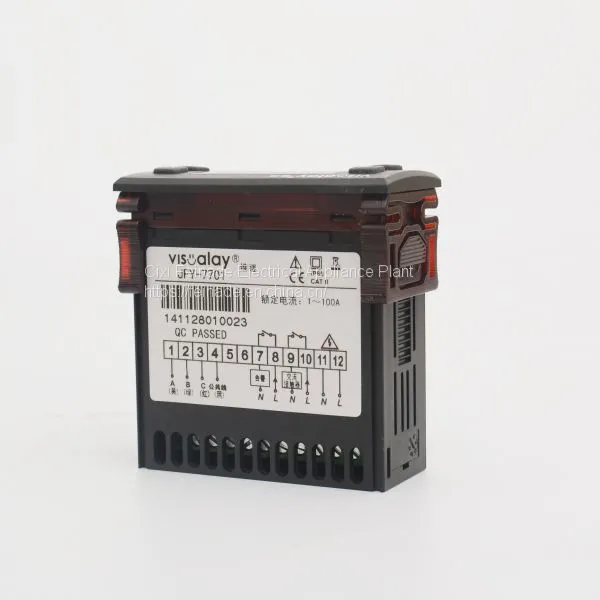

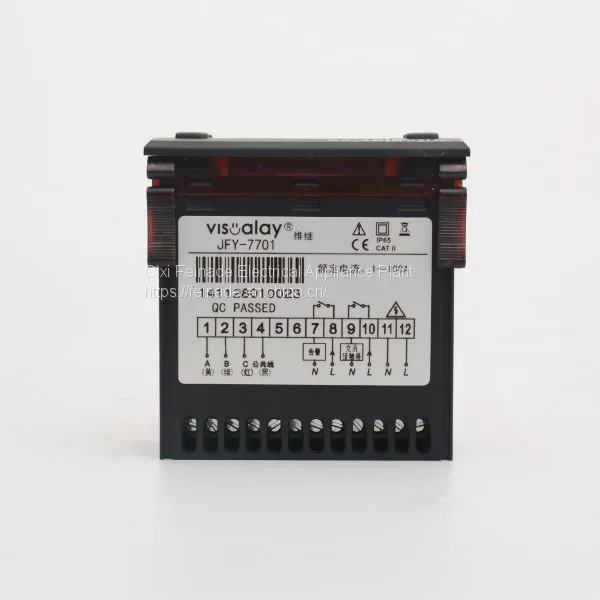

Fault Record,three Phase Imbalance Current Monitoring Relay JFY-7701
US$ 8 - 25
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
chfnad
Place of Origin:
China
Model Number:
JFY-7701
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo,wenzhou,shanghai
Delivery Detail:
10 days
Related Products
-
CURRENT MONITORING RELAY NDB-1US$ 8 - 25MOQ: 10 Pieces -
100-1000A Current Range Current Monitoring Relay JFY-811US$ 8 - 25MOQ: 10 Pieces
-
LED Digital Tube Display Current Monitoring Relay JFY-801US$ 8 - 25MOQ: 10 Pieces
-
0.1-100A Current Range Current Monitoring Relay JFY-701US$ 8 - 25MOQ: 10 Pieces
-
WD-P76 Multi Function LeD Display Digit AmmeterUS$ 8 - 25MOQ: 10 Pieces
Brand Name
chfnad
Place of Origin
China
Model Number
JFY-7701
Size
Miniature
Usage
Protective
Contact Load
High Power
Protect Feature
Sealed
Theory
Electromagnetic Relay
Product Details
3.1 Key Specifications/Special Features
Technical data
Type |
JFY-7701 |
Current range |
1-100A |
Time-current characteristic |
Definite time |
Rated voltage |
220VAC,50/60Hz |
Measurement error |
1% |
Protective functions |
Overcurrent,undervurrent, locked-rotor,phase loss, phase unbalance |
Additional functions |
power-on delay,auto reset |
Indicators |
LED indicating current,operation status |
Output contacts |
1 C/O |
Contact capacity |
5A 250VAC |
Dimensions (L x W x D) |
70*35*72 mm |
Mounting |
screw fixing |
