High Speed Dry Laminating Machine
US$ 1 - 1
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SHANZHANG
Place of Origin:
China
Model Number:
SLD-250
Payment & Shipping
Payment Methods:
Port of Shipment:
Shantou Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
SHANZHANG
Place of Origin
China
Model Number
SLD-250
Type
Other, Dry laminator
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Weight
35,000kg
Dimension(L*W*H)
14500mm*3500m*3600mm
Condition
New
Power(W)
327kw
Automatic Grade
Automatic

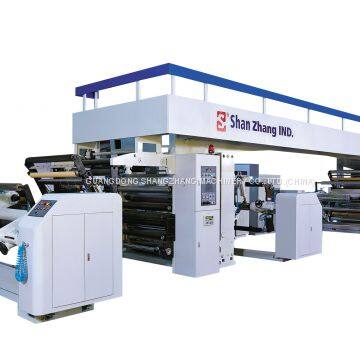

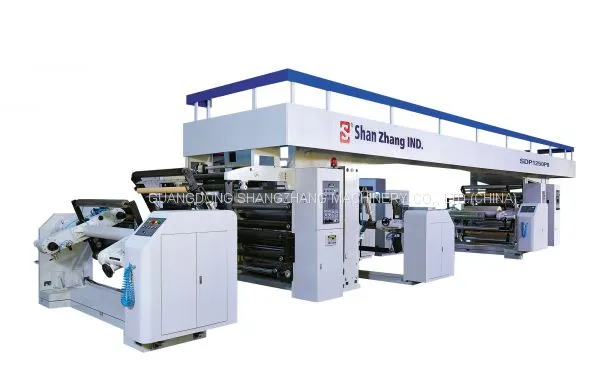

High Speed Dry Laminating Machine (SHANZHANG Brand)
Model: SLD-250
I. Suitable Printing Materials :
-
First substrate: OPP/BOPP PET PA(Nylon) film
Second substrate: PE/CPE Aluminum foil, CPP film
II. Technical Parameters :
-Suitable width of material: 1050/1250mm(Max.1600mm, size can be customized)
-Max. Printing speed: 200-250m / min
-Diameter of unwinding & rewinding :φ800mm
-Power of the heating supply (oven):Electric energy supply, steam supply, thermal conductive oil supply
-Tension control range: 3-30kg/full width
III. Main Features :

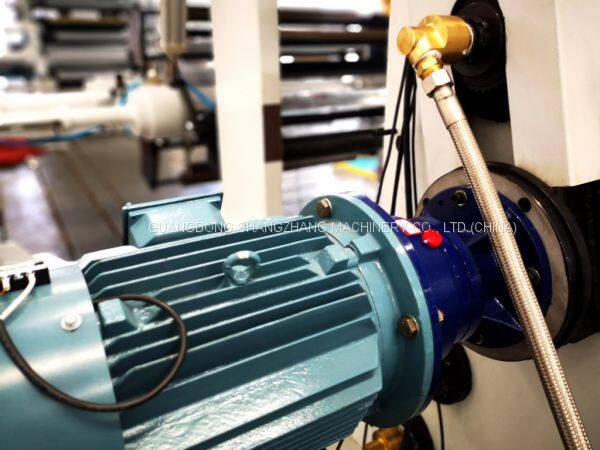

-Motor variable-frequency vector control

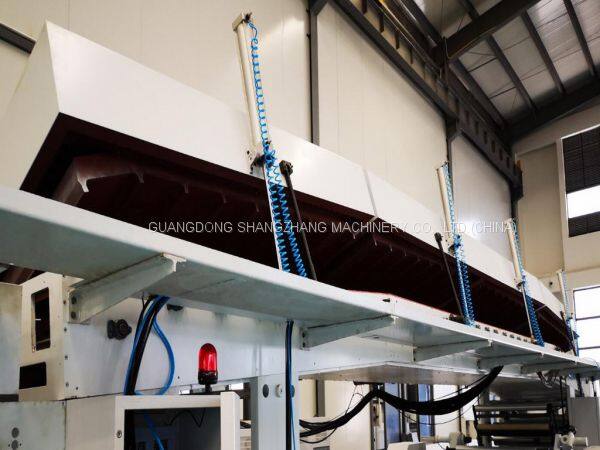

-Efficient and energy-saving drying system

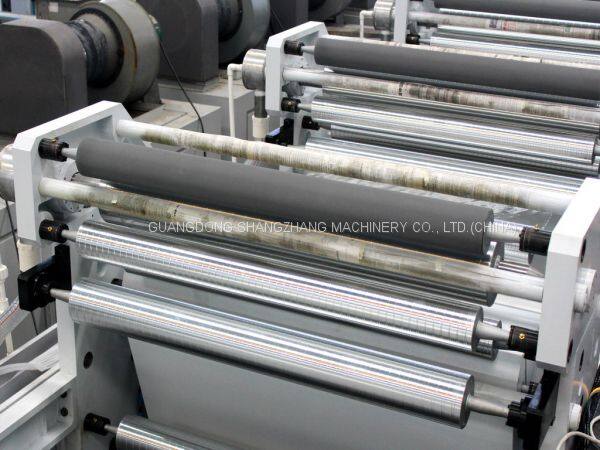

-Thermal recirculation composite roller

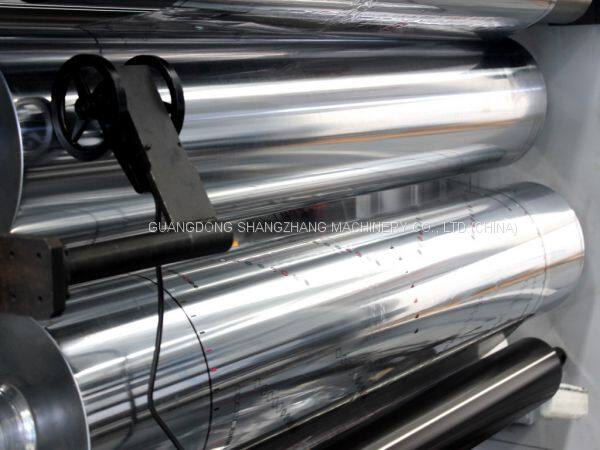

-Large-angle cooling roller to increase the cooling length
