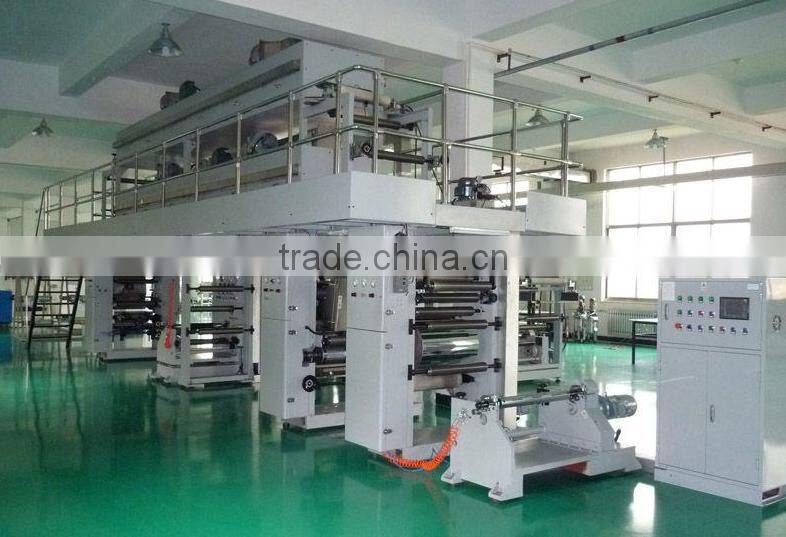

Dry  lamination machine(130m/min)



Usage:
This machine is suitable for laminating plastic-plastic.paper-plastic,paper-paper and aluminum foils and other laminatd materials in the packing industry.

Performance and Features:

1.Whole machine controlled by PLC controller, with high running reliability and stability.
2.Coating and laminating of main machine are of double-shaft synchronous frequency conversion and feedback control.
3.Anilox roller with doctor blade for coating, various of anilox rollers available for different coating amount.
4.Imported tension controller for four section constant tension control.
5.Duplex turret type unwinder, pre-drive with pre-tension for non-stop shaft exchange
6.Duplex turret type rewinder, pre-drive with automatically web cutting, pre-tension for non-stop shaft exchange
7.Movable doctor blade with pneumatic back pressure
8.Four independent constant temperature section drying system with stainless infra heating tube and air blower, adjustable inner circulated intake and exhaust device available to ensure the full dryness of web
9.Four independent constant temperature section drying system with stainless infra heating tube and air blower, adjustable inner circulated intake and exhaust device available to ensure the full dryness of web
10.Pre-heating before laminating, water cooling roller for laminated web.
11.Air inflatable Shaft for web loading/unloading


Specification:




Model No. GFD-1000

Effective Laminating Width 1000mm

Max.width of web 1050mm

Max.Laminating Speed 130m/min

Max. Mechanical Speed 150m/min

Diameter of Unwind/Rewind 600mm

Diameter of Roll Core 76mm

Layer Quantity of Laminated 2 layer

Tension Control Range 4-10kg(Perset)

Total power 140kw

Heating power of oven 84Kw(21×4)

Weight of machine 9500kg

Machine Dimension 12200×4120×3400mm






Remark:

We also have wider width machine,if you want to do wider material,please feel free to contact us,we will provide you details.thanks.
