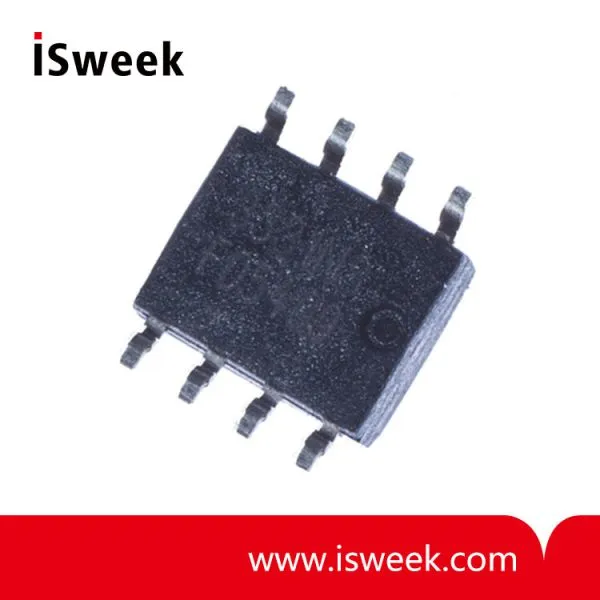

SPD100ABsmd8 Pressure Sensor
Gas Pressure Sensor For Absolute Type Measurement IN SO8
The SPD100ABsmd8 series SPD Absolute Pressure sensors are designed for gas pressure sensitive applications and are encapsulated in a miniature Smd8-pins package. This sensor provides a low-cost solution for high volume applications. Due to automatic production price is very low and nearby the price of a bare die without the need for the customer to handle dies by bonding, etc. Other pressure ranges on request available.
SPD100ABsmd8 Absolute Gas Pressure Sensor Electrical Characteristics
(measured @5V exc. voltage and 25 °C, with nitrogen)
Parameter |
Min |
Typ |
Max |
Units |
Excitation Voltage |
5 |
V |
||
Excitation Current |
- |
1 |
mA |
|
Pressure range(N2) |
0 |
100 |
psi |
|
Span (@100 PSI) |
70 |
100 |
130 |
mV |
Offset |
-30 |
30 |
mV |
|
Temp Coeff. Span 1) |
-17.5 |
-19.5 |
-21.5 |
%FS/100°C |
Temp Coeff. Offset 1) |
-7 |
7 |
%FS/100°C |
|
Linearity 2) |
±0.1 |
%FS |
||
Bridge impedance |
4 |
5 |
6 |
KΩ |
Operating temperature |
-40 |
125 |
°C |
|
Storage temperature |
-50 |
135 |
°C |
|
Over pressure |
3x |
FS |
1) Temperature coefficient measured between 0 to 50°C
2) Measured Best Fit Straight Line
