22 Gauge Hot Dipped Galvanised Welded Wire Mesh Panel

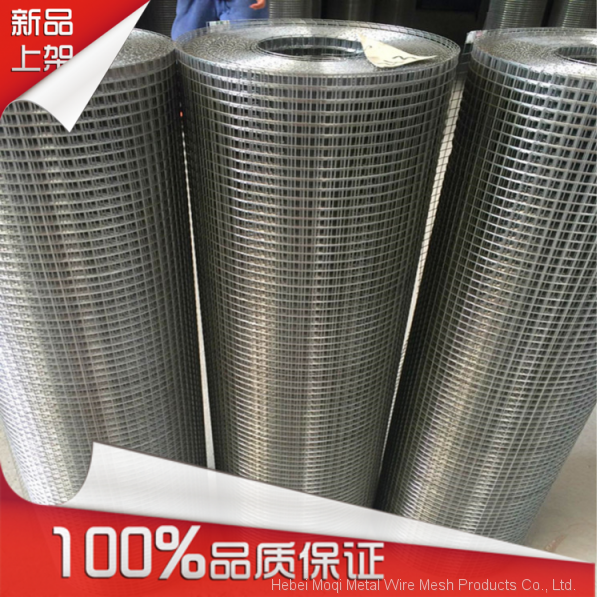

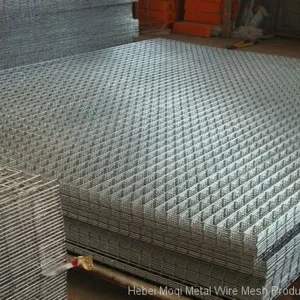

22 Gauge Hot Dipped Galvanised Welded Wire Mesh Panel photo-1

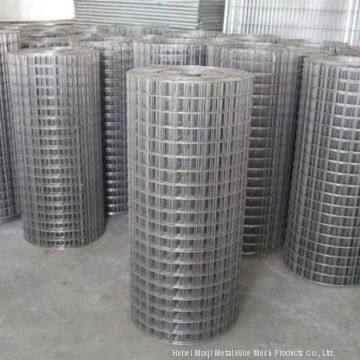

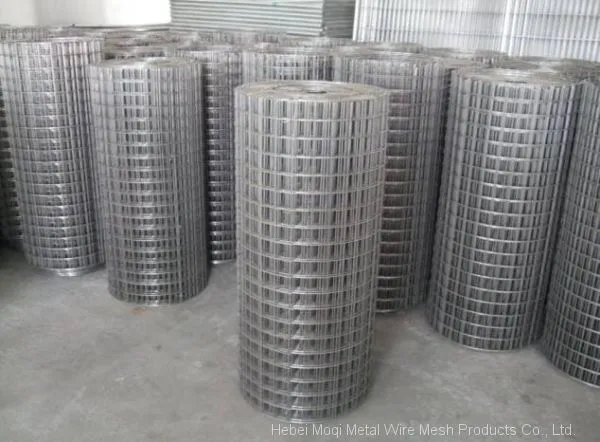

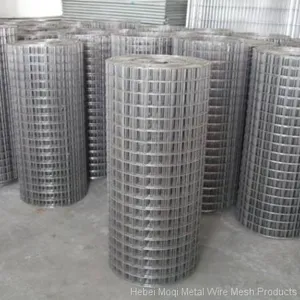

22 Gauge Hot Dipped Galvanised Welded Wire Mesh Panel photo-2

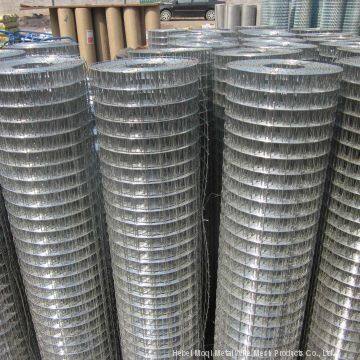

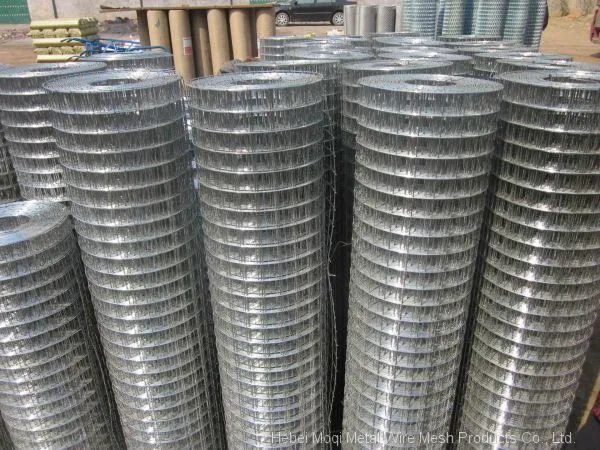

22 Gauge Hot Dipped Galvanised Welded Wire Mesh Panel photo-3

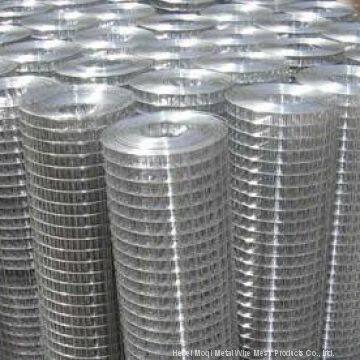

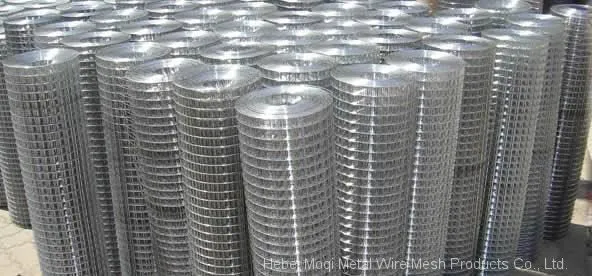

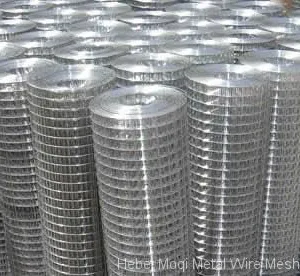

22 Gauge Hot Dipped Galvanised Welded Wire Mesh Panel photo-4
US$ 10 - 20.98 MOQ: 100 Rolls
Key Specifications
Get Latest Price
Brand Name:
MOQI
Place of Origin:
China
Model Number:
WWM
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
20 days
Brand Name MOQI
Place of Origin China
Model Number WWM
Material Low-Carbon Iron Wire
Type Welded Mesh
Application Construction Wire Mesh
Wire Gauge 2.0-4.0mm
Material Low-Carbon Iron Wire
Aperture 3/8“-4“
Hole Shape Square

welded wire mesh




Varieties availableAnnealed wire then PVC coated; Electric galvanized then PVC coated ; hot-dipped galvanized then PVC coated.
MaterialLow carbon steel welded wire mesh, PVC coated. stainless steel welded wire mesh, Hot dipped Galvanized steel welded wire mesh.
Mesh25mm – 200mm
Wire diameter0.5mm – 5mm
Width*Length1-2.5m* 1-12m
Packingin rolls by waterproof paper
SurfacePVC coated, stainless steel polished, hot dipped galvanized, PE





Data of  welded wire mesh:


Surface treatment:

1) --hot sale PVC welded wire mesh/ plastic pvc welded wire mesh/ green PVC powder welded wire mesh/ hot dip galvanization after/before welding/electro-galvanization after/before welding

2)--PVC Coated Welded Wire Mesh: we supply green colour, blue colour, white colour, black colour, etc. Up to customer's equirement

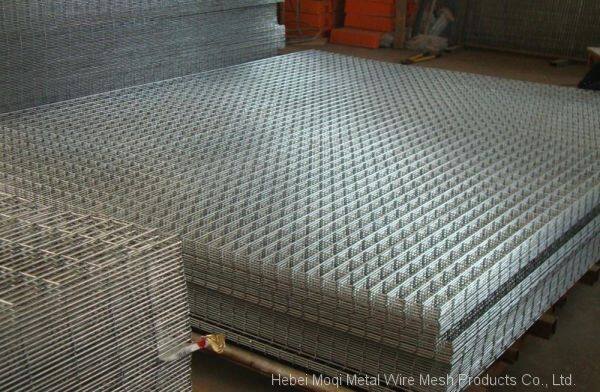

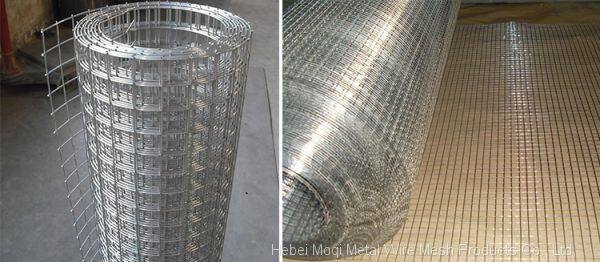

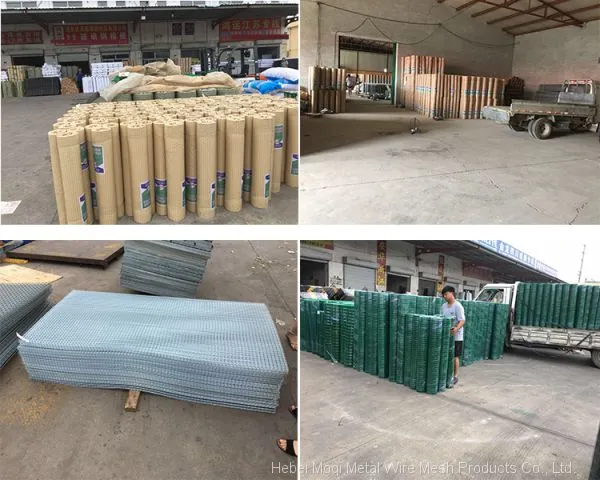

Product Show







PVC Coated Welded Mesh:

                      Opening

Wire Diameter(BWG)

  In inch

  In metric unit(mm)

1/4"x1/4"

   6.35mx6.35mm

 21,22,23,24,24,25

1/2"x1/2"

   12.7mmx12.7mm

 16,17,18,19,20,21

3/4"x3/4"

  19mmx19mm

 16,17,18,19,20,21

 1"x1"

   25.4mmx25.4mm

 15,16,17,18,19,20

Technical Note:

1.Standard roll length:30m;width:0.5m to 2.5
2.Special sizes avaliable as request
3.Packing:in wooden pallet or in rolls .Custom packing available at request





Galvanized fencing mesh

Opening

Wire diameter (BWG)

In inch

Metric unit (mm)

2''×3''

50mm×70mm

2.0mm,2.5mm,1.65mm

3''×3''

75×75mm

2.67mm,2.41mm,2.11mm,1.83mm,1.65mm

2''×4''

50mm×100mm

2.11mm,2.5mm

4''×4''

100mm×100mm

2.0mm,2.5mm


Welded Wire Mesh Process:

PVC coated after welded mesh

Electric galvanized before welded mesh
Electric galvanized after welded mesh
Hot-dipped galvanized before welded mesh
Hot-dipped galvanized after welded mesh
Iron/galvanized wire+PVC coated
Stainless steel 304, 316 wire



Welded Wire Mesh Specifications

Wire Materials:Mild steel wire, stainless steel wire, galvanized steel wire

width:0.5-1.8m

Length: 30m

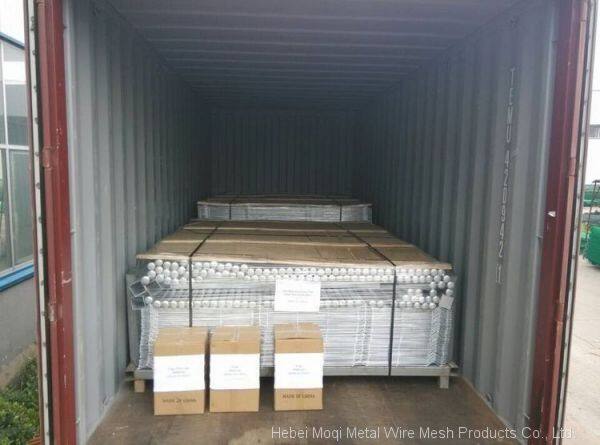

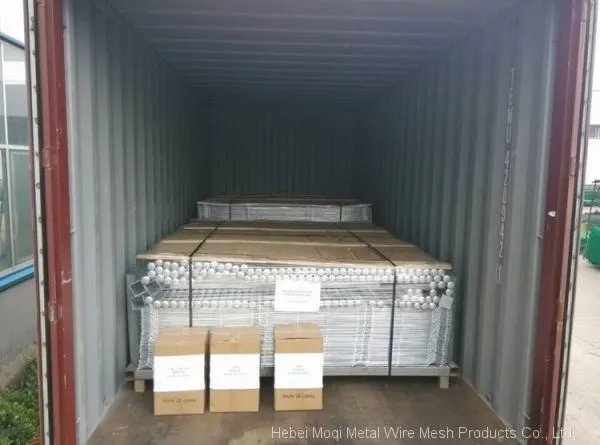

Packaging&Delivery
