MOQI Welded Wire Mesh Panels Can be Used for Small Pets/enclosure Cage

MOQI Welded Wire Mesh Panels Can be Used for Small Pets/enclosure Cage thumbnail-1
MOQI Welded Wire Mesh Panels Can be Used for Small Pets/enclosure Cage thumbnail-2
MOQI Welded Wire Mesh Panels Can be Used for Small Pets/enclosure Cage thumbnail-3
MOQI Welded Wire Mesh Panels Can be Used for Small Pets/enclosure Cage thumbnail-4
MOQI Welded Wire Mesh Panels Can be Used for Small Pets/enclosure Cage thumbnail-5
MOQI Welded Wire Mesh Panels Can be Used for Small Pets/enclosure Cage photo-1
MOQI Welded Wire Mesh Panels Can be Used for Small Pets/enclosure Cage photo-2
MOQI Welded Wire Mesh Panels Can be Used for Small Pets/enclosure Cage photo-3

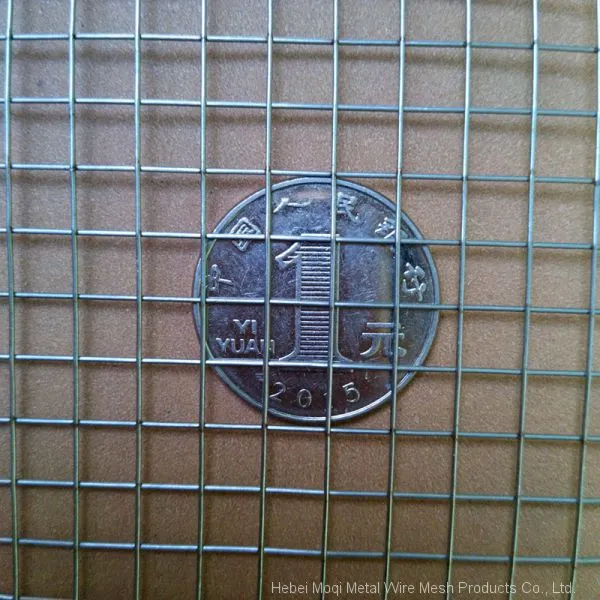

MOQI Welded Wire Mesh Panels Can be Used for Small Pets/enclosure Cage photo-4

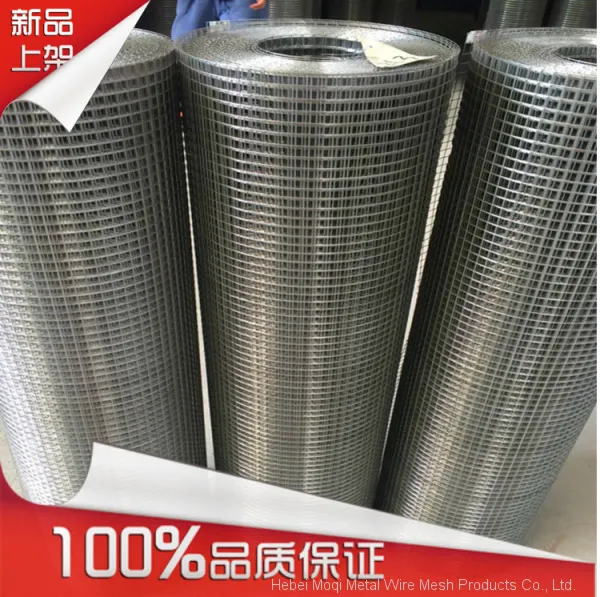

MOQI Welded Wire Mesh Panels Can be Used for Small Pets/enclosure Cage photo-5
US$ 22 - 25 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
MOQI
Place of Origin:
China
Model Number:
YD-001
Contact Supplier Request Quote Chat Now
Hebei Moqi Metal Wire Mesh Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MOQI
Place of Origin China
Model Number YD-001
Material Low-Carbon Iron Wire
Type Welded Mesh
Application Construction Wire Mesh
Wire Gauge 2.0-4.0mm
Material Low-Carbon Iron Wire
Aperture 50x50mm
Hole Shape Square

welded wire mesh

Welded wire mesh is made of high-quality low-carbon steel wire and then cold-plated (plating), hot-dip plating, PVC coating and other surface passivation and plasticization. It achieves flat surface, uniform mesh,  firm solder joints, good local machining performance, stability, good weather resistance, and good corrosion resistance.



Product Description

Material:Low Carbon Steel wire

Mesh:1/4"-4"

Diameter: 0.5-12mm

Width: 0.5-1.8m and as you need

Technique: Welded

 Packing: 1.water-proof paper then shrinked  plastic bag

2. Special packing as your request

 Type: Panel an roll

 Finish:Hot dipped galvanized ,Electro galvanized,PVC coated

Surface treatment:

1) --hot sale PVC welded wire mesh/ plastic pvc welded wire mesh/ green PVC powder welded wire mesh/ hot dip galvanization after/before welding/electro-galvanization after/before welding

2)--PVC Coated Welded Wire Mesh: we supply green colour, blue colour, white colour, black colour, etc. Up to customer's equirement

Common sizes


MESH

WIRE DIAMETER
(BWG)

WIDTH

LENGTH

(INCH)

(MM)

1/4" × 1/4"

6.35 × 6.35

22,23,24,25

24", 36", 48", 60",72"
OR
0.5M, 0.6M, 0.7M, 0.8M, 1.0M, 1.2M, 1.5M, 1.8M, 2.0M

10', 25', 50', 100', 150'
OR
5M, 10M, 25M, 30M, 45M

3/8" × 3/8"

10.6 × 10.6

19,20,21,22

1/2"× 1/2"

12.7 × 12.7

16,17,18,19,20,21,22,23,24

5/8" × 5/8"

16 × 16

18,19,20,21,22

3/4" × 3/4"

19 × 19

16,17,18,19,20,21

1" × 1/2"

25.4 × 12.7

16,17,18,19,20,21

1" × 1"

25.4  x 25.4

14,15,16,17,18,19,20

1-1/2" × 1-1/2"

38  x  38

14,15,16,17,18,19

1" X 2"

25.4 × 50.8

14,15,16,17,18,19

2" × 2"

50.8 × 50.8

14,15,16,17,18

2" × 3"

50.8 x 76

14,15,16

4" × 4"

101.6  x 101.6

12,14,15,16

6" × 6"

152.4 x 152.4

10,12,14,16

8" × 3/8"

10.6 × 10.6

19,20,21,22

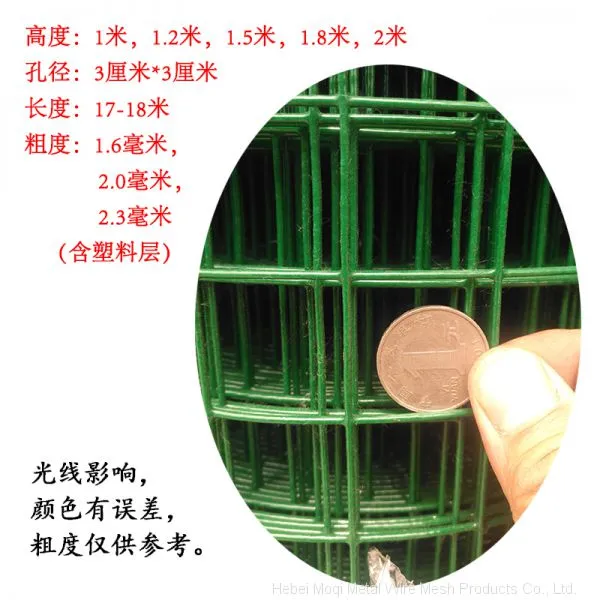

PVC Coated Welded Mesh:

                      Opening

Wire Diameter(BWG)

  In inch

  In metric unit(mm)

1/4"x1/4"

   6.35mx6.35mm

 21,22,23,24,24,25

1/2"x1/2"

   12.7mmx12.7mm

 16,17,18,19,20,21

3/4"x3/4"

  19mmx19mm

 16,17,18,19,20,21

 1"x1"

   25.4mmx25.4mm

 15,16,17,18,19,20

Technical Note:

1.Standard roll length:30m;width:0.5m to 2.5
2.Special sizes avaliable as request
3.Packing:in wooden pallet or in rolls .Custom packing available at request



Galvanized Welded Wire Mesh

Opening

Wire diameter (BWG)

In inch

Metric unit (mm)

2''×3''

50mm×70mm

2.0mm,2.5mm,1.65mm

3''×3''

75×75mm

2.67mm,2.41mm,2.11mm,1.83mm,1.65mm

2''×4''

50mm×100mm

2.11mm,2.5mm

4''×4''

100mm×100mm

2.0mm,2.5mm

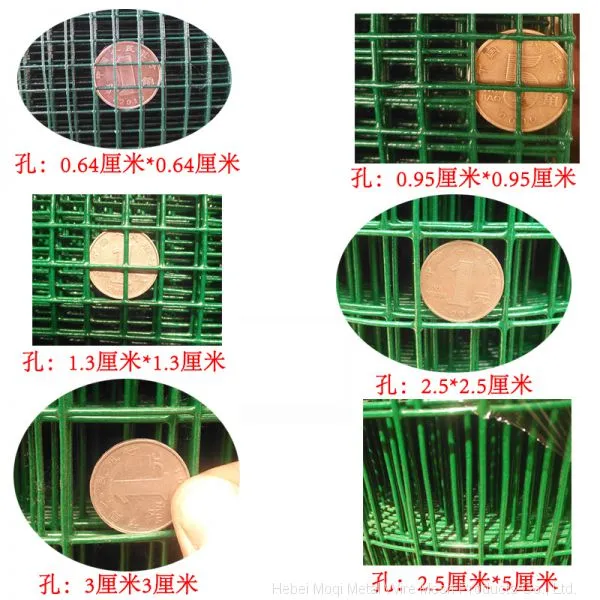

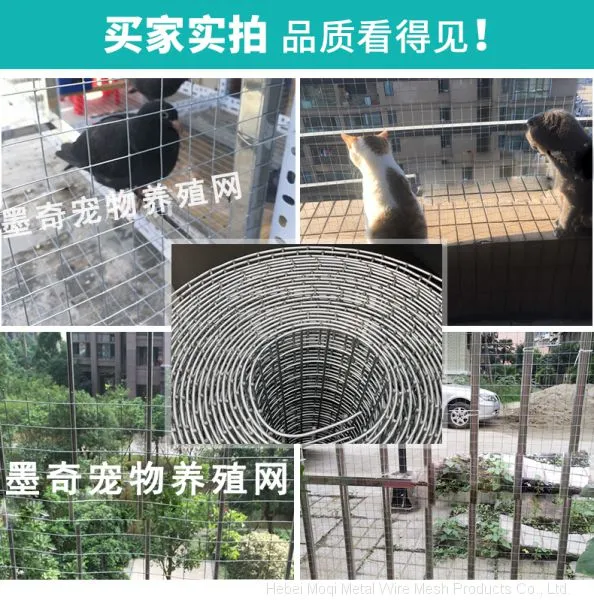

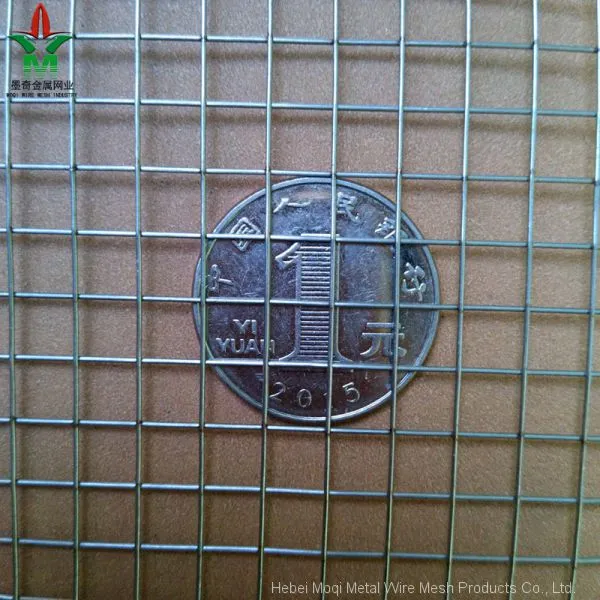

Product Show

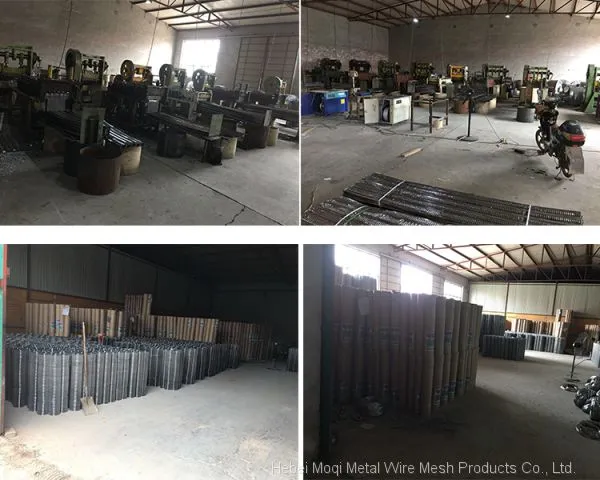

Production workshop

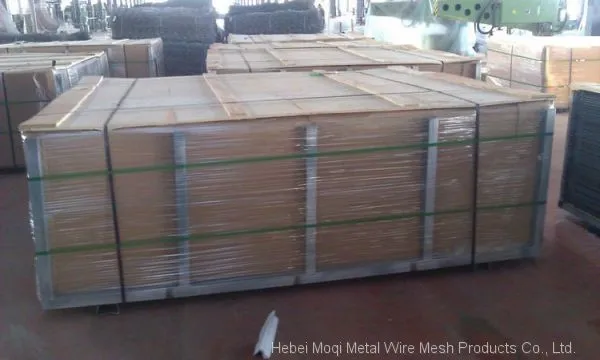

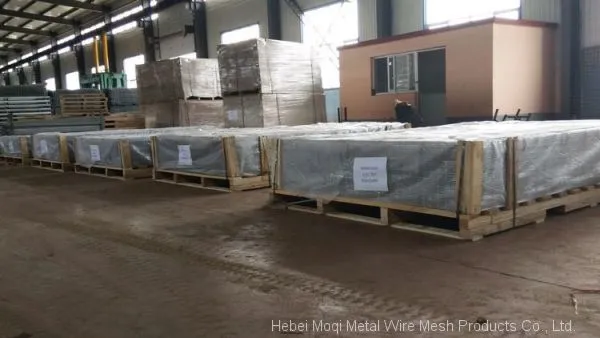

Packing&Delivery

FAQ

1.How much about your annual production capacity?
   More than 2000 Tons

2.What makes your products different from other company's?
MOQI can provide free design service, warranty service, with strictly quality control and very competitive price.

3.Can you make custom panels if I have a design in mind?
Yes, most of our products for exporting were manufacture to specs.

4.Do you offer a warranty on your products?
Yes, for PVDF coating product we can provide more than 10years warranty time

5.What type of materials do you use for your products?
Carbon steel plate,Stainless steel plate,Aluminum and Aluminum Alloy plate,Cooper plate,Galvanized plate etc.
Special material also available

6.Is there quality control on all production lines?
Yes,all production line have adequate quality control
