Model 1880 Multi Cylinder Kraft Paper Machine, Corrugated Paper Machine

Model 1880 multi cylinder kraft paper machine, corrugated paper machine

Product Description
Technical parameter
1. Raw material: Waste paper, wood pulp
2. Output paper: Kraft paper, corrugated paper
3. Output paper weight: 120g-250g
4. Net paper width: 2000mm
5. Copper cylinder width: 2400mm
6. Capacity: 15-20T/D
7. Working speed: 60-80m/min
8. Rail space: 2900mm
9. Drive way: Alternating current frequency conversion adjustable speed, section drive
Main machine structure:

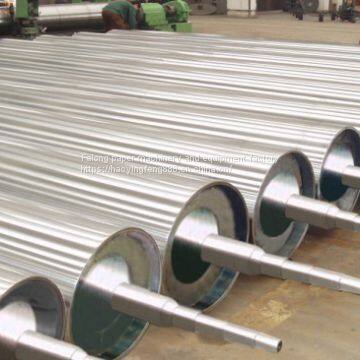

1. Cylinder section: Φ 1500mm× 2350mm stainless steel mesh 3sets; Φ 450mm× 2350mm couch roll 4sets; Reverse roll 1 set; Rubber Share hardness is 38º C± 2, pneumatic pressure device.
2. Press section: Φ 650× 2350mm natural marble roll 1set, Φ 600mm× 2350mm rubber roll 1 set, rubber hardness HSD 95º C± 2. Pneumatic pressure device.
3. Dryer section: Φ 2500mm× 2350mm alloy dryer can 2sets, Φ 600mm× 2350mm touch roll 1 set, Rubber hardness HSD 95º C± 2. Pneumatic pressure device. The second dryer can section is equipped with Inverse press roll Φ 400mm× 2350mm 1 set, Rubber hardness HSD 95º C± 2.
4. Model design: Alloy square frame, section drive, pneumatic pressure device, Alternating current frequency conversion adjustable speed.
Our factory is a high-tech enterprise which integrates the production and R&D of new-type papermaking machinery and pulping equipment. The main business now is: 787-1092-1575-1760-1880-2100-2400-2640-2880-3200-3600-4000-4750 single-cylinder, double-cylinder, multi-cylinder, long-net papermaking machine, circular net papermaking machine, cow Pulp and paper machine, culture paper machine, Xuan paper machine, carton hanging paper machine, packing corrugated paper machine, and small paper machine for small paper mills and family workshops, small environmental protection paper machine, toilet paper machine, burning paper machine, artillery paper machine, fire paper machine, yellow paper machine, etc. Various types of paper machines.
Our factory has a complete set of pulping equipment: Dutch, Knife-Roller beater, high and low concentration hydraulic pulper, energy-saving pulper, high frequency vibrating screen, vacuum pump, pulp pump, pulp mixer, bamboo roughing mill, propeller, centrifugal screen, desander, processing various rolls and auxiliary equipment (toilet paper rewinder, punching pressure) Flower machine, toilet paper, burning paper cutting machine, etc. Papermaking equipment, calender, rewinder and paper cutter.
Our factory is specialized in producing papermaking equipment, equipment in continuous updating to improve quality, established so far business sales have spread to Hebei, Henan, Hunan, Hubei, Shandong, Jiangsu, Jiangxi, Zhejiang, Fujian, Guangdong, Guangxi, Heilongjiang and other provinces and cities in Uzbekistan, Russia, Kyrgyzstan, Hasa Kistan is a foreign country.
The equipment produced by our factory is specially designed for small paper mills and household workshops to produce "low, medium and high" grade paper products. According to the model, it is divided into four types: 600-787-1092-1575. In recent years, it has achieved very good social benefits, with little investment and quick recovery of funds, which is well received by the vast number of users. Welcome. The machine uses waste books and newspapers, used books and newspapers and cartons as raw materials, can produce napkins, toilet paper, burning paper, wrapping paper, kraft paper, corrugated board and other paper, water can be recycled.
We have: the real factory experience; the true counterpart manufacturer;
The real paper-making equipment design team;
The real provinces and cities purchase equipment in the production of customers;
Real year quality warranty and nationwide door-to-door service.
Guarantee the lowest price, the best quality and the best service.  Technical personnel.
Quality is our life. We treat each other with sincerity. The company adheres to the "customer first, forge ahead" business philosophy, adhere to the "customer first" principle to provide customers with quality services.
Welcome customers to patronize.
