high carbon steel wire arc coating machine, zinc wire arc spray equipment from China
1. brief introduction of high carbon steel wire arc coating machine, zinc wire arc spray equipment from China

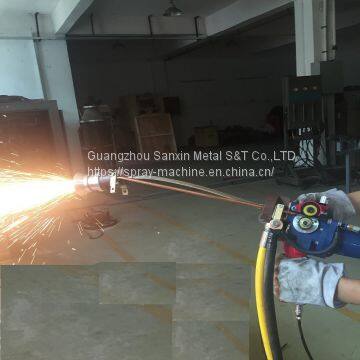

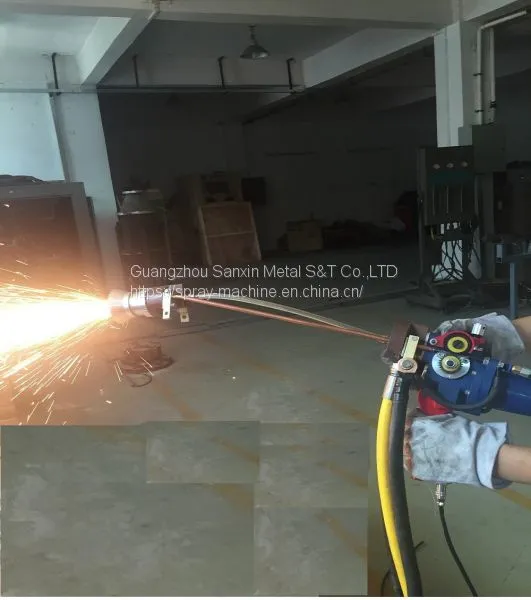

Wire arc spray machine (sometimes referred to as twin wire arc spray) can be used for spraying zinc wire, stainless steel wire, zinc aluminum alloy wire, etc. It’s a
process that uses an electric arc to melt wires. The molten metal is then
atomised with compressed air to create a spray stream that applies the
coating onto the surface being sprayed.
2. introduction of our factory
Our company is specialized in all kinds of thermal spraying equipment, such as high-speed arc spraying equipment. We have different kinds of arc spray machine, can adapt to different use environment. we can also supply various kinds of special spraying solid wire.
We are a group member of China Surface Engineering Association, also the member of the National Thermal Spraying cooperation group, we passed the ISO9001:2000 Quality Management system test, owning the thermal spraying construction certification. Our wire arc spray machine can be used for a variety of surface engineering areas projects, to improve wear-resistant, anti-corrosion, wear high-temperature, anti-cavitation, other functional thermal coating of the workpieces , or to repair the broken parts of the workpieces.
3. style of high carbon steel wire arc coating machine, zinc wire arc spray equipment from China
Here I will introduce you about the wire arc spray machine series:
(1)SX-150 power:7kw gun amount:1 gas comsuption:2.3m³/min
Application: Test and Research on a small amount of spraying and coating
(2)SX-300 power:12kw gun amount:1 gas comsuption:2.3m³/min
Application: Spray zinc and aluminum, small scale repair
(3) SX-400 power:15kw gun amount:1 gas comsuption:2.3m³/min
Application:zinc, aluminum, partial repairing process
(4)SX-500 power:18kw gun amount:1 gas comsuption:2.3m³/min
Application: hardware repairing, small project construction
(5) SX-600 power:21.6kw gun amount:1 gas comsuption:2.3m³/min
Application:spray hard alloy wire, boiler construction
(6)SX-800 power:28.8kw gun amount:2 gas comsuption:4.6m³/min
Application: Spay zinc and aluminum in big area, works automatically
(7)SX-1000 power:36kw gun amount:2 gas comsuption:4.6m³/min
Application: project construction, big quantity process, works automatically
(8) SX-2000 power:72kw gun amount:4 gas comsuption:9.2m³/min
Application: Big project construction, long time spraying project, large quantity of spraying work
(9) SX-4000 power:144kw gun amount:8 gas comsuption:18.4m³/min
Application: Big project construction, long time spraying project, large quantity of spraying work
The biggest difference of the arc spray machines above is the power ,data after code "SX "stand of electronic current ,from 150 to 4000,then power is from 7kw to 144kw accordingly ,of course ,with different price ,you can choose the economical and practical model based on your requirement ;of course, we can recommend you after discussing more details.
4.characteristics of high carbon steel wire arc coating machine, zinc wire arc spray equipment from China
SX series wire arc coating machine is easy for operation and use. Operator only needs to control a few buttons to manage the spraying process. High efficency without hassle.
Wire arc spray machine is used for spraying zinc, aluminum, copper, molybdnum, titanium, stainless steel, high carbon steel, nickel chromium alloy, wear-resistant alloy, Babbitt alloy material, etc, which can improve the wear-resistant, and an-corrosion of the workpieces, also, can repair the broken workpieces.
5. Main technical parameter of high carbon steel wire arc coating machine, zinc wire arc spray equipment from China
Spray material |
Wire diameter |
Working current |
No-load volt |
Air hat diameter |
Maximum spray efficiency |
Zinc wire |
1.2-3.0 |
80-210 |
18-30 |
6-8 |
30 |
Al wire |
1.2-3.0 |
120-240 |
25-38 |
6-8 |
9.5 |
Steel wire |
2.0 |
150-200 |
35-40 |
7-8 |
6 |
High carbon steel wire |
2.0 |
150-220 |
10-44 |
8 |
5.5 |
Stainless steel wire |
2.0 |
150-220 |
10-44 |
8 |
5.5 |
Zn-Al, Pb-Sn alloy wire |
1.2-2.0 |
80-110 |
18-28 |
7 |
Air pressure |
Input power supply |
Output efficiency |
Output no-load volt |
Power supply weight |
Regulating volt |
>0.5Mpa |
Three phase 380V,50HZ |
16KW |
18-44V |
178kg |
0-24V |
If you are interested in our wire arc spray machine,please contact me,thanks
