Audio 12 Channel Power Sequencer, Power Supply Sequence Controller

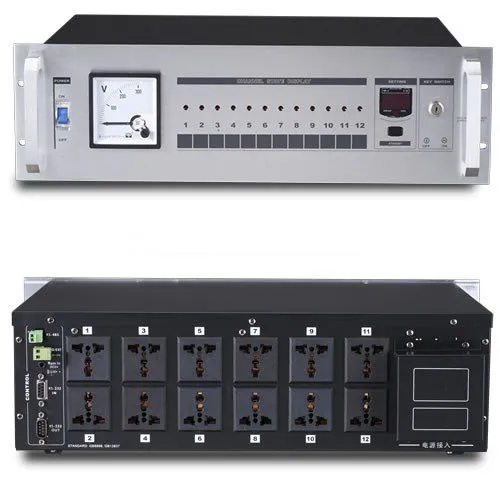

Audio 12 Channel Power Sequencer, Power Supply Sequence Controller photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Port
Delivery Detail:
15 days
Place of Origin China

Product introduction

  • Equipped with air switch and voltmeter head.

  • Designed capacity is 10KVA.

  • Large terminal access, with protective cover.

  • Ensure the power supply safety of the system.

  • The power outlet of the power outlet is AC220V/110V (10A). It is suitable for various types of plugs.

  • Reliable key lock control.


  • Non-standard external control interface :5-24DCV level control and short circuit control mode.


  • Remote control switch can be connected.


  • Can extend the connection to form a multi - machine system cascade control.


  • In this control mode, the first machine is turned on, and each power supply chronograph is started step by step.


  • The plug v-12nd provides complete power adjustment features.


  • It provides peak suppression and surge voltage protection between three phases (fire to zero, fire to earth and zero to earth).


  • Specially designed 40amp multistage EMI filter is used to clean the power supply of the system.

  • Interference signals from devices such as fluorescent lights, dimmers or wireless transmitters can leak to audio, video or control systems via ac power.


  • The filter can greatly eliminate the "electromagnetic pollution" of these interference sources to the power supply, so as to ensure the stability of the system and improve the performance.


  • The casing is 19 inches, 3U standard.

  • Aluminum panels, silver and black.

Parameters:

1.scope of application: conference engineering series (with 3~4 1000W~2500W amplifiers).USB cable with computer control function for option.

2.Maximum input current 60A

3.Single maximum output current of 30A

4.Working voltage 220V/110V 50-60hz

5.Output power outlet universal socket, in accordance with European and American standards.

6.Socket material each socket material is phosphorous copper, and is installed only after inspection.

7.The process standard of PCB circuit adopts 65% high purity tin and high-end shunt technology.

8.Power management technology with advanced surge protection (SMP).

9.Extremely high voltage turn-off technology (EVS).
