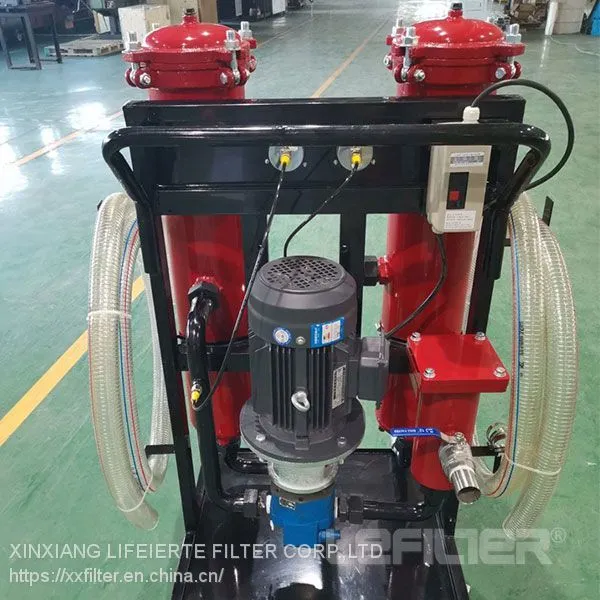

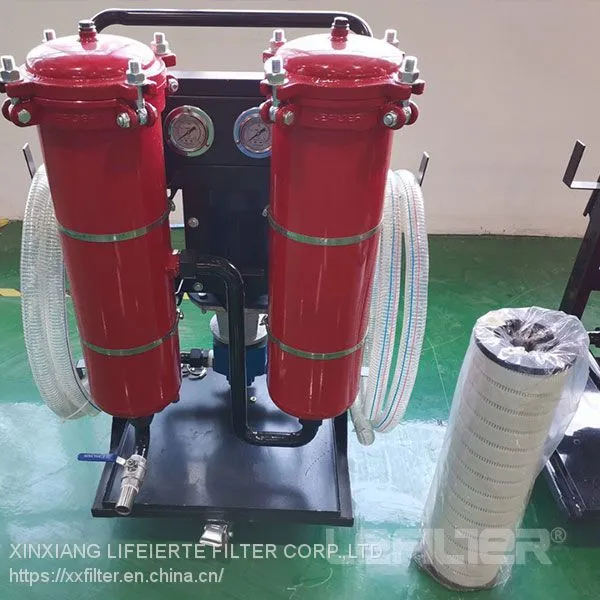

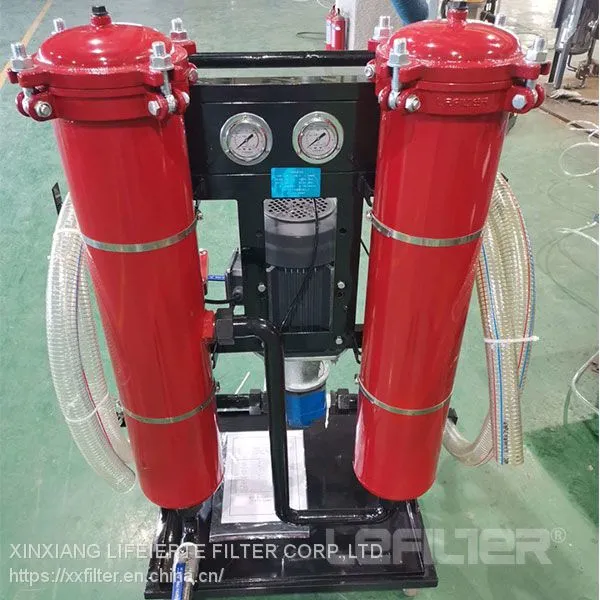

50L LYC-50B Oil Filter Lubricating/Transformer Oil Purifier Machine Housing
Applications
Filter new oil
Fill with new oil and filter
Purify the oil being used
Bypass filter for hydraulic lubrication system work
Remove water from oil
Product performance

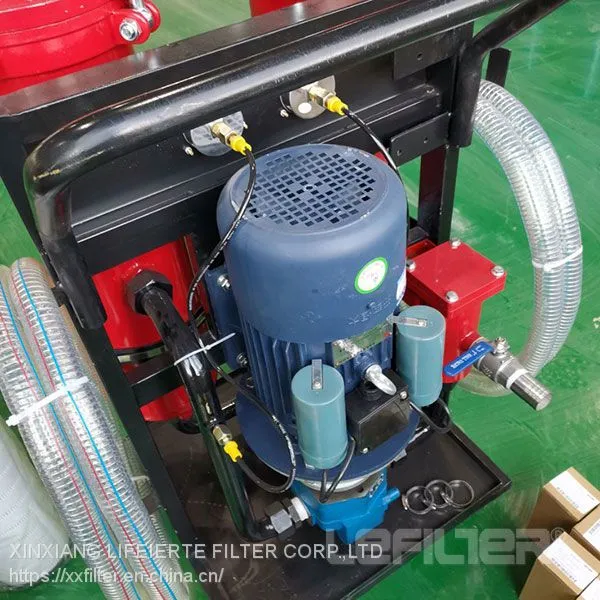

1. The oil filter includes a special gear pump driven by a motor, which has the characteristics of low noise, strong self-priming ability and stable operation.
2. The high-pressure pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system
3. Use thermal relay protection to prevent motor damage caused by motor overload
4. The coarse filter at the suction port protects the oil pump and prolongs the service life of the main filter
5. There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness
6. Pre-filtration can filter magazines with larger particles, fine filtration can filter magazines with smaller particles or moisture
7. The shell adopts quick-opening structure, which can quickly open and replace the filter element without any tools
8. There is a pressure gauge on the panel, which continuously indicates the operating status of the system and the degree of pollution of the filter element when working
Technical parameters of LYC-B Series high precision hydraulic oil filter cart
| Model | LYC-25B-*/** | LYC-32B-*/** | LYC-40B-*/** | LYC-50B-*/** | LYC-63B-*/** | LYC-100B-*/** | LYC-150B-*/** | ||
| Rated flow(L/min) | 25 | 32 | 40 | 50 | 63 | 100 | 150 | ||
| Temperature (°C) | 5-80 | ||||||||
| Recommended viscosity(CSt) | 10-160 | ||||||||
| Rated pressure(MPa) | 0.6 | ||||||||
| The original pressure loss(MPa) | ≤0.01 | ||||||||
| First coarse filtration accuracy(μm) | 100 | ||||||||
| Secondary precision filtration accuracy(μm) | 10,20,40 | ||||||||
| Third precision filtration accuracy(μm) | 3,5,10,20,40 | ||||||||
| Voltage(V) | Three-phase AC380V Two-phase AC220V | ||||||||
| Motor Power(kw) | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 | 3.0 | ||
| Weight(kg) | 46 | 78 | 90 | 96 | 102 | 120 | 160 | ||
| Dimensions(mm) | 520x350x950 | 520x350x950 | 720X680X1020 | 720X680X1020 | 720X680X1020 | 720X750X1020 | 720X750X1220 | ||
Note: * Secondary precision filter accuracy, such as 003 means 3 um
** The applicable media: generally hydraulic oil
BH: water, glycol
V: phosphate ester hydraulic fluids
Xinxiang Lifeierte Filter Corp.,Ltd （Stock code：837936）is specialized in manufacture of filters ,filter equipment,and environment system . Located in Xinxiang City-the center of Filtration in China.Lefilter has superior R & D team, professional technical team,experienced overseas sales team and perfect after-sales service system.We Lefilter people will try our best to satisfy customers' requirements.The develop philosophy of LEFILTER is “To purify environment,To serve society,To manage faithfully and To oyrsye excellence”!What’s more,there're advanced production line,test machine and R & D department.They also obtained certification like ISO9001, IQNet & CQM,SGS,CNEX etc.
