Product Description
Material: Q195/Q235
Iron wire includes: hot dipped galvanized wire, electric galvanized wire, black annealed wire
Hot dipped galvanized wire: Bwg8-Bwg36(3.8mm-0.19mm)
Zinc coating: 30-220g
Electric galvanized wire: Bwg8-Bwg38(3.8mm-0.15mm)
Zinc coating: 10-20g
Black annealed wire: Bwg8-Bwg38(3.8mm-0.15mm
Tensile strength: 300-550Mpa
Key words: black annealed binding wire, annealed back wire, annealed wire, black annealed iron wire, black annealed wire, black binding wire

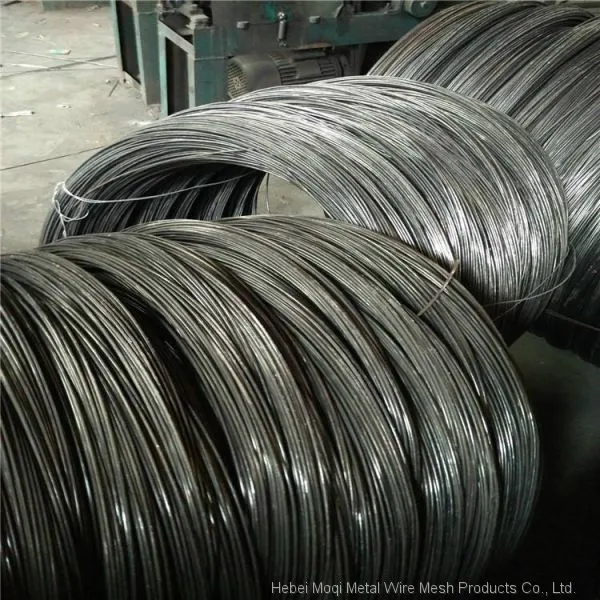

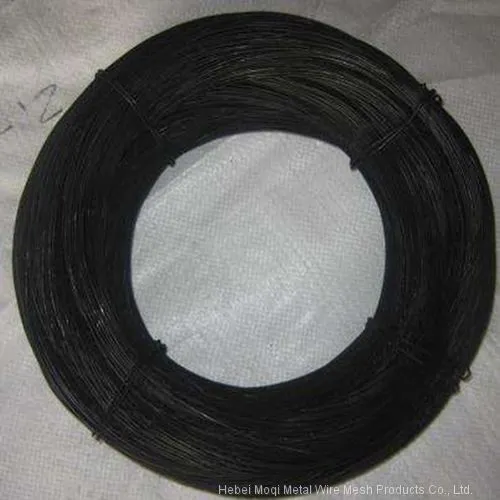

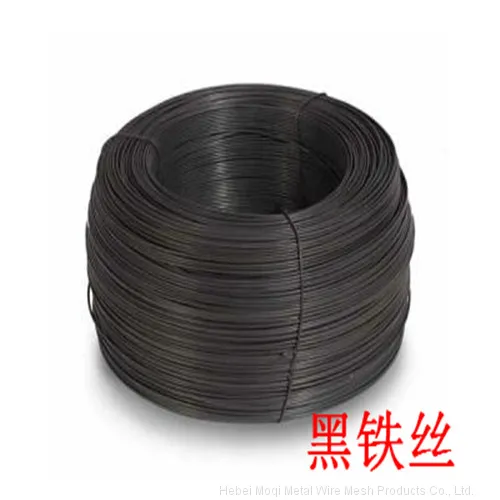

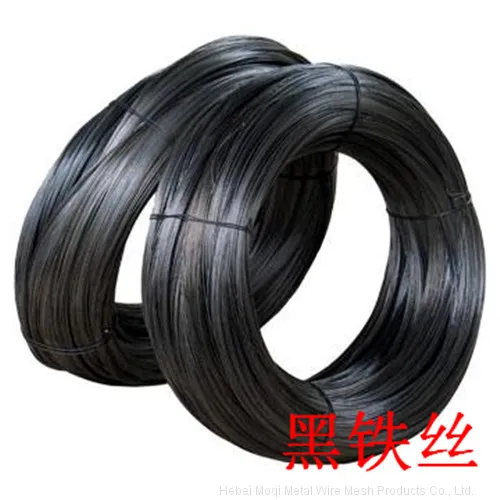

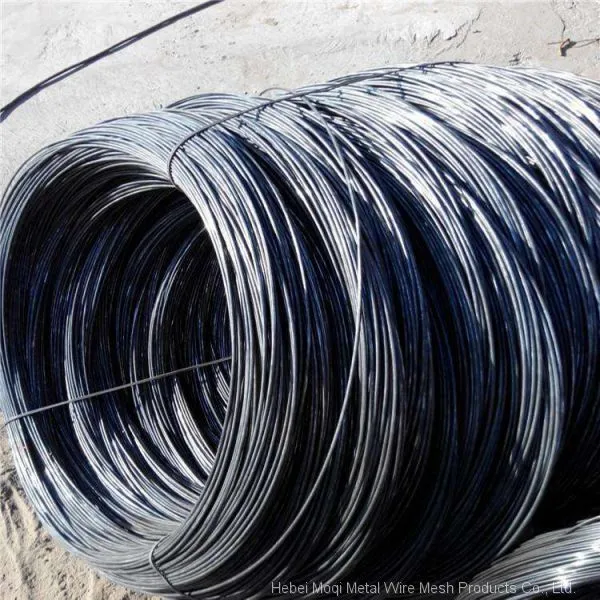

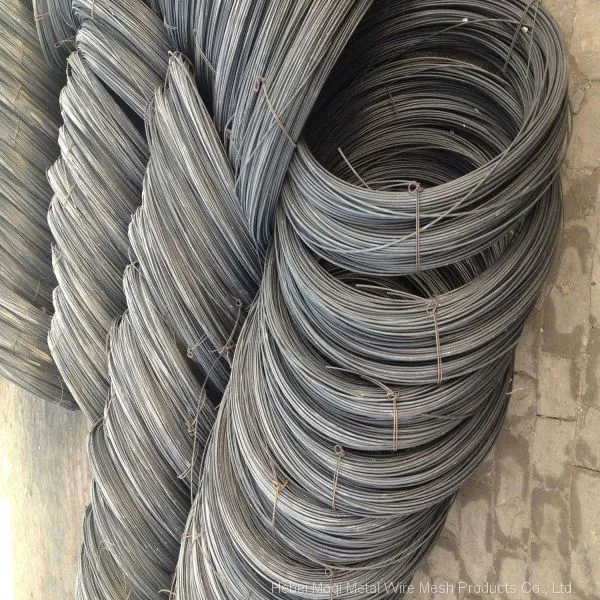

Product Show
Process :
Black iron wire includes cold drawing wire ,annealed wire and black oiled wire,all of them use the high quality wire rod which diameter is 6.5mm as raw material.
Cold drawing wire is produced through wire-drawing;annealed wire is though wire-drawing and anneal to finish.
we can do it into straight cutting wire,U type wire and also do according to users' special requirement
Roll the hot metal billet into a 6.5mm thick steel strip, that is, the wire rod, and then put it into the wire drawing device to draw the wire of different diameter, and gradually reduce the hole diameter of the drawing disk for cooling, annealing and coating. The processing technology is made into a variety of different specifications of wire. It contains ingredients: iron, cobalt, nickel, copper, carbon, zinc, and other elements.
wire gauge size |
SWG(mm) |
BWG(mm) |
metric(mm) |
8 |
4.06 |
4.19 |
4 |
9 |
3.66 |
3.76 |
- |
10 |
3.25 |
3.4 |
3.5 |
11 |
2.95 |
3.05 |
3 |
12 |
2.64 |
2.77 |
2.8 |
13 |
2.34 |
2.41 |
2.5 |
14 |
2.03 |
2.11 |
- |
15 |
1.83 |
1.83 |
1.8 |
16 |
1.63 |
1.65 |
1.65 |
17 |
1.42 |
1.47 |
1.4 |
18 |
1.22 |
1.25 |
1.2 |
19 |
1.02 |
1.07 |
1 |
Black Annealed Wire Features:
Carbon steel wire with annealed heating treatment
Soften and flexible character
Low costs and economy
Easy to handle or install
Continuous coils and uniform diameters
Various sizes and packages available upon request Ideal for binding or mesh making.
