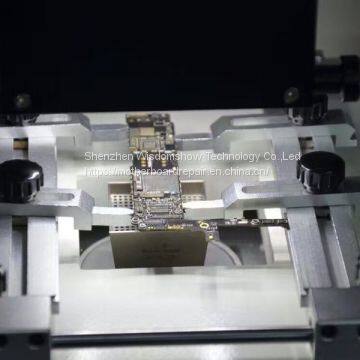

New design mobile ic repairing tools WDS-700 repair machine for cellphone

                easy  operation , 100% succeess rate

1). Auto soldering ,desoldering and mounting,don't need joystick control.

2). High resolution optical alignment system and HD camera system+3 axies micro adjust, accurate bga position.ensure preci-se mounting .

3). Many different sizes of nozzle, also can be customized .

4).2 temperature zones controlled . the upper hand lower is hot air heating , Could working independent.

5). With a powerful cross-flow and 1 external temp sensor socket.

6).High sensitive touch screen, Panasonic PLC control.

7). Alarm function and double over-temperature protection.

8). CE.ISO9001 approved .

 »»» WDS-700 Operation video:  https://youtu.be/KZ0kvf6Xkcg

  Updated system :

    Newest WDS-700 is the updated system with 5 modes.It's Remove,Mount,Weld,Manual and Semi-auto.The mode can be changed freely.It can be used under automatic,semi-auto & manual mode. mobile phone repair machine

•  Independent 2 heating zones temperature control system

  1.The upper and lower heating zone,temperature precision control within ±1℃. which can heat up at the same time from the top of he component to the bottom of the PCB;

 8 segment temperature control independently.    ic repairing tools

 2.Hot air district heating for BGA and PCB at the same time,the upper or lower temperature

zones could be used alone and combine freely the energy of up and lower heating element.

 3. Adopted high precision K-type thermocouple close-loop control and PID parameter self- setting system;

 4 .temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement

interface,curves can be analysed,set and correct on the touch screen at any time.

• Precision optical alignment system

Using high definition and adjustable CCD color optical alignment system,beam split,

amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition LCD monitor.

• Multi-functional and humanized operation system

 1. Adopting the HD touch human-machine interface;upper heating head and mounting head

 designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degreefor easy installation and replacement.

 2. X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach

±0.01mm.

• Superior safety protection function

    With the alarm function, after the BGA welding the machine can alarm by itself.In the case of

temperature abuse, the circuit can power off automatically with the double over-temperature

protection.Temperature parameter having password protection to prevent any modification.

WDS-700 Packing

 Pre-Sales Service:

Why Choose Wisdomshow bga  repair machine?

1. R&D Capacity: R&D Engineers in the company. Years of manufacturering experience!
2. Quality Control Management: All production lines have adequate quality control and QA/QC inspectors work independently from the production line!
3. Production Capacity: Annual production capacity: 320,000 sets, 3, 000 square meters factory!
4. On the other side: Srict Supplier Management, Perfect After Sales Service, forein trading employees 24hours/7days serve!

How to get WDS-700 motherboard repairing machine ?

1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
