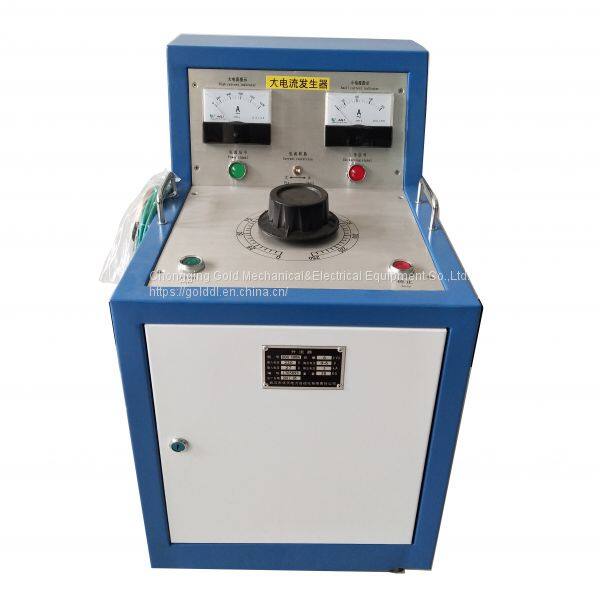

SLQ Primary current injection test set for current transformer tester
Introductions
SLQ primary injection test set is a high current generator instrument.
It is applied in current transformer test , circuit breaker test and so on.
Technical index
Primary Current Injection Tester
Type |
Capacity (kva) |
Power supply |
Output |
Impedance voltage % |
Idle current % |
mode |
||
I(A) |
V(V) |
I(A) |
V(V) |
|||||
SLQ-5/500 |
3 |
13.6 |
220 |
500 |
5 |
>8 |
>6 |
single |
SLQ -5/1000 |
5 |
22.7 |
220 |
1000 |
5 |
>8 |
>6 |
single |
SLQ -10/2000 |
10 |
46 |
220 |
2000 |
5 |
>8 |
>6 |
Separated |
SLQ -12/4000 |
12 |
30 |
400 |
2000/4000 |
6/3 |
>8 |
>6 |
Separated |
SLQ -15/5000 |
15 |
37.5 |
400 |
2500/5000 |
6/3 |
>8 |
>6 |
Separated |
SLQ -150/25kA |
150 |
375 |
400 |
25000 |
6 |
>8 |
>6 |
Separated |
Environment temperature: 0~50°C
Humidity: ≤85%RH
Our company has become one of the leading manufacturer of petroleum testing instrument and electrical testing instrument since 2009s’.
We have developed sales channels in many countries such as Malaysia,India,Germany,USA,Mexico,Saudi Arabia,South Africa and other countries worldwide. and we have gained great advantage and high reputation in international market.
We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity.Client,quality and service are our supreme target.
Pre-sale Service:
Inquiry will be replied within 24 hours.
Welcome to visit our factory.
Technical datas and operation manual sent for evaluation.
After-sale Service:
Training how to instal the machine, training how to use the machine at our factory;
Engineers available to service machinery overseas at customers' cost;
