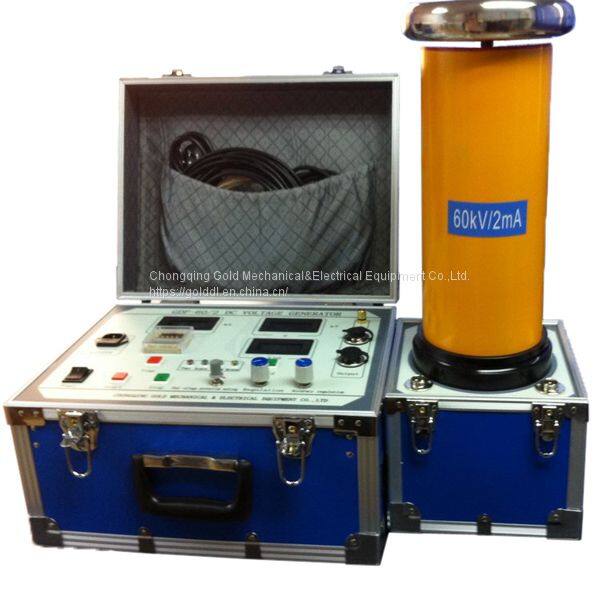

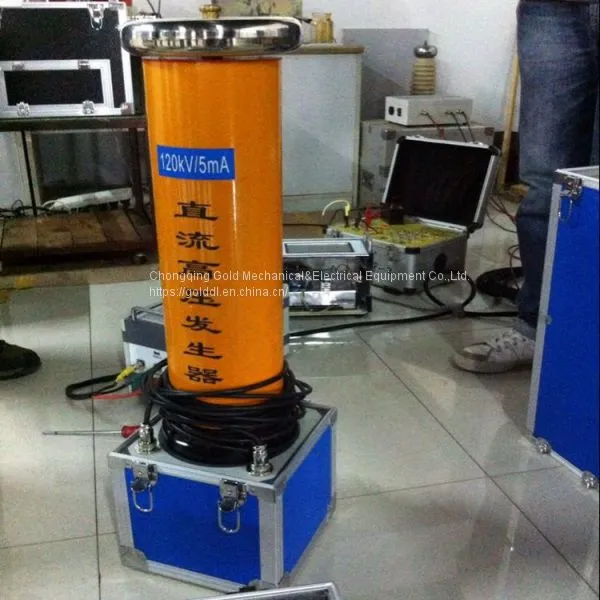

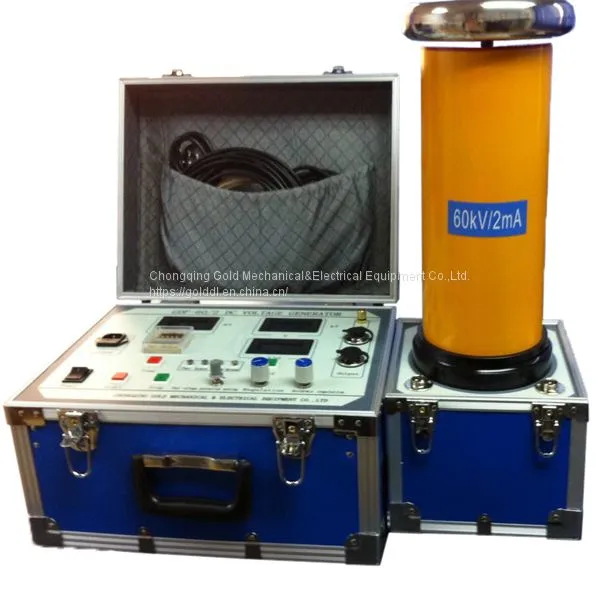

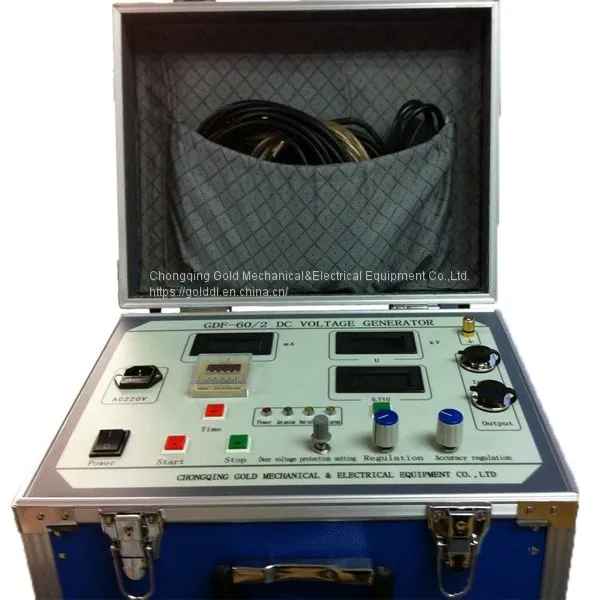

GDF Series hipot tester equipment,DC high voltage generator
GDF DC high voltage generator is DC high voltage power supply equipment which is applied in power cable test and arrester test in power system.
| GDF DC high voltage generator for power cable test and arrester test | ||||||
|
Model Item |
GDF-60/2 |
GDF-120/2 |
GDF-120/5 |
GDF-200/2 |
GDF-300/2/3 |
GDF- 200/400/2 |
Output Voltage |
60kV |
120kV |
120KV |
200kV |
300kV |
200 / 400kV |
Output Current |
2mA |
2mA |
5mA |
2mA |
2 mA/3mA |
4 mA/ 2mA |
Output Power |
120W |
240W |
600W |
400W |
600W/900W |
800W |
HV unit size |
145×500(mm) |
145×800 (mm) |
140×800 (mm) |
145×1000 (mm) |
145×1300 (mm) |
145×1200 (up,down) |
Control unit size |
360×260×245(mm)(L×W×H) |
|||||
Total weight |
10kg |
15kg |
17kg |
20kg |
25kg |
40kg |
Ripple coefficient |
||||||
Environment condition: Temperature: 0~50℃
Humidity: ≤ 80%RH

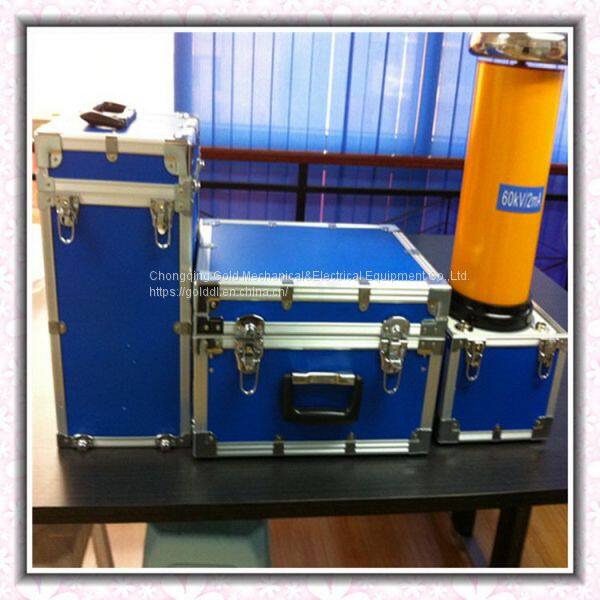

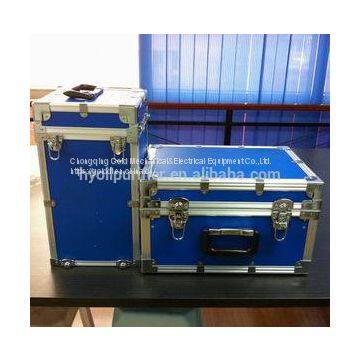

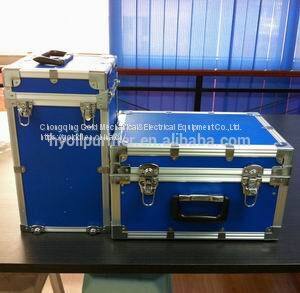

Packing of DC high voltage generator
Our company has become one of the leading manufacturer of petroleum testing instrument and electrical testing instrument since 2009s’.
We have developed sales channels in many countries such as Malaysia,India,Germany,USA,Mexico,Saudi Arabia,South Africa and other countries worldwide. and we have gained great advantage and high reputation in international market.
We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity.Client,quality and service are our supreme target.
Pre-sale Service:
Inquiry will be replied within 24 hours.
Welcome to visit our factory.
Technical datas and operation manual sent for evaluation.
After-sale Service:
Training how to instal the machine, training how to use the machine at our factory;
Engineers available to service machinery overseas at customers' cost;
