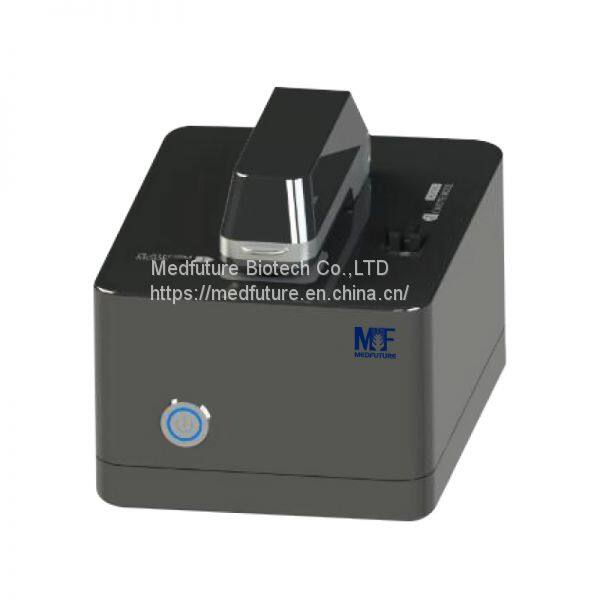

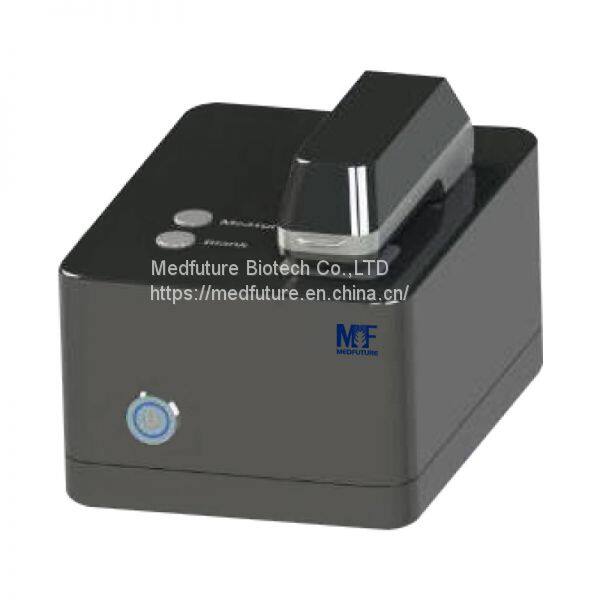

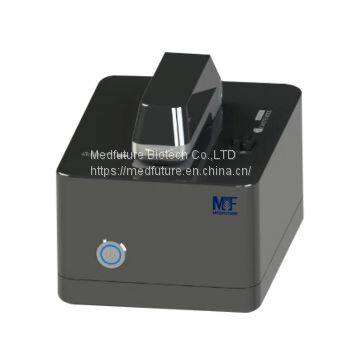

Portable Micro-Volume UV/VIS Spectrophotometer for Laboratory
US$ 1600 - 3600
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Medfuture
Place of Origin:
China
Model Number:
MF-MUV1000
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
10 days
Related Products
-
Micro-Volume UV/VIS SpectrophotometerUS$ 4000 - 5500MOQ: 1 Set -
High Precision MF-SZM45 Stereo Zoom Microscope for LaboratoryUS$ 200 - 400MOQ: 1 Set
-
Testing Equipment MF-FS93 Fluorescence Spectrophotometer for LaboratoryUS$ 5000 - 6000MOQ: 1 Set
-
MF-FS93 Fluorescence SpectrophotometerUS$ 1000 - 2000MOQ: 1 Set
-
MF-FS97series Fluorescence Spectrophotometer for LaboratoryUS$ 2000 - 3000MOQ: 1 Set
Brand Name
Medfuture
Place of Origin
China
Model Number
MF-MUV1000
Size
200*130*136
Weight
2.5/5Kg
Measurement Range
1mm/0.2mm
Wavelength Range
190~1100nm
Focal Length
190~850nm
Micro-Volume UV/VIS Spectrophotometer
Application:
Micro-Volume Spectrophotometer is used for quantitative and qualitative research by spectrophotometry. It is usually used in quantitative research of nucleic acid, proteins and bacterial concentration.
Features:
* Microscale sample test, minimum 0.5 ul.
* Ultramicro and cuvette dual platform (Only for MF-MUV2000).
* Wide test area, 100 times of the traditional spectrophotometer.
* Most samples don’t need dilute.
* Test directly without warming up, do not need detection container, lower daily consumption.
* PC control, more accurate and flexible.
Technical Parameters:
| Model | MF-MUV1000 | MF-MUV2000 |
| Minimum Sample Capacity | 0.5ul | |
| Ultromicro Optical Distance | 1mm/0.2mm | 1mm/0.2mm/0.05mm |
| Cuvette Optical Distance | / | 10mm/5mm/2mm/1mm |
| Whole Wavelength | 190~1100nm | |
| Scanning Wavelength | 190~850nm | |
| Wavelength Accuracy | 1nm | |
| Wavelength Resolution | ≤0.3nm（FWHM @ Hg 253.7nm） | |
| Absorbance Accuracy | 2%（0.76 @ 257nm） | |
| Absorbance Resolution | 0.002Abs（1mm） | |
| Absorbance Area | 0.02～80 (10mm) | 0.005～80 (10mm) |
| Test Accuracy | 0.1～5 Abs.±0.1 Abs, 5～80 Abs. ±2% | 0.01～0.5 Abs. ±0.01Abs 0.5～80 Abs. ±2% |
| Test Time | 5s | |
| Detector | 3648 pixel linear CCD array | |
| Light Source | Import xenon lamp | |
| Sample Test Platform Material | 304 stainless steel and quartz | |
| Standard Accessories | Driver software CD 1 pc, Power line 1 pc, Power Adapter 1 pc | |
| Power Supply | AC 110/220V±10% , 50/60Hz | |
| Consumption | 24W | |
| External Size（W*D*H）mm | 200*130*136 | |
| Packing Size（W*D*H）mm | 310*310*310 | |
| N.W/G.W(kg) | 2.5/5 |
|
