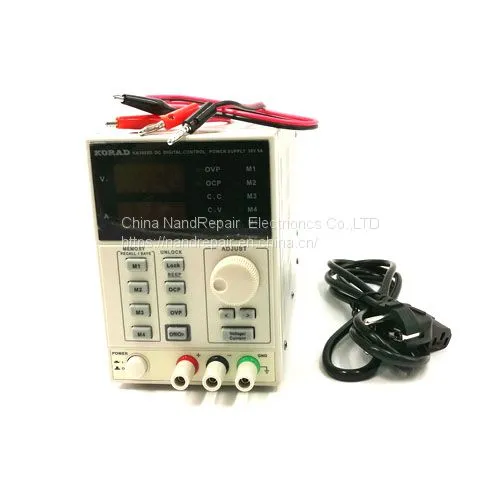

KORAD KA3005D 30V 5A Precision Variable Adjustable DC Power Supply 220V/110V
Professional power supply design with intuitive operability. Simple and intuitive operation, fast and accurate selection of voltage and current can be realized.
To prevent damage to the load Can be set to the value of over-voltage protection and over-current protection to prevent the voltage regulator from beyond the threshold can The keyguard lock panel buttons to prevent undesirable results in the key test engineering
user-programmable preset settings
Just press the button to recall and save area a key to bring up the user to store the data and save user settings
KORAD KA3005D Features :
1. 30V/5A full digital power control single
2. 10mV/1mA high accuracy and resolution
3. Low noise and ripple
4. CV/CC given voltage and constant current mode
5. Highly reliable OCP, OVP, arbitrarily set protection
6. Built-in set of parameters stored
7. Outputs a switch control
8. Power and memory function
9. Keypad lock to prevent misuse
10. Intelligent temperature control fan, effectively reduce the noise
11. Easy alternative to traditional digital power
KA3005D Operating Conditions:
Input voltage: 220V +/-10%
Frequency range: 50- 60Hz
Operating temperature: 32-104 F (0-40 ºC)
Operating humidity: Storage temperature: 32-158 F (0-70 ºC)
Storage humidity:
Stable Voltage:
Output Voltage Range: 0-30V Continuously adjustable
Setup Resolution: 10 mV
Setup Accuracy: Ripple: Read back Accuracy: 10 mV
Temp. Coefficient: Read back Temp. Coefficient:
Stable Current:
Output Current Range: 0-5A Continuously adjustable
Setup Resolution: 1 mA
Setup Accuracy: Ripple: Read back Accuracy: 1 mA
Temp. Coefficient: Read back Temp. Coefficient:
Package includes :
1 x KORAD KA3005D 0-30V 0-5A Adjustable DC Power Supply
1 x Full accessories set as the following pictures show
