Help CenterMPPT Epsolar Charge Controller Tracer Tracer 1210AN Tracer 2210AN Tracer 3210AN Tracer 4210AN
Related Products
-
Solar Mc4 Connector Female Male Pair Solar Panel ConnectorUS$ 0.5 - 0.9MOQ: 100 Pairs -
Solar Mc4 T-branch Connector Mmf Ffm Parallel ConnectionUS$ 3.1 - 4.2MOQ: 100 Pairs
-
Solar Mc4 Crimping Tool Panel Mc4 Tools KitUS$ 30 - 50MOQ: 5 Pieces
-
MPPT Epsolar Charge Controller Tracer Tracer 1210AN Tracer 2210AN Tracer 3210AN Tracer 4210ANUS$ 120 - 150MOQ: 2 Pieces
-
High Quality 48v 15a Mppt Solar Charge ControllerUS$ 20 - 40MOQ: 3 Units
Item |
Tracer 1210AN |
Tracer 2210AN |
Tracer 3210AN |
Tracer 4210AN |
Nominal system voltage |
Nominal system voltage |
|||
Nominal system voltage |
10A |
20A |
30A |
40A |
Rated discharge current |
10A |
20A |
30A |
40A |
Battery voltage range |
9V~32V |
|||
MPP Voltage range |
VBAT +2V~90V |
|||
Max. PV VOC |
100V |
|||
Max. PV input power |
130W/12V 260W/24V |
260W/12V 520W/24V |
390W/12V 800W/24V |
520W/12V 1040W/24V |
Self-consumption |
||||
Temperature compensate coefficient |
-3mV/°C/2V(Default) |
|||
Communication |
RS485(RJ45 interface) |
|||
LCD temperature range |
-20°C~+70°C |
|||
Ambient temperature range |
-25°C~+45°C |
|||
Storage temperature range |
-35°C~+80°C |
|||
Humidity range |
≤95% (N.C.) |
|||
Enclosure |
IP30 |
|||
Dimension |
172mmx139mmx44mm |
172mmx139mmx44mm |
228mmx164mmx55mm |
252mmx180mmx63mm |
Mounting dimension |
130mmx130mm |
130mmx130mm |
170mmx164mm |
210mmx171mm |
Power cable |
4mm2 |
10mm2 |
10mm2 |
10mm2 |
Weight |
0.6kg |
1.1kg |
1.2kg |
1.9kg |

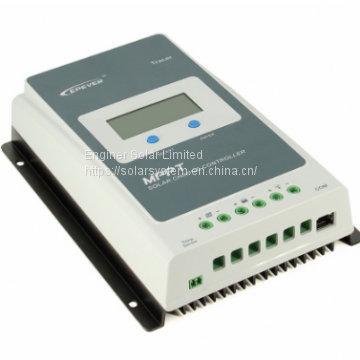

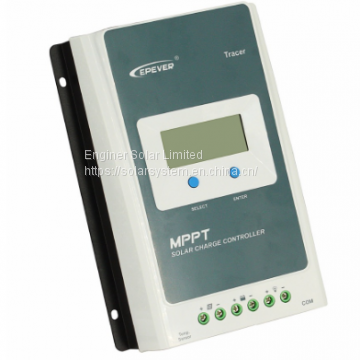

Picture |
|
|
|
|
