Details for high quality China supplier OEM Perfect After-Sale Service Grade 200series, 300series, 400 series Stainless Steel Pipe /Tube.
1.Standard:API 5CT
2.Finish: passive pickling and polish, etc.
3.Material: stainless steel 304 304L,316,316L, Carbon steel K55,J55,N80,H40,P110,Q235, etc.
4.Size: OD 6mm-508mm
5.Wall thickness: 1mm-24mm
6.Length: R1,R2,R3, or as per customer's requirement
7.Connection Type: STC,LTC,BTC,NUE,EUE, Plain, Flange (manufactured according to API 5CT standard)

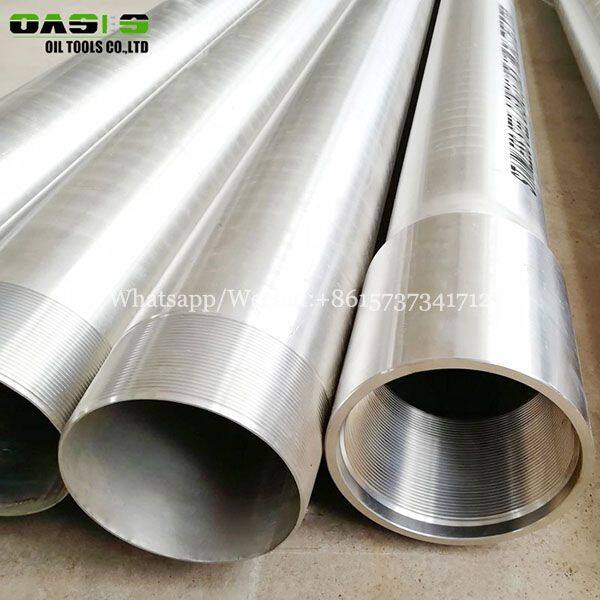

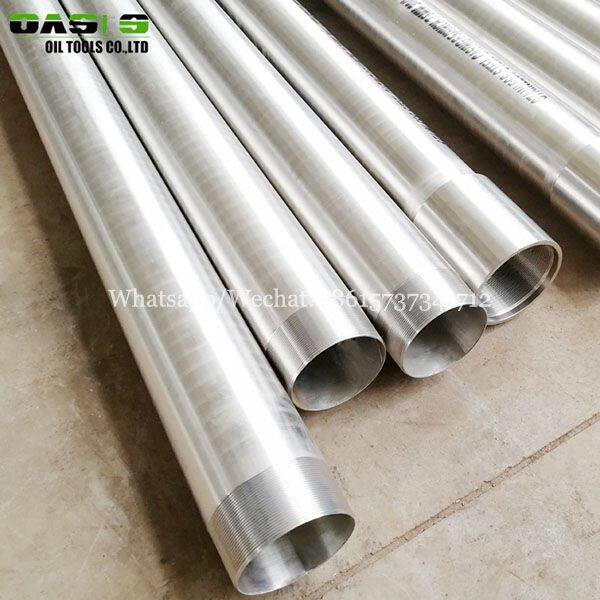

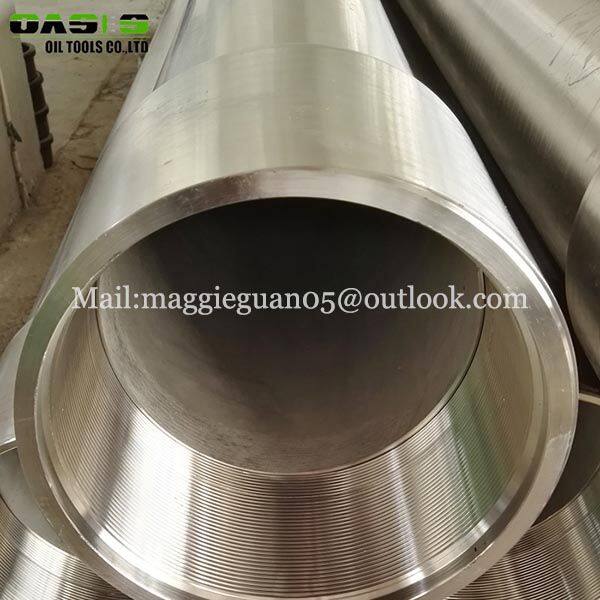

Photo details: 9 5/8" API spec 5CT Premium thread oil casing steel pipe:

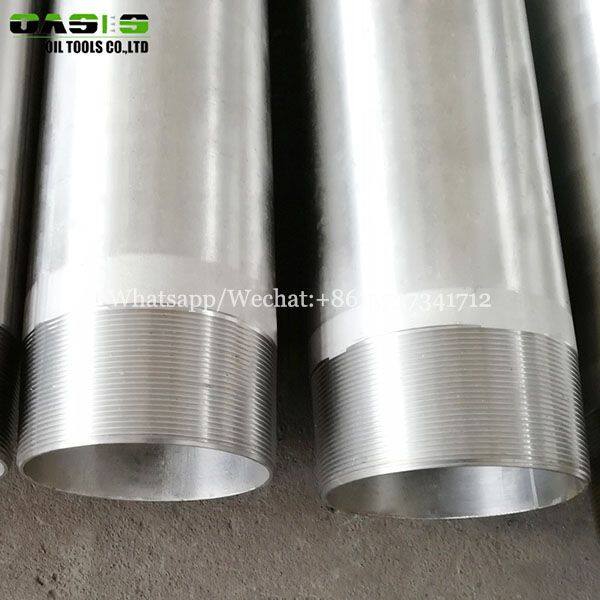

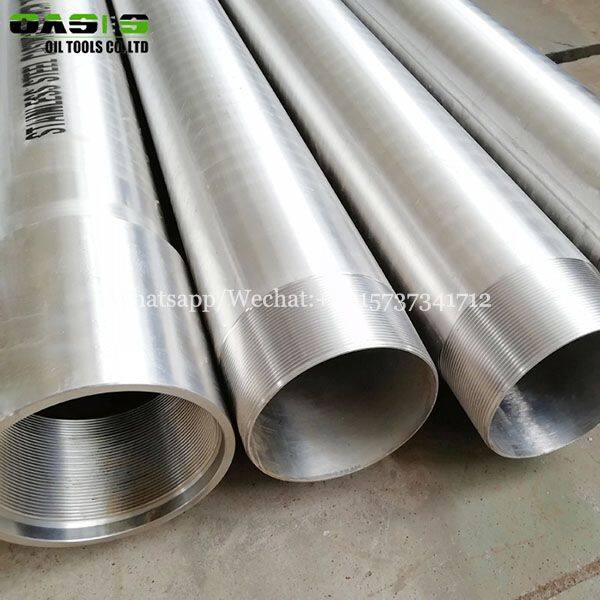

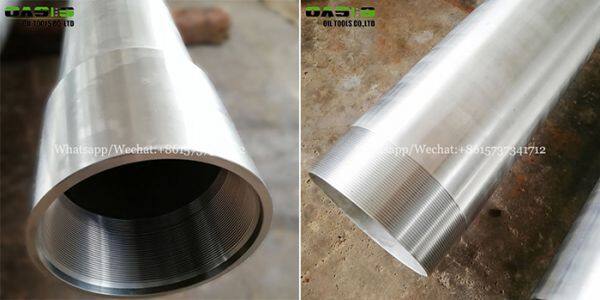

Connection way:

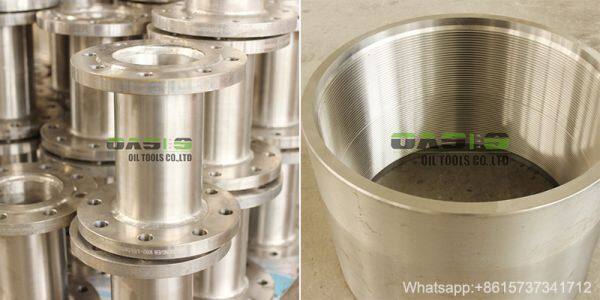

BTC, LTC, STC, PLAIN, EUE, NUE, FLANGE:

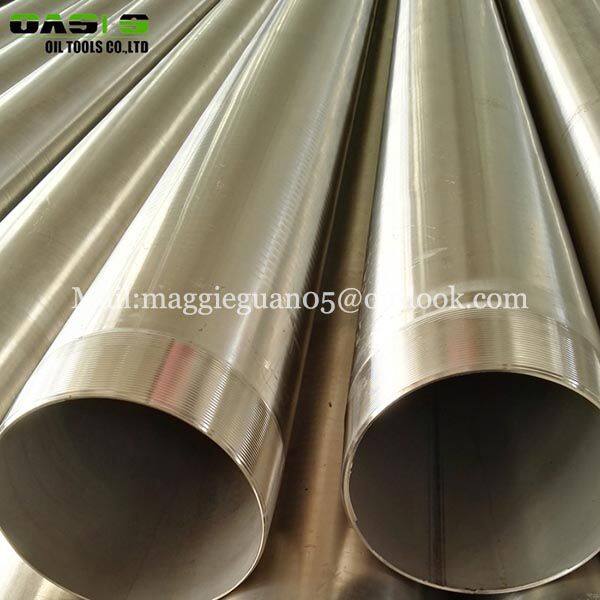

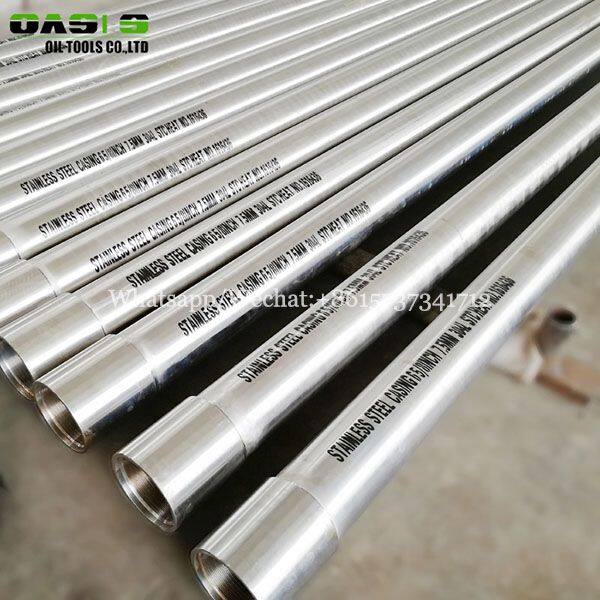

Pipe body and surface polishing details show:
ASTM A312 Seamless 304 316 Stainless Steel Casing Pipe:
Seamless Inox 316 stainless steel casing pipe is used to stabilize the well, in order to make sure that the whole well can work smoothly. We also can design and produce casing and tubing of stainless steel series for our clients especially .
API/ISO stainless steel casing and tubing material: 304,304L,316,316L,310S,duplex stainless steel,etc
API/ISO stainless steel casing and tubing size: 2 3/8inch - 20inch
We also can manufacture other special connection type according to clients' requirement.
Specifications form:
Size |
Weight |
Steel grade |
Wall thickness |
||
in |
mm |
ppf |
kg/m |
mm |
|
4-1/2 |
114.30 |
11.60 |
17.26 |
SS304/304L/316/316L |
6.35 |
13.50 |
20.09 |
7.37 |
|||
5 |
127.00 |
15.00 |
22.32 |
SS304/304L/316/316L |
7.52 |
18.00 |
26.79 |
SS304/304L/316/316L |
9.29 |
||
21.40 |
31.85 |
11.10 |
|||
5-1/2 |
139.70 |
17.00 |
25.30 |
SS304/304L/316/316L |
7.72 |
20.00 |
29.76 |
SS304/304L/316/316L |
9.17 |
||
23.00 |
34.23 |
10.54 |
|||
7 |
177.80 |
23.00 |
34.23 |
SS304/304L/316/316L |
8.05 |
26.00 |
38.69 |
9.19 |
|||
29.00 |
43.16 |
SS304/304L/316/316L |
10.36 |
||
9-5/8 |
244.48 |
43.50 |
64.74 |
SS304/304L/316/316L |
11.05 |
47.00 |
69.94 |
11.99 |
|||
10-3/4 |
273.05 |
40.50 |
60.27 |
SS304/304L/316/316L |
8.89 |
51.00 |
75.90 |
SS304/304L/316/316L |
11.43 |
||
13-3/8 |
339.73 |
54.50 |
81.80 |
SS304/304L/316/316L |
9.65 |
68.00 |
101.19 |
SS304/304L/316/316L |
12.19 |
||
16 |
406.40 |
65.00 |
96.73 |
SS304/304L/316/316L |
9.53 |
75.00 |
111.61 |
11.13 |
|||
18-5/8 |
473.10 |
87.50 |
130.21 |
SS304/304L/316/316L |
11.05 |
20 |
508.00 |
94.00 |
139.89 |
SS304/304L/316/316L |
11.13 |
106.50 |
158.49 |
12.70 |
|||

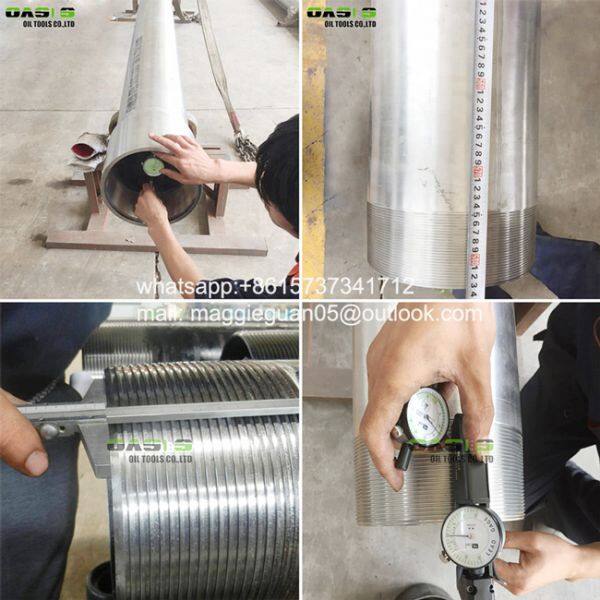

Quality Test:
*The chemical composition of material will be tested and will provide the MTC.
*All dimensions checked by our quality inspector, if required, they also can be inspected by Third Party Inspections like BV, SGS or representative appointed by buyer. The test report or certificate can be provided.
*The Casing will do the hydraulic test.
*If required, the surface of casings can be painted or hot galvanized. The special marks on the casing surface also can be acceptable.
*Pre-shipment Inspection can be arranged and the container can be sealed by third party inspection agent.

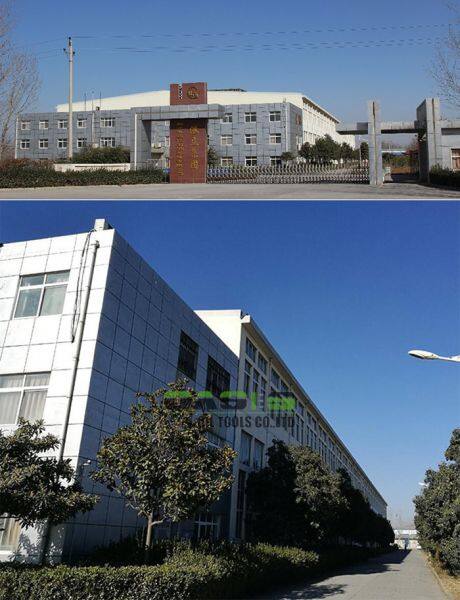

Company Information:
Oasis Oil Tools Co.,LTD, located in the industrial park of high-tech enterprises in Fengquan District, Xinxiang City, covers more than 20000 square meters with more than 150 staff, among them 6 persons are senior engineer. OASIS is a famous manufacturer which integrates the research and development, design, manufacture and sell water well screens/ Johnson screens, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens, perforated pipe (base pipe), gravel pre-packed well screens, wedge wire screens, passive water intake screens etc. water, oil and gas well filtering products as well steel tubes and pipes and industrial parts.
Oasis has the right to export well screens independently. Our water well screens have been exported to Russia, Sudan, Tunisia, Morocco, Saudi Arabia, Slovenia, Indonesia, Philippines, Vietnam, Canada, Bolivia, Ecuador, Columbia etc. Countries, and have received good feedback from customer at domestic and abroad.
Contact:
If you are satisfied with our Seamless 304 316 Stainless Steel Casing Pipes and willing to know precise price and more information, the following questions is appreciated:
1, What's the material you are going to deal with, stainless steel 304,304L,316,316L?
2, What's the OD, length? Diameter from 30-600mm,length from 1-6m
3, What's the thickness of stainless steel seamless casing pipes? Usually it is depends on your well depth.
The tensile strength is important for the casing pipes and each pipe will be tested before delivery.
4,We support you consider transportation too.
5, What's the connection way, bevelded, threads, plain ends or flange?
If you are interested in our Seamless Inox 316 Stainless Steel casing pipe,please do not hesitate to contact with Maggie.
