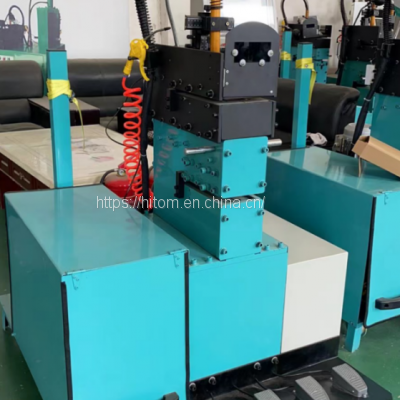

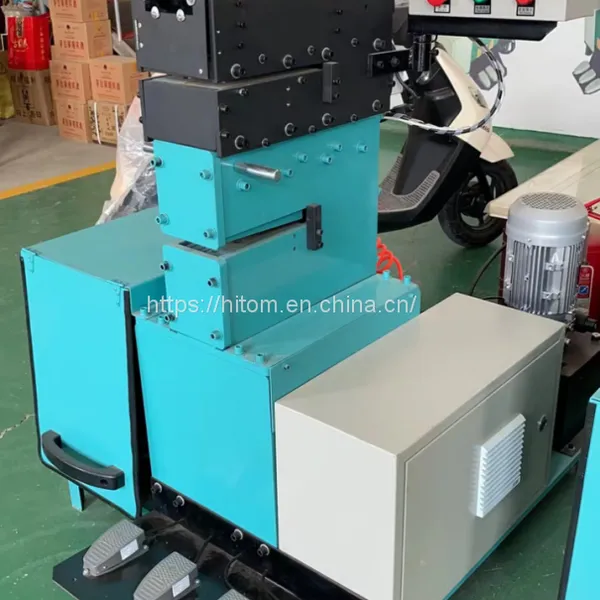

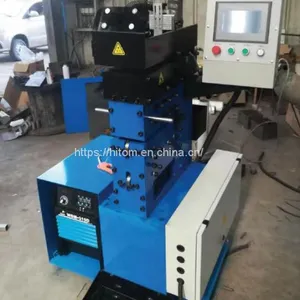

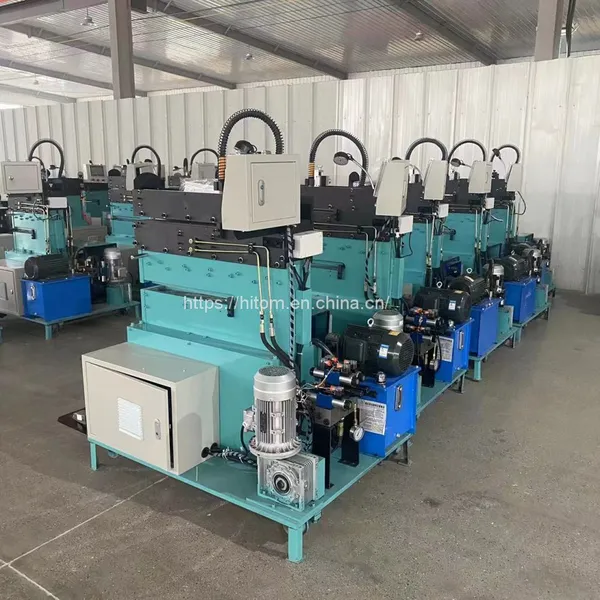

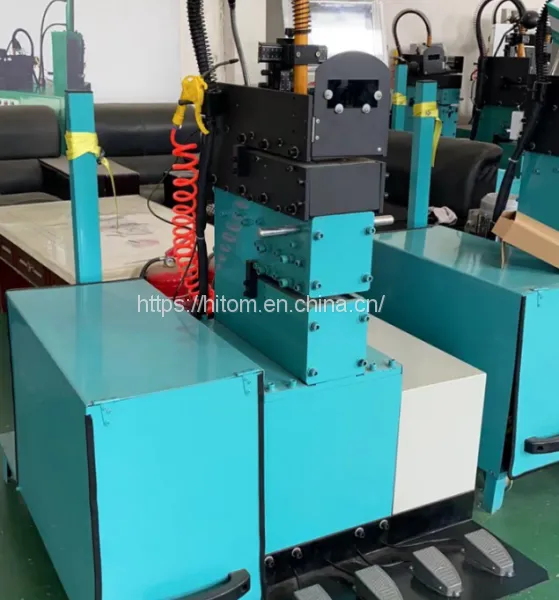

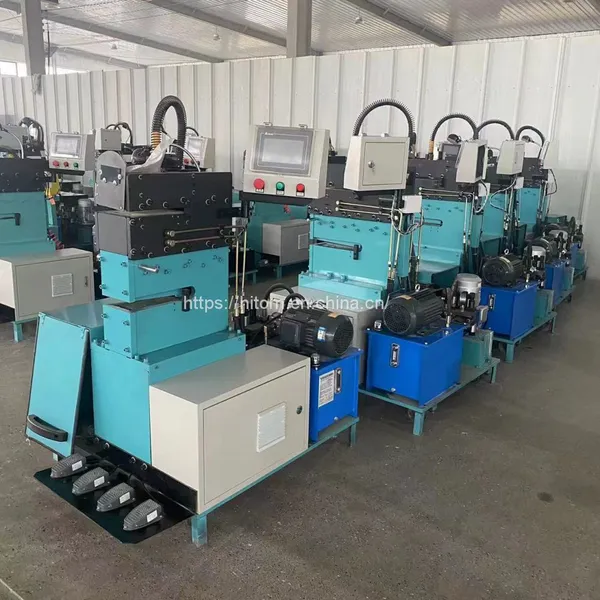

Help CenterTIG Shear & End Welder Tip and Tail Welder Shear & Butt Welder Strip Coil Joiner
Related Products
-
Leveling MachineUS$ 50000 - 100000MOQ: 1 Set -
Steel Pipe Straightening Machine StraightenerUS$ 50000 - 150000MOQ: 1 Set
-
Steel Pipe End Facing & Beveling MachineUS$ 50000 - 150000MOQ: 1 Set
-
Metal Broom Handle Tube Production LineUS$ 100000 - 150000MOQ: 1 Set
-
Round/Square/Rectangle Hollow Section Pipe Profile Shape Making LineUS$ 100000 - 300000MOQ: 1 Set

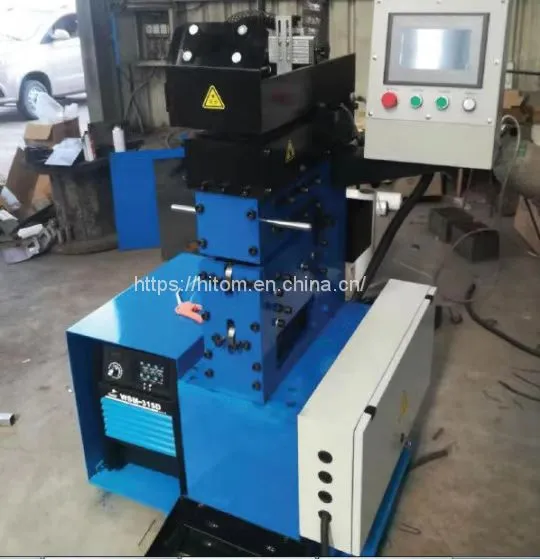

Shear & end welder is becoming an essential equipment in tube mill line or other coil processing line. Shear & end welder will greatly reduce scrap, tooling damage, downtime and safety hazards. Another big benefit for utilizing shear & end welder is the reduction of time spent during the coil change.
Global machinery designs and manufactures stationary shear end welder machine that comes in various design from semi-automatic to fully automatic. The operation starts by jogging the tail end into shearing position. Then the strip is edge guided automatically or manually for centering adjustment. The tail end is then clamped and sheared. The lead end of the new coil is fed into position, edge guided, clamped and sheared. The sheared scrap can be removed manually or automatically. After shear process is done, the weld torch is initiated, joining the two coils end together. After welding, the machine is reset for the next work cycle. TIG or MIG weld process is applied that have proven to be the best and most cost-effective welding for tube making industry. The automatically driven weld torch allows for a smooth and consistent weld bead across the seam of material.
Highlights
Reduction of coil changeover time for a significant increase in work efficiency
Great reduction in tooling damage, scrap, and safety hazards
Latest technology to keep machine up and running at its full capacity
Increased tensile capacity of weld seam by angel shear design
Fully automatic machine with PLC control, minimum work cycle time, and easy operation
Smooth and high-hardness weld seam by automatic TIG weld processing, with no need for grinding
Communication with uncoiler, leveler and accumulator, realizing one-man operation for the complete entry line section
Model No. |
Strip Width (mm) |
Strip Thickness (mm) |
Cycle Time (min) |
Welding |
JH32 |
40 – 120 |
0.6 – 1.6 |
≤ 1.5 |
TIG |
JH50 |
60 – 200 |
1.0 – 3.5 |
≤ 1.5 |
TIG |
JH76 |
100 – 260 |
1.2 – 3.75 |
≤ 2 |
MIG |
JH89 |
100 – 300 |
1.2 – 4.0 |
≤ 2 |
MIG |
JH114 |
120 – 400 |
2.0 – 5.0 |
≤ 3 |
MIG |
JH165 |
160 – 520 |
2.5 – 7.0 |
≤ 3 |
MIG |
JH219 |
240 – 700 |
3.5 – 8.0 |
≤ 4.5 |
MIG |
JH273 |
320 – 900 |
4.0 – 10.0 |
≤ 5 |
MIG |
JH325 |
300 – 1100 |
5.0 – 12.7 |
≤ 6 |
MIG |
JH406 |
600 – 1300 |
6.0 – 14.0 |
≤ 7 |
MIG |
JH508 |
700 – 1650 |
6.0 – 16.0 |
≤ 8 |
MIG |
JH630 |
900 – 2000 |
6.0 – 22.0 |
≤ 9 |
MIG |
JH660 |
900 – 2200 |
6.0 – 23.0 |
≤ 9 |
MIG |
JH711 |
900 – 2400 |
8.0 – 25.0 |
≤ 10 |
MIG |
