Today, high frequency (HF) welding technology has been widely applied in tube mill line for tube welding process. We provide Solid state HF induction welders that ensure a good welding integrity for the end product to survive and meet quality standards in its final application or fabrication requirements.

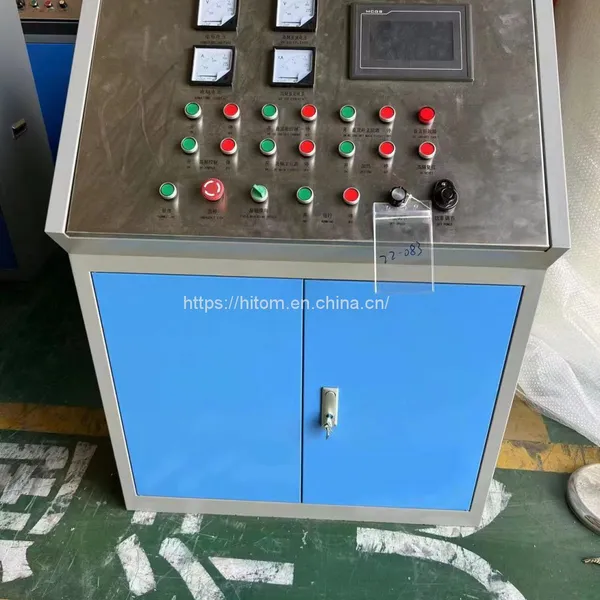

The working principle behind HF induction welding is not that complicated. An induction coil connected to high frequency power supply encompasses the formed tube profile, to induce a high frequency current in the pipe profile. Leveraging the skin effect and proximity effect of high frequency current, the induced electricity is concentrated onto the bonding surface of the tube profile fringe. The resistance of metal itself heats up the profile fringe quickly up to welding temperature. The heated fringe are pressed together and welded by squeezing rolls. The high frequency welder offered by Global Machinery is armed with a complete automation control system. With advanced PLC processing technology, the machine enable a smooth adjustment in stepless mode, output power in a wide range, as well as stabilizing the voltage of main circuit by closed loop feedback control. The current overload is monitored constantly with PLC to ensure a reliable protection.
Highlights
Weld integrity to meet high application standard
Modularized design enabling compact structure, easy maintenance, and high power utilization
Reduce coil changeover time to minimum
Equipment safety guaranteed by over-current protection technology
Improved welding efficiency and reduced technical adjustment time
Applicable to a variety of types of material produced on tube mill
Maximum hroughput and minimum scrap achieved by offering high uptime and high consistent quality
Please inform the pipe size and thickness you produce, we can recommend suitable model for you. Below models are for your reference.
Model |
Steel pipe size |
pipe |
GGP-60/0.8-HC |
OD：φ6~φ20mm |
round/square/rectangle/profile |
GGP-100/0.45-HC |
OD：φ16~φ45mm |
round/square/rectangle/profile |
GGP-150/0.4-HC |
OD：φ20~φ60mm thickness：0.8~2.0mm |
round/square/rectangle/profile |
GGP-200/0.35-HC |
OD：φ45~φ76mm |
round/square/rectangle/profile |
GGP-250/0.3-HC |
OD：φ45~φ89mm |
round/square/rectangle/profile |
GGP-300/0.3-HC |
OD：φ50~φ114mm |
round/square/rectangle/profile |
GGP-400/0.25-HC |
OD：φ114~φ156mm |
round/square/rectangle/profile |
GGP-500/0.2-HC |
OD：φ165~φ219mm |
round/square/rectangle/profile |
GGP-600/0.2-HC |
OD：φ219~φ273mm |
round/square/rectangle/profile |
GGP-700/0.2-HC |
OD.：φ325~φ508mm |
round/square/rectangle/profile |
GGP-800/0.2-HC |
OD：φ325~φ610mm |
round/square/rectangle/profile |
GGP-1000/0.2-HC |
OD：φ325~φ610mm |
round/square/rectangle/profile |
GGP-1200/0.2-HC |
OD.：φ325~φ610mm |
round/square/rectangle/profile |
GGP-1500/0.15-HC |
OD.：φ325~φ610mm |
round/square/rectangle/profile |
GGP-1800/0.15-HC |
OD：φ325~φ610mm |
round/square/shaped |
