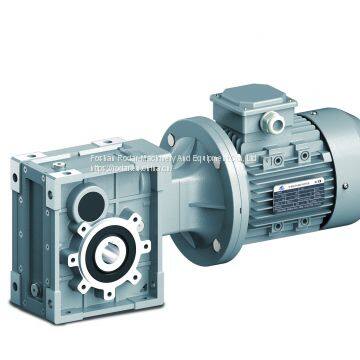

Help CenterRodar Type High Efficiency Low Noise Speed Reducer/helical Geared Motor/industrial Gearbox
Related Products
-
Rodar Type High Efficiency Low Noise Speed Reducer/helical Geared Motor/industrial GearboxUS$ 1 - 1000MOQ: 1 Set -
Speed ReducerUS$ 1 - 1000MOQ: 1 Set
-
Speed Reducer Indusrtial GearboxUS$ 1 - 1000MOQ: 1 Set
-
High Efficiency and Longer Service Life Speed ReducerUS$ 10 - 1000MOQ: 1 Set
-
High Performance and Effifiency Helical Gear Unit Speed ReducerUS$ 1 - 100MOQ: 1 Set
R/F/K/S series hard tooth flank gear reducer is characterized by compact structure, light weight, large torque and excellent performance.
As a new reducing transmission system, it’s advantaged in design and manufacture on the basis of the modulized combination, which can meet client’s requirement on connection & installation.
Prompt delivery within short time.Made of rib-reinforced rigid case,premium alloy-steel gear hat’s hardened by carbon penetration and grinded precisely.
Stable in running,low in noise,large in load,low in consumption,efficient transmission,low in temperature rise,and long in service life.
Technical data
Input power |
0.12 - 200 Kw |
ratio |
5.36-17550 |
output torque |
up to 50000 N. M |
Material introduction
Housing material |
Apply 250# casting iron and high precision production process. |
Housing hardness |
HBS90-240 |
Gear material: |
20CrMnTi |
Surface hardnesss of gear |
HRC58°-62° |
Gear core hardness |
HRC33°-40° |
Input/Output shaft material |
Apply HRB bearing or bearing of the same precision. |
|
Input/Output shaft hardness Shaft at oil seal postion hardness |
HBS241°-286° HRC48 ° -55 ° |
Heat treatment |
tempering, cementing, quenching etc |
Efficiency |
up to 98% |
Noise(Max) |
60-68dB |
Tem.rise: |
40°C |
Vibration |
≤20um |
Backlash |
≤20Arcmin |
Oil seal brands |
SHELL. |
Oil: |
Apply SHELL S2G 220#Lubricant, leakage free and 1-3years maintenance free. |
Motor |
IP55, F class |
Motor shaft |
40Cr, Tempering, cementing,quenching etc. |
Color |
Blue/Silver Or On Customer Request |
Terminal box |
Apply IP55 alumina alloy terminal box,dust proof. |
Warranty: |
12 months |
Packing |
Standard export wooden case per set or based on customer's request. |
Usage |
Industrial Machine: food stuff, Ceramics,chemicalL,Packing,Dyeing, |
IEC Flange: |
|
